Product name: | Ethernet Gigabit Media Converter | Power supply: | DC 5~15V (Type C) |
---|---|---|---|
Dimension: | 78 x 27 x 18 mm | Power: | 3W |
Weight: | 46g | Temperature: | -40-70℃ |
Overview
LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts
advanced switching technology and complies with IEEE802.3, IEEE802.3u, IEEE802.3z
and IEEE802.3ab standards. It supports the conversion between 10Base-T/100Base-TX/1000Base-T
and 100/1000Base-X, and realizes the conversion between electrical signals and optical signals.
It extends the transmission distance of copper cable network to 100 meters
This device supports multi-mode dual-fiber, single-mode dual-fiber and
single-mode single-fiber transmission, and is suitable for various network environments.
When connected to the computer USB port, the converter can automatically power off
when the computer is shut down, which is energy-efficient.
Technical Indexes
Parameter | Specifications |
Access mode | 10/100/1000Mbps Gigabit Ethernet |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
Fiber Port | SFP - 100/1000M adaptive |
Wavelength | 850nm/1310nm/1550nm (Based on SFP Module used) |
Transmission distance |
Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
Conversion means | Media conversion |
LFP | Not Support |
BER | <10-9 |
MTBF | 100,000 hours |

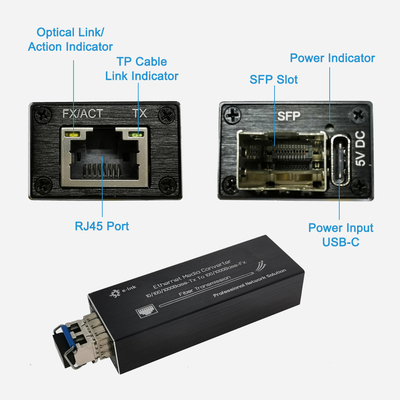

LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
Power supply | DC 5V (Type-C) |
Power consumption | <3W |
Operating temperature | 0~45ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Weight | 46g |
Dimensions (W x D x H) |
78 x 27 x 18 mm |
Ordering Information
Item | Description |
LNK-M3011-SFP | Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, not including SFP module, standalone, external power adaptor |
