Konverter Media Mini 10/100/1000Mbps Slot SFP 20KM Fiber Plug & Play

Gambar besar : Konverter Media Mini 10/100/1000Mbps Slot SFP 20KM Fiber Plug & Play

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	CE FCC RoHS ISO9001
Model Number:	LNK-M3011 Series

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pc
Harga:	Please contact seller
Packaging Details:	Mini 10/100/1000Mbps Media Converter SFP Slot 20KM Fiber Plug & Play Standard export package
Delivery Time:	5-10 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10000 per mouth

Kontak

Detil Deskripsi produk

Product name:	Ethernet Gigabit Media Converter	Power supply:	DC 5V (Type C)
Dimension:	62 x 44 x 18 mm	Port:	SC Fiber Port;RJ45 port
Conversion Means:	Media Conversion	Power:	3W
Menyoroti:	20KM Media Converter , SFP Slot Media Converter

Micro tipe 10/100/1000Base-Tx ke 100/1000Base-Fx Ethernet Media Converter

Gambaran umum

Konverter media berkinerja tinggi ini jaringan serat, mengkonversi 10/100/1000Base-T sinyal listrik

untuk sinyal optik 100/1000Base-SX/LX. Sesuai dengan standar IEEE 802.3/u/z/ab,

Ini memperpanjang jarak transmisi dari 100m (tembaga) hingga 20km (max 120km dengan serat).

Fitur Utama:

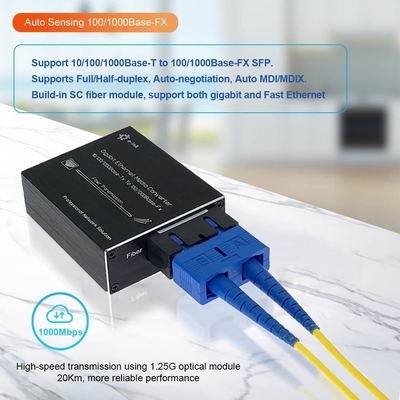

✔Port SFP Dual-ModeMendukung serat 100Mbps dan 1000Mbps (deteksi otomatis)

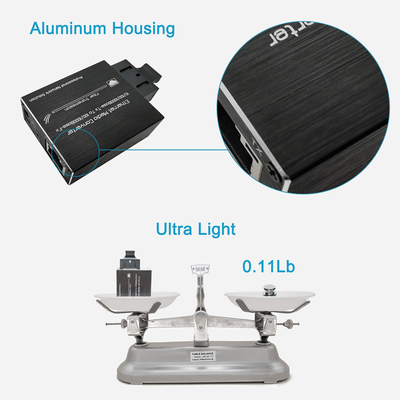

✔Desain Ultra-Kompak️ Menghemat ruang, ringan, dan mudah diintegrasikan
✔Pilihan Serat FleksibelFiber multi-mode/single-mode (fiber ganda/single)
✔Jangkauan yang Luas️ 20km standar (hingga 120km dengan serat mode tunggal)
✔Kompatibilitas secara luasBerfungsi dengan perangkat Ethernet 10/100/1000Mbps yang ada

Indeks Teknis

Parameter	Spesifikasi
Mode akses	10/100/1000Mbps Gigabit Ethernet
Standar	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

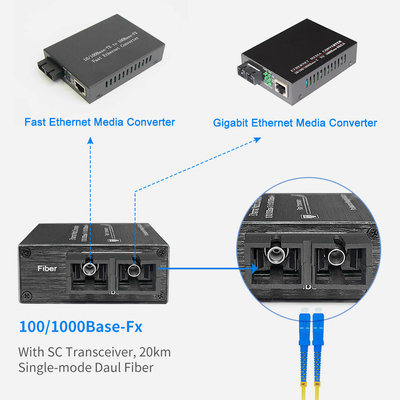

Pelabuhan Serat	1 SC Fiber Port, 100Base-FX atau 1000Base-X dual mode (deteksi otomatis)
Panjang gelombang	850nm/1310nm/1550nm
Jarak transmisi	multi-mode Fiber ganda: 220m (62.5/125μm)/550m (50/125μm) Modus tunggal Serat ganda: 20/40/60/80 Km Modus tunggal Serat tunggal: 20/40/60/80 Km Kategori-5 pasangan bengkok: 100m
Pelabuhan	Satu port RJ45: untuk menghubungkan dengan STP/UTP cat5/6 pasangan bengkok Satu port optik: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Mode tunggal Serat ganda: SC (9/125μm) Mode tunggal Serat tunggal: SC (9/125μm)
Rata-rata konversi	Konversi media
LFP	Bukan Dukungan
BER	< 10^-9
MTBF	100,000 jam
Indikator LED	PWR (Power supply) TX (LINK100/1000, tarif kabel TP 100/1000M) FX/ACT (Tindakan link optik / Tindakan penyampaian paket kabel TP)
Sumber daya listrik	DC 5V (tipe-C)
Konsumsi daya	3W
Suhu operasi	0 ~ 45oC
Kelembaban operasi	5% ~ 90%
Menjaga suhu	-40 ~ 70oC
Menjaga kelembaban	5% ~ 90% tidak kondensasi
Dimensi (W x D x H)	62 x 44 x 18 mm

Informasi Pemesanan

Model	Deskripsi

LNK-M3011	Konverter Media tipe mikro: 10/100/1000Base-T ke 100/1000Base-F, demi-monde, 500m, 850nm, SC, mandiri, adaptor daya eksternal
LNK-M3011-20	Micro type Media Converter: 10/100/1000Base-T ke 100/1000Base-F, mode tunggal, 20km, 1310nm, SC, mandiri, adaptor daya eksternal
LNK-M3011S- 20A	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, mandiri, adaptor daya eksternal
LNK-M3011S-20B	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, mandiri, adaptor daya eksternal
