Sakelar Ethernet POE Industri Mini 5 Port 10/100/1000BASE-T 12~48V DC

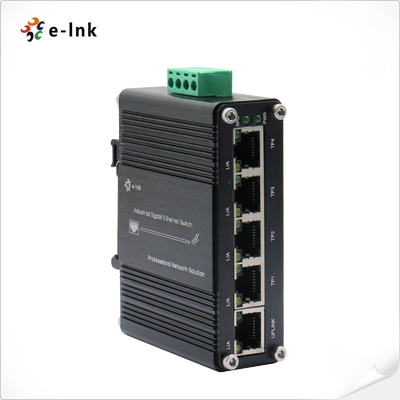

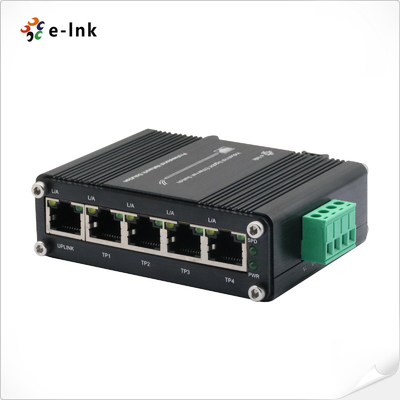

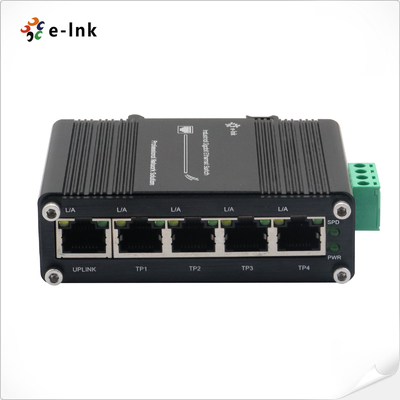

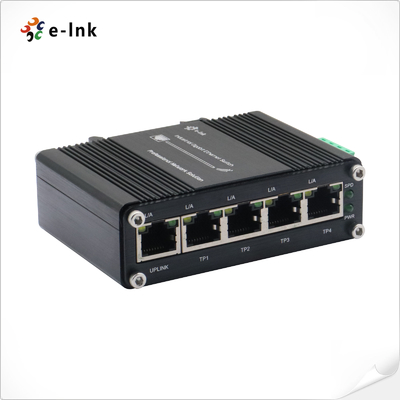

Gambar besar : Sakelar Ethernet POE Industri Mini 5 Port 10/100/1000BASE-T 12~48V DC

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	CE/FCC/ISO9001
Model Number:	LNK-IMC005G

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pc
Harga:	US$19.9/pc
Packaging Details:	1 piece in 1 carton box
Delivery Time:	1-3 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Kontak

Detil Deskripsi produk

Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	Input Power:	12~48VDC (Terminal Block)
Size:	95 x 70x 29m	Weight:	0.25Kg
Casing:	Aluminum Case	Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial 5-Port Gigabit(PoE)Switch Ethernet

Gambaran umum

Switch Gigabit berport 5 yang kuat dengan:

5×10/100/1000TX port

12-48VDC input tegangan lebar

Kisaran operasi 40 ~ 75 °C

Ketahanan getaran/kejut

Sertifikat CE/FCC

Ideal untuk lingkungan yang keras seperti otomatisasi pabrik dan instalasi luar ruangan.

Keuntungan utama:

✓ Daya tahan kelas industri

✓ Kesederhanaan plug-and-play

✓ Jaringan yang hemat biaya

✓ Kinerja yang dapat diandalkan

Fitur

Mendukung negosiasi otomatis dan 10/100Mbps setengah/full duplex dan 1000Mbps full duplex

PoE Opsional

Mendukung instalasi DIN-Rail dan Wall-mount

Desain standar industri, tahan debu dan desain yang dekat IP40, casing logam yang kuat

Aplikasi

Sakelar Ethernet POE Industri Mini 5 Port 10/100/1000BASE-T 12~48V DC 0

Sakelar Ethernet POE Industri Mini 5 Port 10/100/1000BASE-T 12~48V DC 1

Indeks Teknis

Ethernet
Standar:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Kontrol Aliran Full-Duplex
	IEEE 802.3az Ethernet hemat energi (EEE)
Ke depan & Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Panjang paket:	10Kbyte
Tabel Alamat MAC:	8K
Switch Fabric:	10Gbps/non-blocking
Pertukaran Properti	Bandwidth latar belakang: 10Gbps; Tingkat pengiriman paket: 14,88Mpps
Konektor:	5 10/100/1000BASET RJ45 port otomatis MDI/MDI-X
Lingkungan
Suhu operasi:	-40°C sampai 80°C (-40°F sampai 176°F)
Suhu penyimpanan:	-40°C sampai 85°C (-40°F sampai 185°F)
Kelembaban relatif:	5% sampai 95% tidak kondensasi
MTBF	> 200.000 jam
Listrik dan Mekanik
Daya Masuk:	12 ~ 48VDC (Blok Terminal)
Konsumsi daya:	< 6W
Pengecatan Daya Masuk:	Otomatis Reset
Kepolaritas terbalik:	Saat ini
Dimensi (WxDxH):	95 x 70 x 29mm
Berat:	0.25kg
Casing:	Kasus aluminium
Opsi pemasangan:	DIN-Rail / Wall-mount
Indikator LED:
PWR	Kekuatan
L/A	Hubungan/Kegiatan
SPD	Tingkat Data

Informasi Pemesanan

Model	Deskripsi
LNK-IMC005G	Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Opsi pemasangan	️ DIN-Rail Bracket default dipasang; Wall Mount Bracket disertakan.
Pilihan Daya	Suplai listrik harus dibeli secara terpisah
