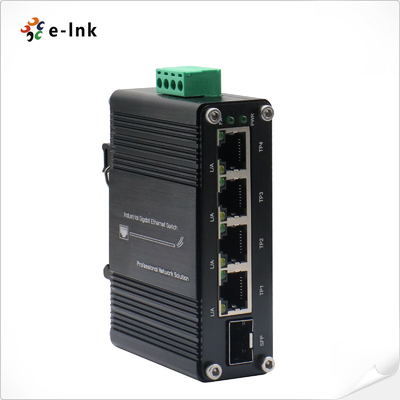

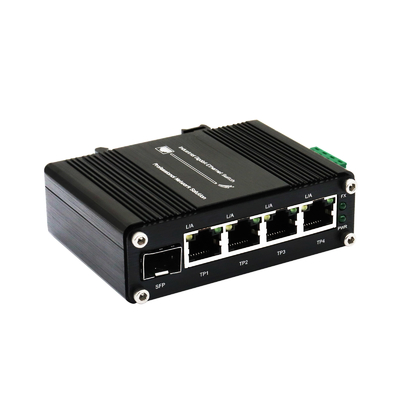

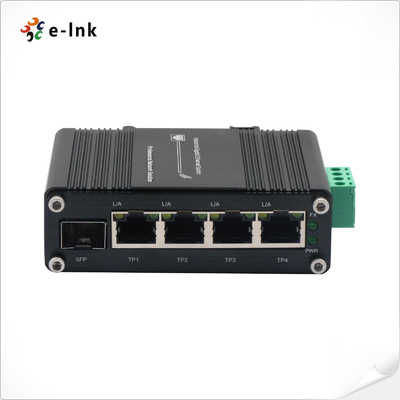

Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input

Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input
Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input

Gambar besar :  Mini Industrial 4-Port Gigabit + 1 SFP Switch with 12~48VDC Wide Range Power Input

Detail produk:
Place of Origin: China
Nama merek: E-link
Sertifikasi: CE/FCC/Rohs
Model Number: LNK-IMC104G-SFP Series
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 pc
Harga: US$29.9/pc
Packaging Details: Industrial Ethernet Switch Standard export package
Delivery Time: 2-7 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detil Deskripsi produk
Input Power:: 12~48V DC (Terminal Block) Power Consumption:: <125W (Non-PoE<6W)
Size: 95 x 70 x 29 mm Mounting Options: DIN-Rail / Wall-mount
Weight:: 0.25Kg Casing: Aluminum Case
Menyoroti:

Industrial 4-Port Gigabit SFP Switch

,

12~48VDC Gigabit SFP Switch

,

4 Port Gigabit SFP Switch

Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch

Overview

Mini Industrial 4-Port Gigabit + 1-Port SFP Ethernet Switch with 12–48VDC Wide Power Input

This compact unmanaged industrial Ethernet switch features 4 Gigabit RJ45 ports and 1 Gigabit SFP fiber port, supporting a wide 12–48VDC power input for flexible deployment.

Designed to meet rigorous industrial standards, it offers stable, maintenance-free operation under conditions of vibration, shock, and extreme temperatures. Its CE and FCC certifications, along with a 100% burn-in test, ensure long-term reliability and safety in demanding environments.

This switch is ideal for factory automation, outdoor monitoring, transportation, and energy systems, delivering a cost-effective solution for industrial Ethernet connectivity.

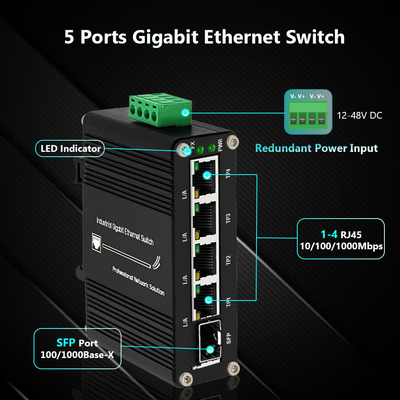

Features

100/1000BASE-X SFP slots for SFP type auto detection

► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

12~48VDC wide range power input

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature.





Technical Indexes

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;

Packet forwarding rate: 14.88Mpps

Connector: 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Interface
Connector: 4 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <6W
Power Input Overload: Automatic Resettable
Reverse Polarity: Present

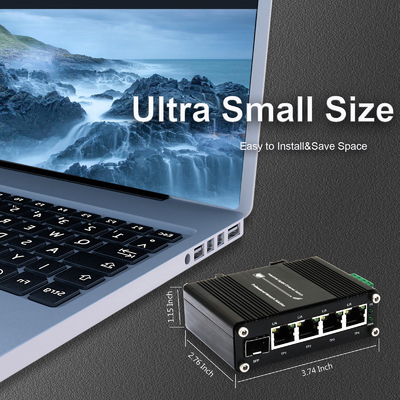

Dimensions (WxDxH): 95 x 70x 29mm
Weight: 0.25Kg
Casing: Aluminum Case

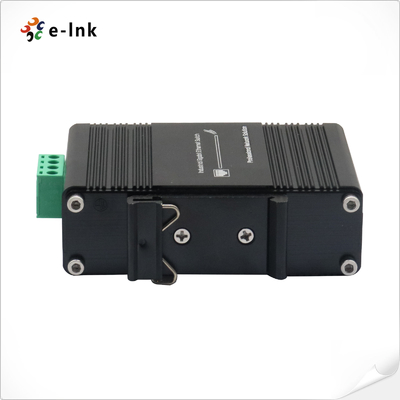

Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR: Power
L/A: Link/Activity
SPD Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)


Order Information

Model Description
LNK-IMC104G-SFP Mini Industrial 4-Port 10/100/1000T  + 1-Port 100/1000X SFP Gigabit Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
