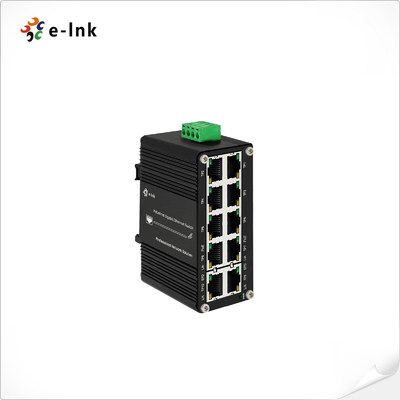

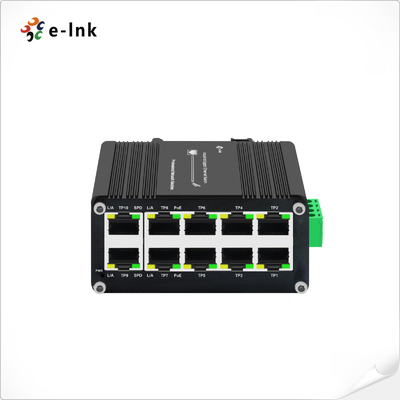

Mini Industrial 8-Port PoE + 2-Port Compact Ethernet Switch 12~48V DC Redundant Power

Gambar besar : Mini Industrial 8-Port PoE + 2-Port Compact Ethernet Switch 12~48V DC Redundant Power

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC010GPB

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1PCS
Harga:	US$49.9/pc
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Kontak

Detil Deskripsi produk

PoE Port:	RJ45	Power Pin Assignment:	4/5(+), 7/8(-)
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	Input Power:	12~48VDC
Dimensions (WxDxH):	95 x 88 x 46mm	Weight:	400g
Casing:	Aluminum Case	Mounting Options:	DIN-Rail mount
Menyoroti:	8-Port Compact Ethernet Switch , 8-Port PoE Ethernet Switch

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Overview
LNK-IMC010GPB Industrial PoE+ Switch compact 10-port industrial switch features 8×Gigabit PoE+
ports (802.3at, 30W/port) and 2×Gigabit uplinks, delivering 240W total PoE power. Designed for
space-constrained installations, it operates in -40~80°C extremes with 12-48V DC wide input and
rugged IP40 metal housing.

Key Advantages:

✓ 240W PoE+ budget for high-power devices

✓ Fanless, noiseless operation

✓ Industrial-grade EMI/surge protection

Ideal for harsh environments like factories, ITS, and outdoor applications requiring reliable power and

connectivity.

Features
12~48V DC redundant power with reverse polarity protection
Up to 240-watt PoE budget
Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
Industry standard design, dustproof and close design IP40, rugged high-strength metal case
10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

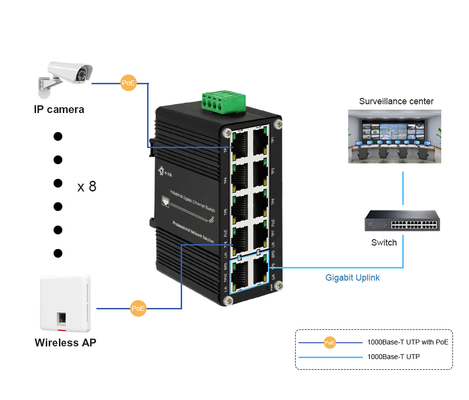

Application
Mini Industrial 8-Port PoE + 2-Port Compact Ethernet Switch 12~48V DC Redundant Power 1

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Interface
Connector:	10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ function (Port 1 to 8)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget (48V DC), Up to 90-watt PoE budget (24V DC), Up to 60-watt PoE budget (12V DC)
Max. Number of Class 4 PDs	8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 100,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC Redundant power with polarity reverses protection function
Power Consumption:	<250W (Non-PoE<10W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	400g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
PoE	PoE Status
Regulatory Approvals
EMC	CE (EN55032, EN55035)
EMI	FCC Part 15 Subpart B
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS)
	EN61000-4-4 (EFT) EN61000-4-5 (Surge)
	EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
Safety	CE (EN60950-1)
Surge Protection	8KV for PoE, RJ-45 and SFP ports
Shock	IEC60068-2-27
Freefall	IEC60068-2-32
Vibration	IEC60068-2-6

Ordering Information

Model	Description
LNK-IMC010GPB	Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► Power Supply is to be purchased separately

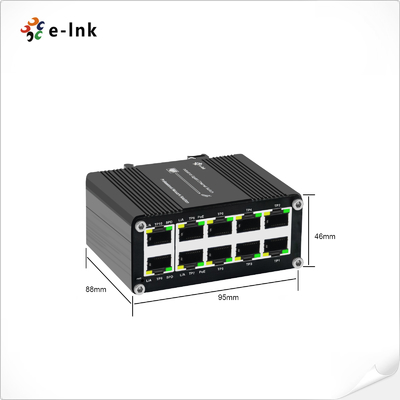

Dimension&Size
Mini Industrial 8-Port PoE + 2-Port Compact Ethernet Switch 12~48V DC Redundant Power 2
