Product Name: | Industrial 10 Port PoE Switch | Input Power: | 12~48VDC Redundant power with polarity reverses protection function |
---|---|---|---|
Dimensions (WxDxH): | 95 x 88 x 46mm | Weight: | 400g |
Mounting Options: | DIN-Rail mount | Konsumsi daya:: | <250W (Non-PoE<10W) |
Menyoroti: | 8 Port Gigabit PoE+ Switch,240W Industrial PoE+ Switch,2 Gigabit Uplink Ports PoE+ Switch |
Overview

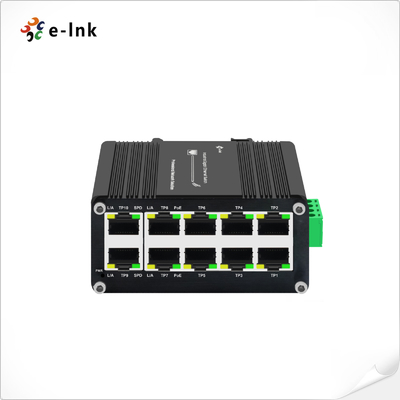

The LNK-IMC010GP is a compact industrial 8-Port Gigabit PoE+ switch with 2 additional uplink ports, specially designed for space-constrained and harsh environments. Delivering wire-speed Gigabit performance and a total PoE power budget of 240W, it supports IEEE 802.3at PoE+, providing up to 30W per port for high-powered devices such as IP cameras, wireless APs, and VoIP phones.

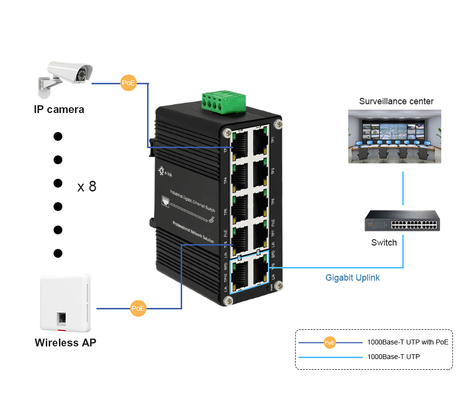

Equipped with 8 x 10/100/1000BASE-T PoE+ ports and 2 x Gigabit RJ45 uplink ports, the LNK-IMC010GP ensures flexible network expansion. The 48–57V DC power input enables power redundancy and operational reliability, while the rugged IP40-rated metal housing offers strong resistance to electromagnetic interference and electrical surges, making it ideal for industrial automation, traffic control systems, and outdoor cabinets without air conditioning.
With its fanless design for silent operation and an extended operating temperature range from -40°C to 80°C, this switch guarantees stable performance in extreme environments—all without the need for additional software configuration.
Features
► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► Up to 8 ports of IEEE 802.3af/at devices powered
► Up to 240-watt PoE budget
► 48~57V DC redundant power with reverse polarity protection
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

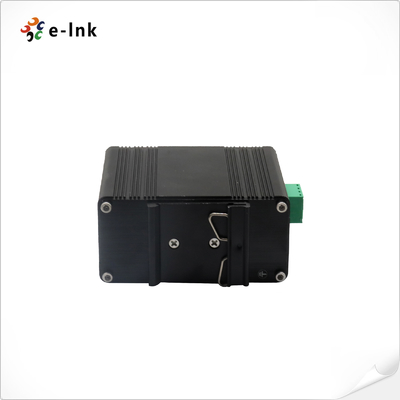

► Supports DIN-Rail installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature

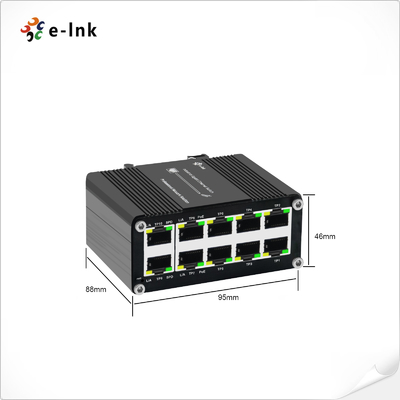

Dimension & Size
Technical Indexes
Ethernet | |
Standards: | IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet | |
IEEE 802.3ab Gigabit Ethernet | |
IEEE 802.3x Full-Duplex Flow Control | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
Forward & Filtering Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |
Packet Buffer: | 2Mbits |
Packet Length: | 9216bytes |
MAC Address Table: | 4K entries |
Switch Fabric: | 20Gbps/non-blocking |
Switch Throughput (packet per second) | 14.88Mpps@64bytes |
Interface | |
Connector: |
10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
PoE (Power over Ethernet) | |
Standard: |
IEEE 802.3at Power over Ethernet Plus/PSE |
Port: | RJ45 |
Power Pin Assignment | 4/5(+), 7/8(-) |
PoE Budget: | Up to 240-watt PoE budget |
Max. Number of Class 4 PDs | 8 |
Environmental | |
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 100,000 hrs |
Electrical and Mechanical | |
Input Power: |
48~57VDC |
Power Consumption: | <250W (Non-PoE<10W) |
Power Input Overload: | Automatic Resettable |
Reverse Polarity: | Present |
Dimensions (WxDxH): | 95 x 88 x 46mm |
Weight: | 400g |
Casing: | Aluminum Case |
Mounting Options: | DIN-Rail mount |
LED Indicators: | |
PWR | Power |
L/A | Link/Activity |
SPD | Data Rate |
PoE | Max 30W per port |
Regulatory Approvals | |
EMC | CE (EN55032, EN55035) |
EMI | FCC Part 15 Subpart B |
EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) |
EN61000-4-4 (EFT) EN61000-4-5 (Surge) | |
EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11 | |
Safety | CE (EN60950-1) |
Surge Protection | 8KV for PoE, RJ-45 and SFP ports |
Shock | IEC60068-2-27 |
Freefall | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Ordering Information
Model | Description |
LNK-IMC010GP | Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch |
Mounting Options | ► Default DIN-Rail Bracket installed. |
Power Options | ► Power Supply is to be purchased separately |
