Industrial 5-Port Gigabit Switch, Fanless, 12~48V DC, Plug-and-Play Design

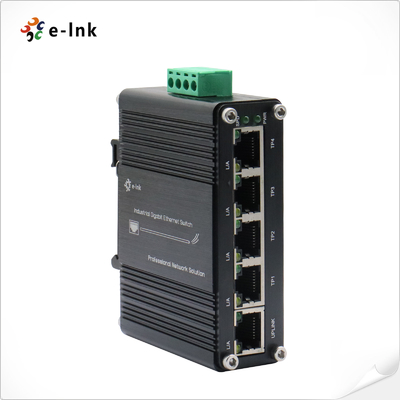

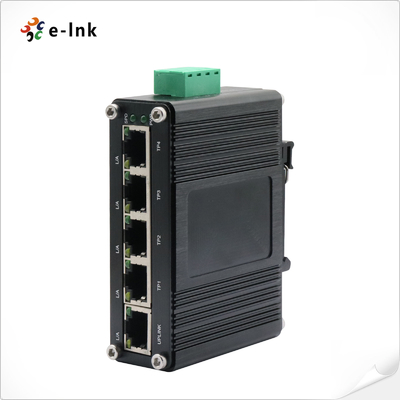

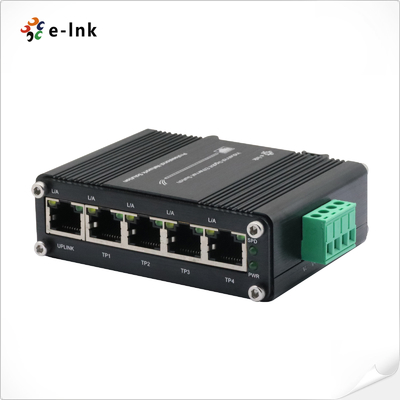

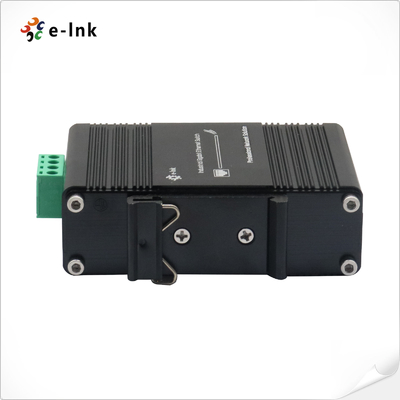

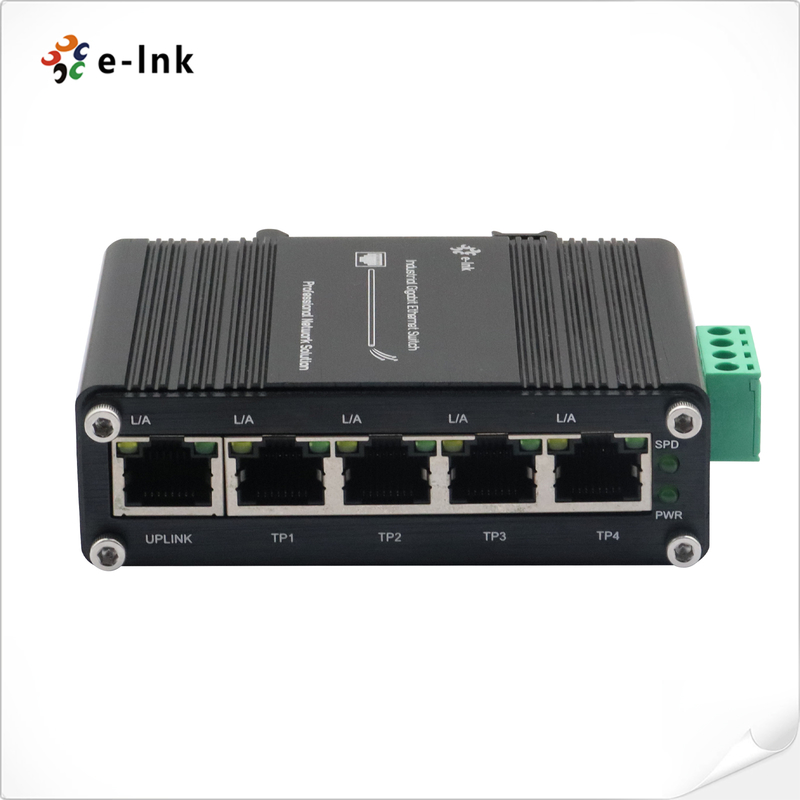

Gambar besar : Industrial 5-Port Gigabit Switch, Fanless, 12~48V DC, Plug-and-Play Design

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	CE,FCC,RoHs
Model Number:	LNK-IMC005G Series

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 PC
Harga:	US$19.9/pc
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Waktu pengiriman:	2-7 Hari Kerja
Syarat-syarat pembayaran:	Serikat Barat, L/C, T/T, MoneyGram
Menyediakan kemampuan:	2000 pcs/per bulan

Kontak

Detil Deskripsi produk

Opsi Pemasangan:	DIN-Rail / Wall-mount	Dimensi (PxLxT):	95x70x29mm
Berat badan:	0.25kg	Input Power:	12~48VDC (Terminal Block)
Konsumsi daya::	< 6W (PoE Dalam Penggunaan: < 125W)	Operating Temperature::	-40°C to 80°C (-40°F to 176°F)
Menyoroti:	Gigabit Industrial 5-Port Switch , Industrial Fanless 5-Port Switch , Plug-and-Play Industrial 5-Port Switch

Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch

Overview

The Mini Industrial 5-Port Gigabit Ethernet Switch is a compact, unmanaged switch designed for reliable performance in harsh industrial environments. Featuring 5 x 10/100/1000BASE-T ports and a 12~48V DC wide-range power input, this switch ensures stable operation against vibration, shock, and extreme temperatures.

Built to industrial-grade standards, it complies with CE and FCC certifications and has undergone a 100% burn-in test for guaranteed durability. With a wide operating temperature range, rugged design, and plug-and-play installation, it’s an ideal, cost-effective solution for industrial Ethernet connectivity in automation, transportation, and energy applications.

Features

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► PoE Optional

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3af/at Optional
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<6W (PoE In Use: <125W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29m
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordeing Information

Model	Description
LNK-IMC005G	Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
LNK-IMC005GP	Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
