Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Daya masukan:: | 12~48V DC (Blok Terminal) | Power Consumption:: | <125W (Non-PoE<6W) |
---|---|---|---|
Ukuran: | Ukuran 95x70x29mm | Opsi Pemasangan: | DIN-Rail / Wall-mount |
Weight:: | 0.25Kg | Casing: | Aluminum Case |
Menyoroti: | Managed Gigabit PoE Switch,12–48V DC PoE Switch,1 Uplink Industrial Gigabit PoE Switch |

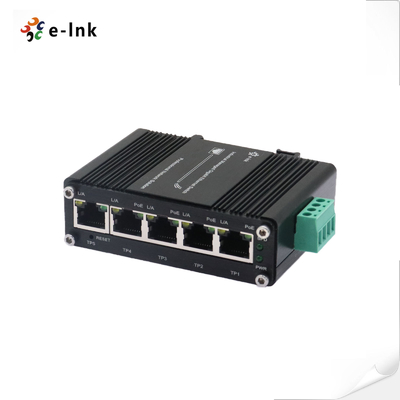

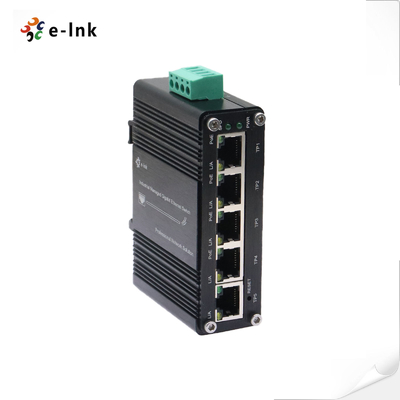

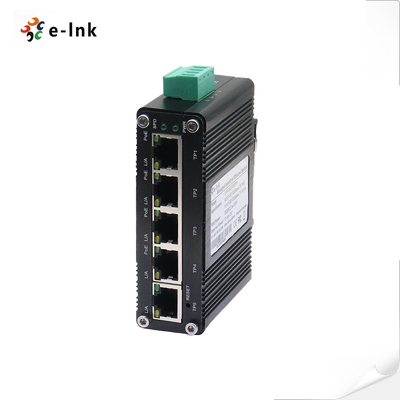

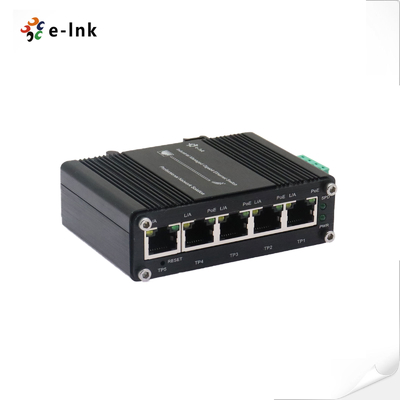

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Overview

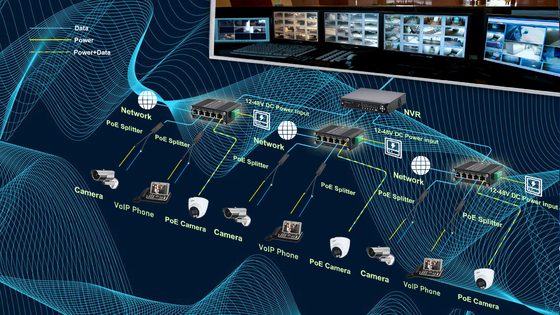

The LNK-IMC005GPM is a Mini Industrial Managed Gigabit PoE Switch designed for harsh industrial environments. It features 4 x 10/100/1000BASE-T PoE+ ports and 1 Gigabit uplink port, delivering IEEE 802.3at PoE+ power up to 30W per port for IP cameras, wireless APs, and VoIP phones. The switch offers a wide 12~48V DC power input, ensuring power redundancy and reliable performance in demanding conditions.
Built with a rugged IP40-rated metal housing and supporting DIN-rail or wall mounting, this switch withstands vibration, shock, and extreme temperatures from -40°C to 80°C. It is CE and FCC certified and has passed a 100% burn-in test for guaranteed durability. With its advanced managed features, the LNK-IMC005GPM provides secure, stable, and flexible Ethernet connectivity, making it ideal for industrial automation, ITS (Intelligent Transportation Systems), military, and utility applications where commercial devices cannot operate
Features
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
► 12~48V DC wide range power input
► Supports 802.3x Flow control
► Supports WEB Management

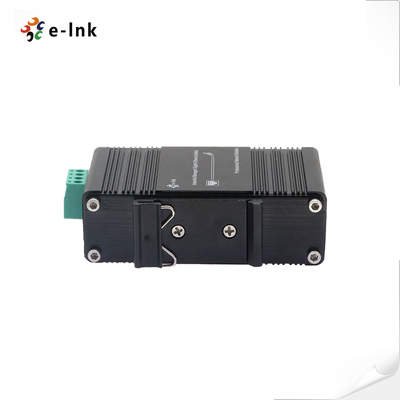

► Supports DIN-Rail and Wall-mount installation
► Up to 120-watt PoE budget (48V DC),
► Up to 90-watt PoE budget (24V DC),
► Up to 60-watt PoE budget (12V DC)
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
Ethernet | |||||||||||||||||||||
Standards: | IEEE 802.3 Ethernet | ||||||||||||||||||||
IEEE 802.3u Fast Ethernet | |||||||||||||||||||||
IEEE 802.3ab Gigabit Ethernet | |||||||||||||||||||||
IEEE 802.3x Full-Duplex Flow Control | |||||||||||||||||||||
IEEE 802.3az Energy Efficient Ethernet (EEE) | |||||||||||||||||||||
IEEE 802.3at Power over Ethernet Plus PSE | |||||||||||||||||||||
IEEE 802.3af Power over Ethernet Plus | |||||||||||||||||||||
Forward & Filtering Rate: | 14,880pps (10Mbps) | ||||||||||||||||||||
148,800pps (100Mbps) | |||||||||||||||||||||
1,488,000pps (1000Mbps) | |||||||||||||||||||||
Packet Buffer: | 1Mbits | ||||||||||||||||||||
Packet Length: | 10Kbytes | ||||||||||||||||||||
MAC Address Table: | 8K | ||||||||||||||||||||
Switch Fabric: | 10Gbps/non-blocking | ||||||||||||||||||||
Exchange Property |
Backplane bandwidth: 20Gbps; |
||||||||||||||||||||
Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
||||||||||||||||||||
PoE (Power over Ethernet) | |||||||||||||||||||||
Standard: | IEEE802.3af/at | ||||||||||||||||||||
Port: | RJ45 | ||||||||||||||||||||
Power Pin Assignment |
1/2(+), 3/6(-) or4/5(+), 7/8(-) |
||||||||||||||||||||
PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) | ||||||||||||||||||||
Environmental | |||||||||||||||||||||
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | ||||||||||||||||||||
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | ||||||||||||||||||||
Relative Humidity: | 5% to 95% non-condensing | ||||||||||||||||||||
MTBF | > 200,000 hrs | ||||||||||||||||||||
Electrical and Mechanical | |||||||||||||||||||||
Input Power: | 12~48VDC (Terminal Block) | ||||||||||||||||||||
Power Consumption: | <125W (Non-PoE<6W) | ||||||||||||||||||||
Power Input Overload: | Automatic Resettable | ||||||||||||||||||||
Reset Button |
Support |
||||||||||||||||||||
Reverse Polarity: | Present | ||||||||||||||||||||
Dimensions (WxDxH): | 95 x 70x 29mm | ||||||||||||||||||||
Weight: | 0.25Kg | ||||||||||||||||||||
Casing: | Aluminum Case | ||||||||||||||||||||
Mounting Options: | DIN-Rail / Wall-mount | ||||||||||||||||||||
LED Indicators: | |||||||||||||||||||||
PWR: | Power | ||||||||||||||||||||
L/A: | Link/Activity | ||||||||||||||||||||
PoE: | PoE Status | ||||||||||||||||||||
|
|||||||||||||||||||||
Regulatory Approvals | |||||||||||||||||||||
ISO9001 | |||||||||||||||||||||
EN55022:2010+AC: 2011, Class A | |||||||||||||||||||||
EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |||||||||||||||||||||
EN 61000-3-3: 2013 | |||||||||||||||||||||
EN55032:2017 | |||||||||||||||||||||
IEC 61000-4-2: 2008 (ESD) | |||||||||||||||||||||
IEC 61000-4-3: 2010 (RS) | |||||||||||||||||||||
IEC 61000-4-4: 2012 (EFT) | |||||||||||||||||||||
IEC 61000-4-5: 2014 (Surge) | |||||||||||||||||||||
IEC 61000-4-6: 2013 (CS) | |||||||||||||||||||||
IEC 61000-4-8: 2009 (PFMF) |
Order Information
Model | Description |
LNK-IMC005GPM | Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48 |
