High-Quality DVI Fiber Extender with 4K Resolution & HDMI Compatibility

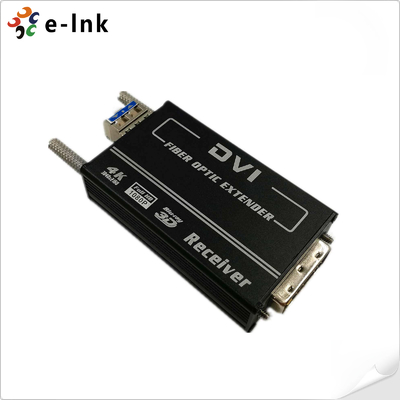

Gambar besar : High-Quality DVI Fiber Extender with 4K Resolution & HDMI Compatibility

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC
Model Number:	LNK-D4K-MM

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pcs
Harga:	negotiated
Packaging Details:	DVI Fiber Extender Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Kontak

Detil Deskripsi produk

Compliance:	DVI 1.0; HDMI v1.4	Optical:	1x SFP+ port
Operating Temperature:	32° to +112° F. (0° to +50° C)	Dimensions (WxDxH):	69mm x 42 mm x 18.2 mm
Net Weight:	LNK-D4K-MM-S: 100 g/ LNK-D4K-MM-R: 100 g	Power Consumption:	LNK-D4K-MM-S: 3 watts/LNK-D4K-MM-R: 3.5 watts
Menyoroti:	4K Resolution DVI Fiber Extender , High-Quality Fiber Extender , HDMI Fiber Extender

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Overview

The LNK-D4K-MM Mini 4K DVI Fiber Optic Extender delivers high-resolution DVI signals over a single fiber cable, eliminating RF interference for superior performance and signal integrity. Supporting HDMI v1.4 and resolutions up to 4K (3840×2160@30Hz), this compact extender transmits video up to 300 meters, offering a reliable and cost-effective solution for long-distance audiovisual applications.

Features

► Support DVI 1.0 and HDMI v1.4

► Support EDID pass-through.

► Support resolutions up to 3840x2160/30P

► 7.1 channel LPCM, 192 kHz, 24-bit

► Support 3840*2160/60P(YUV 420)

► Plug and Play ,Built-in EQ(Receiver)

► Support 4K/30P@ Single-Link

► Two fiber,2-ways

► Bandwidth up to 10.2 Gbps

► Up to 300m distance by Multimode Fiber

► Support the HDCP 1.4

► Low RFI / EMI

► Support 3D TV pass-through

► Surface-mountable

Technical Indexes

Parameter	Specifications
Compliance	DVI1.0,HDMI v1.4
Bandwith	10.2 Gbps
Supported Resolutions	3840x2160/30P,38402160/60P(YUV 420), 40962160/60P(YUV 420)
Digital Audio Support	7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections
DVI Input / DVI Output	1x DVI-D 18+1 Male connector
Optical	1x SFP+ port
Cable
Fiber Cable	50/125μ OM3 Multi-Mode Fiber:≤300m
DDC Support
EDID Support	Support EDID pass-through
HDCP Pass-through Support	Yes, Support the HDCP 1.4 pass-through
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H)	69mm x 42 mm x 18.2 mm
Net Weight	LNK-D4K-SM-S: 100 g LNK-D4K-SM-R: 100 g
Environmental
Operating Temperature	32° to +112° F. (0° to +50° C)
Storage Temperature	-40° to +185° F. (-40° to +85° C)
Operating Humidity	5% to 80% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Power Requirements
External AC Power Adapter	Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A
Power Consumption	LNK-D4K-SM-S: 3 watts LNK-D4K-SM-R: 3.5 watts
Warranty
Limited Warranty	1 year
