Micro 4K HDMI Fiber Extender with RS232 & External Audio 5V DC Type-C Power Input

Gambar besar : Micro 4K HDMI Fiber Extender with RS232 & External Audio 5V DC Type-C Power Input

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-MHRA4K

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pair
Harga:	negotiable
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Kontak

Detil Deskripsi produk

Product Name:	HDMI Over Fiber Optic Extender	Power Supply:	5V DC, USB Typ-C
Weight:	60g / 0.13 lb	Dimension:	2.87 x 1.73 x 0.69in (73x44x17mm)
Warranty:	5 years	Storage Temperature:	-20 to + 80°C
Menyoroti:	4K HDMI Fiber Extender , RS232 HDMI Fiber Extender

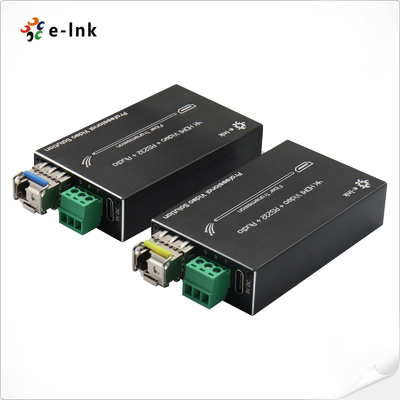

Mini 4K HDMI Fiber Extender with RS232 & External Audio

Overview

The LNK-MHRA4K Series 4K HDMI Fiber Extender delivers uncompressed, lossless HDMI 1.4a,

RS232, and stereo audio signals over optical fiber up to 80km, supporting 4K@60Hz (YUV 4:2:0)

resolution. The transmitter converts HDMI into a 10Gb/s fiber optic signal, while the receiver restores it

for seamless output. RoHS-compliant and interference-resistant, it’s perfect for large-screen displays,

conferencing systems, and home entertainment.

Features

Uncompressed transmission, No delay, No losses

Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

Miniature form factor for ease of use and installation

Hot-Pluggable, EMI/RFI Resistant

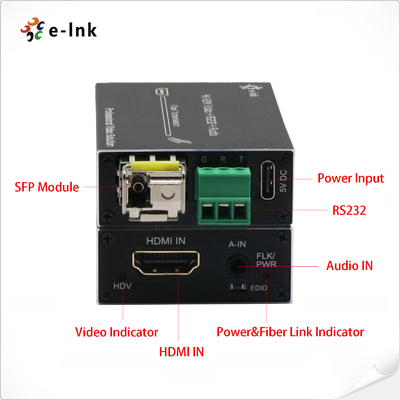

Panel Information

Micro 4K HDMI Fiber Extender with RS232 & External Audio 5V DC Type-C Power Input 0

Micro 4K HDMI Fiber Extender with RS232 & External Audio 5V DC Type-C Power Input 1

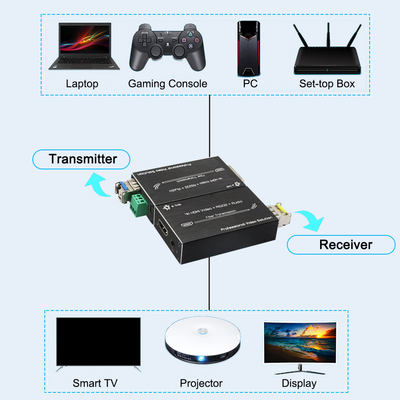

Application

Micro 4K HDMI Fiber Extender with RS232 & External Audio 5V DC Type-C Power Input 2

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Connector	Female HDMI type A
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
Audio Interface	3.5MM external stereo audio
RS232	3 Pin terminal, Baud rate ≤ 38400
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 50°C
Storage Temperature	-20 to + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC, USB Typ-C
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Ordering Information

Model	Description
Model	Description
LNK-MHRA4K-MM	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S20	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S40	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S80	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
