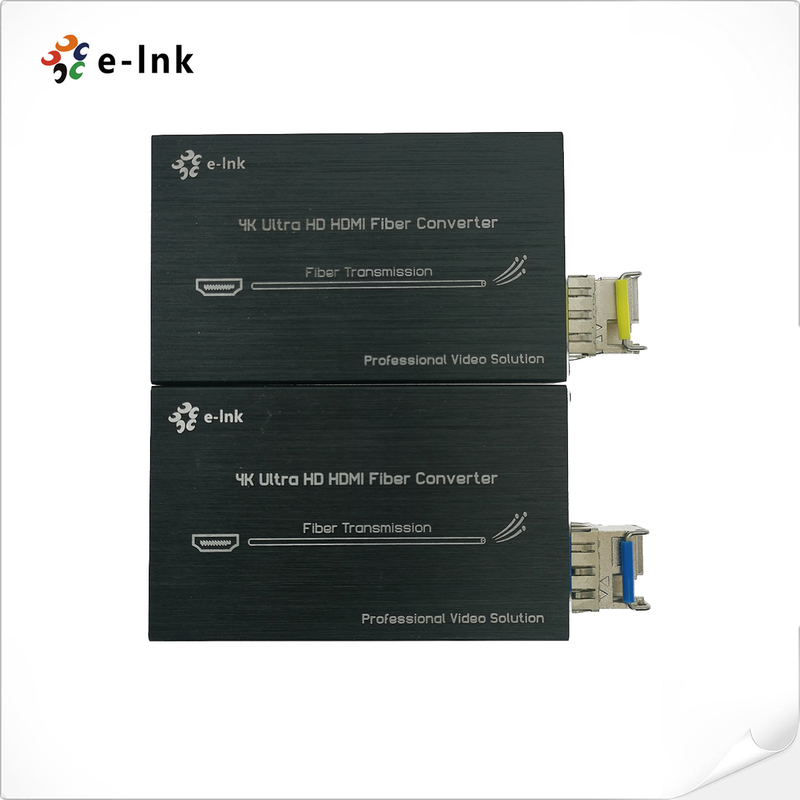

4K HDMI Fiber Optic Extender with Stereo Audio, 80km Long-Distance Transmission

Gambar besar : 4K HDMI Fiber Optic Extender with Stereo Audio, 80km Long-Distance Transmission

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC
Model Number:	The LNK-MHA4K Series

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pcs
Harga:	negotiated
Packaging Details:	4K HDMI Fiber Optic Extender Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Kontak

Detil Deskripsi produk

Input Signals:	HDMI	Fiber Connector:	SFP/LC
Operating Temperature:	-10 to + 60°C	Input Power:	5~12V DC
Power Consumption:	<5W	Dimensions (WxDxH):	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight:	60g / 0.13 lb	Dynamic EDID:	Plug & Play, no need to learn
Menyoroti:	80km HDMI Fiber Optic Extender , 4k HDMI Fiber Optic Extender , Stereo Audio HDMI Fiber Optic Extender

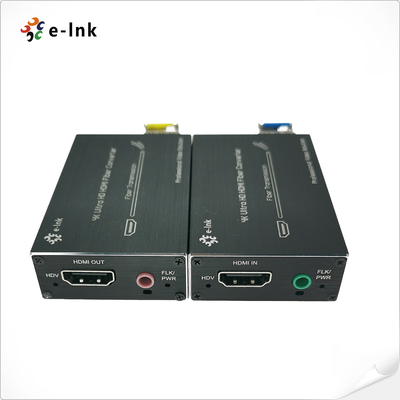

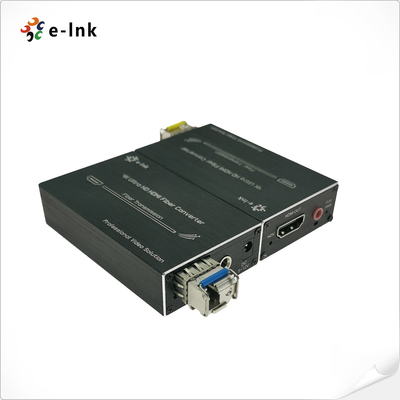

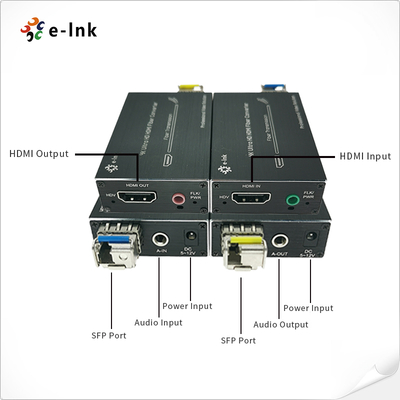

Micro Mini 4K HDMI Fiber Extender with External Audio

Overview

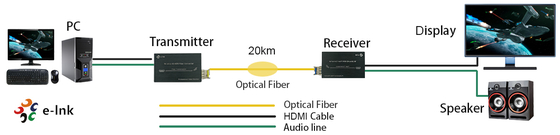

The 4K HDMI Fiber Extender delivers uncompressed, lossless HDMI 1.4a video and stereo audio over a single optical fiber for distances up to 80km, supporting resolutions up to 4Kx2K. The transmitter converts HDMI into a 10Gbps serial data stream for fiber transmission, while the receiver restores it to HDMI. RoHS compliant and lead-free, this extender ensures high stability and strong anti-interference performance, making it ideal for large-screen displays, conference systems, and home entertainment.

Features

► HDMI 1.4a and HCCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Data rate up to 10.3Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to 4K*2K@30Hz Resolution

► Support external stereo audio

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► 850nm VCSEL and PIN Photo detector

► Operating Case Temperature: -10~60°C

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Connector	Female HDMI type A
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Color space, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Audio Interface	3.5MM external stereo audio
Fiber Connector	SFP/LC
Bandwidth	10.3Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 60°C
Storage Temperature	-20 to + 85°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5~12V DC
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Ordering Information

Model	Description
Model	Description
LNK-MHA4K-MM	Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber*, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S20	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K2K) + 1Ch Stereo Audio, Single-mode Single Fiber*, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S40	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K2K) + 1Ch Stereo Audio, Single-mode Single Fiber*, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-80	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K2K) + 1Ch Stereo Audio, Single-mode Dual Fiber*, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S80	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K2K) + 1Ch Stereo Audio, Single-mode Single Fiber*, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
