Injektor PoE Industrial dengan Konektor M12, Sertifikasi EN50155, 12-48V DC

Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC
Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC Industrial PoE Injector with M12 Connectors, EN50155 Certification, 12-48V DC

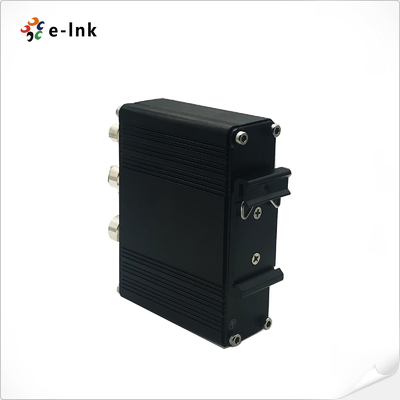

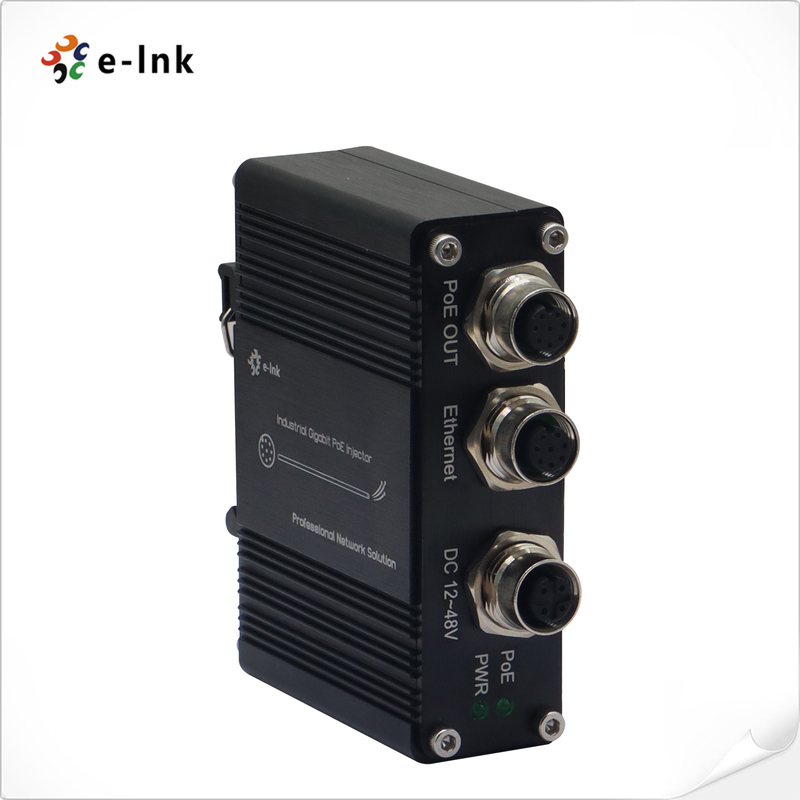

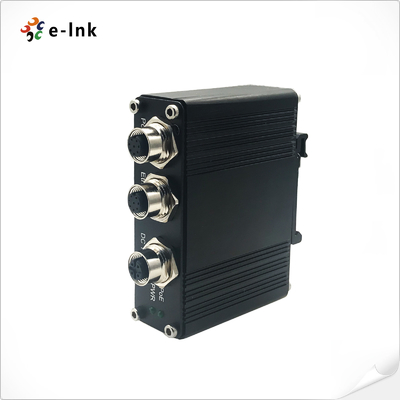

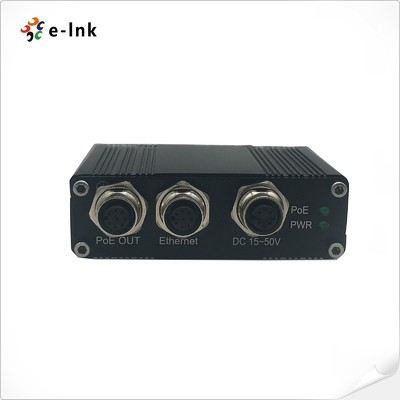

Gambar besar :  Injektor PoE Industrial dengan Konektor M12, Sertifikasi EN50155, 12-48V DC

Detail produk:
Tempat asal: Cina
Nama merek: E-link
Sertifikasi: CE/FCC/Rohs
Nomor model: LNK-INJ301-30-M12
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: negotiable
Kemasan rincian: Paket Ekspor Standar Injector Poe Industri
Waktu pengiriman: 3-10 hari kerja
Syarat-syarat pembayaran: T/T, Serikat Barat, MoneyGram, Paypal
Menyediakan kemampuan: 10.000 per bulan
Detil Deskripsi produk
Input Power:: 12~48V DC on 4-pin female M12 A-Coding Power Consumption:: 36W Max
Standard:: IEEE802.3af/at Port:: 2x M12 connector (8-pin female M12 A-coding)
Dimension(WxDxH):: 95 x 70 x 30 mm Weight:: 0.25Kg

EN50155 Industri 10/100/1000M 30WInjektor PoE dengan M12 Connecto



Gambaran umum

E-link'sBersertifikat EN50155Injektor PoE kelas industri dirancang untuk transit kereta api, rolling stock, dan

aplikasi kereta api.IEEE802.3at, mendukung deteksi cerdas dan menyediakan

10/100/1000Basis-T ((X)Port output PoE, memastikan perlindungan yang aman untuk perangkat non-PoE.

konektor memastikan operasi yang stabil di lingkungan yang keras seperti getaran tinggi dan kejut.

PeraturanLNK-INJ301-30-M12memiliki rentang tegangan masukan yang luas(12-48V) DC), memberikan integrasi yang dapat diandalkan

solusi daya untuk aplikasi ketersediaan tinggi, menjadikannya pilihan ideal untuk industri dan transportasi

aplikasi.



Fitur

12 ~ 48V DC Power Input

️ Sesuai dengan standar IEEE802.3af/at

Dukungan 10/100/1000Base-TX untuk output daya dan data

¢ Mendukung instalasi DIN-Rail & Wall-mount

Gunakan konektor M12 Tipe-A untuk memastikan koneksi yang ketat dan kuat

Ukuran kecil: 95 x 70 x 30mm

Berat: 0,25KG

Kasus aluminium

Indikator LED ekstensif untuk diagnostik PoE

-40°C sampai 80°C (-40°F sampai 176°F)



Indeks Teknis

Ethernet
Standar: IEEE802.3af Daya melalui Ethernet
IEEE802.3at Power over Ethernet
Jenis pengolahan: Ke depan
Half-duplex, Full-duplex
Kecepatan Filter Ke depan: 1,488,000pps (1000Mbps)
Kabel: 10/100/1000Base-T
Konektor: 2x konektor M12 (8-pin perempuan M12 A-coding)
Lingkungan
Suhu operasi: -40°C sampai 80°C (-40°F sampai 176°F)
Suhu penyimpanan: -40°C sampai 85°C (-40°F sampai 185°F)
Kelembaban relatif: 5% sampai 95% tidak kondensasi
MTBF: >200.000 jam
Listrik dan Mekanik
Daya Masuk: 12 ~ 48V DC pada 4-pin perempuan M12 A-Coding
Konsumsi daya: 36W Max.
PoE (Power over Ethernet)
Standar: IEEE802.3af/at
Pelabuhan: Konektor M12 (8-pin perempuan M12 A-coding)
Maks. daya per port: 30W Max
Indikator LED:
Daya: Status Daya
PoE: Status PoE
Dimensi (WxDxH): 95 x 70 x 30 mm
Berat: 0.25kg
Casing: Kasus aluminium
Opsi pemasangan: DIN-Rail / Wall-mount
Persetujuan Peraturan
ISO9001
FCC bagian 15, Kelas A, EN50155
EN55022:2006+A1: 2007 Kelas A
Perlindungan terhadap tegangan:
RJ45: 1KV
Daya: 500V
ESD: 4KV/8KV

Dimensi & Ukuran
Injektor PoE Industrial dengan Konektor M12, Sertifikasi EN50155, 12-48V DC 0


Informasi Pemesanan

Model Deskripsi
LNK-INJ301-30-M12 EN50155 Industri 1-port 10/100/1000M M12 PoE Injector 12 ~ 48V DC Power Input
Opsi pemasangan ️ DIN-Rail Bracket default dipasang; Wall Mount Bracket disertakan.
Pilihan Daya Suplai listrik harus dibeli secara terpisah

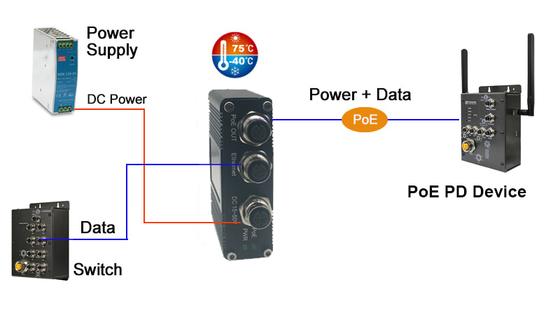

Aplikasi

Injektor PoE Industrial dengan Konektor M12, Sertifikasi EN50155, 12-48V DC 1
