Micro Industrial 30W PoE+ Media Converter 2-Port 10/100BASE-T dan 1-Port 100BASE-FX

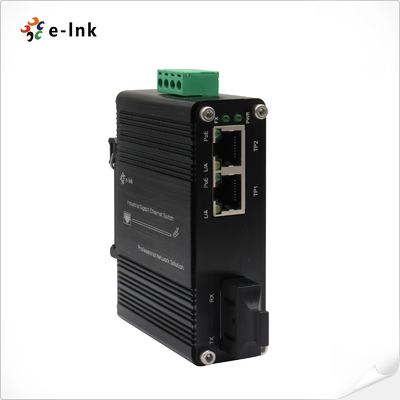

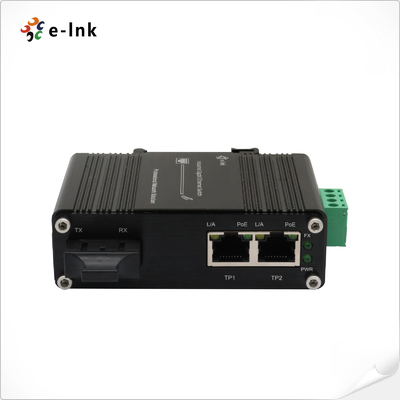

Gambar besar : Micro Industrial 30W PoE+ Media Converter 2-Port 10/100BASE-T dan 1-Port 100BASE-FX

Detail produk:

Tempat asal:	Cina
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Nomor model:	Seri LNK-IMC1200P

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 PCS
Harga:	negotiable
Kemasan rincian:	Paket Ekspor Standar Konverter Media
Waktu pengiriman:	3 ~ 5 Hari Kerja
Syarat-syarat pembayaran:	Paypal, TT, Western Union, Money Gram, Alipay
Menyediakan kemampuan:	5000pcs per bulan

Kontak

Detil Deskripsi produk

Konektor:	2xRJ45	Port optik:	1 x SC 100Base-FX
Daya masukan:	12~48VDC, blok terminal 2-pin	Kekuatan output:	48VDC
Dimensi (PxLxT):	95x70x30 mm	Berat badan:	0.25kg

Mini Industrial 1-Port 100Base-FX ke 2-Port 10/100Base-T 30W PoE+ Media Converter

Gambaran umum

Seri LNK-IMC1200P menyediakan konversi media antara 2-Port 10/100BASE-T dan 1-Port

100BASE-FX Fiber. port Ethernet mendukung 30W daya tinggi PoE (Power Sourcing Equipment) yang

sesuai dengan standar IEEE802.3at.

-40°C sampai 75°C, dan rumah aluminium yang kokoh.

Desain perangkat keras yang tangguh memastikan bahwa peralatan Ethernet Anda dapat menahan industri yang menuntut

Seri LNK-IMC1200P mudah dipasang di rel DIN atau dalam kotak distribusi.

Fitur

️12 ~ 48VDC Input Daya Blok Terminal

¢ Mendukung instalasi DIN-Rail & Wall-mount

-40°C sampai 75°C (-40°F sampai 167°F)

Mendukung IEEE802.3af PoE (15.4W) atau IEEE802.3at PoE+(30W)

Dukungan Full/Half-duplex, Auto-negotiation

IEEE 802.3az Ethernet yang hemat energi (EEE)

2 port 10/100BASE-T RJ45 dengan fungsi MDI/MDI-X otomatis

1 port 100Base-FX SC

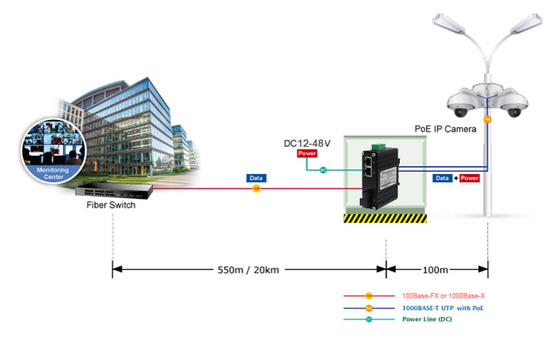

Aplikasi

Micro Industrial 30W PoE+ Media Converter 2-Port 10/100BASE-T dan 1-Port 100BASE-FX 0

Indeks Teknis

Ethernet
Standar:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3x Full duplex dan kontrol aliran
	IEEE 802.3az Ethernet hemat energi (EEE)
	IEEE802.3af Daya melalui Ethernet
	IEEE802.3at Power over Ethernet
Jenis pengolahan:	Penyimpanan dan Pembebasan
Kecepatan Filter Ke depan:	14,880pps (10Mbps)
Kecepatan Filter Ke depan:	148,800pps (100Mbps)
Memori Buffer Paket:	128K bit
Panjang paket maksimum:	1522 Bytes
Ukuran tabel alamat	Alamat MAC 1K
Antarmuka
Konektor:	2 x RJ45
Pelabuhan optik:	1 x SC 100Base-FX
Listrik dan Mekanik
Daya Masuk:	12~48VDC, blok terminal 2-pin
Kekuatan output	48VDC
Konsumsi daya:	65W maksimal.
Indikator LED:
PWR:	Status Daya
L/A:	Status Data LINK
POE:	Status PoE
100M/1000M:	Fiber LINK Status
Dimensi (WxDxH):	95 x 70 x 30 mm
Berat:	0.25kg
Casing:	Kasus aluminium
Opsi pemasangan:	DIN-Rail / Wall-mount
Lingkungan
Suhu operasi:	-40°C sampai 75°C (-40°F sampai 167°F)
Suhu penyimpanan:	-40°C sampai 85°C (-40°F sampai 185°F)
Kelembaban relatif:	5% sampai 95% tidak kondensasi
MTBF	> 200.000 jam
Persetujuan Peraturan
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Kelas A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Peningkatan) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Informasi Pemesanan

Model	Deskripsi
LNK-IMC1200P	Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200P-20	Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, Port Serat SC, Mode Tunggal, 1310nm, 20km
LNK-IMC1200PS-20	Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Opsi pemasangan	️ DIN-Rail Bracket default dipasang; Wall Mount Bracket disertakan.
Pilihan Daya	Sumber Daya 75W/1.6A 48VDC
Pilihan Daya	Suplai listrik harus dibeli secara terpisah.
