Konverter Media PoE+ 30W Industri Mikro 2-Port 10/100/1000BASE-T dan 1-Port 1000BASE-X

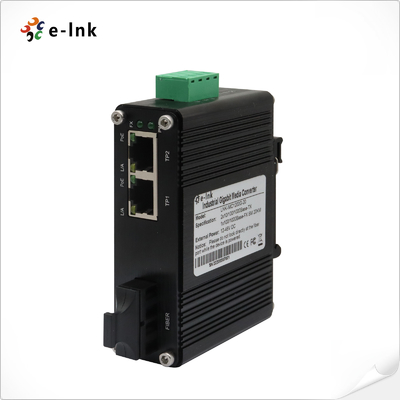

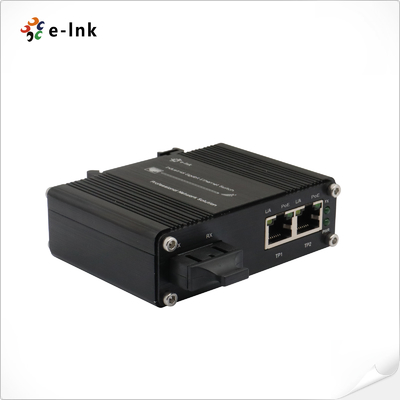

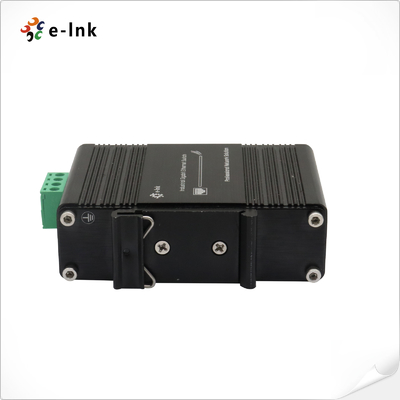

Gambar besar : Konverter Media PoE+ 30W Industri Mikro 2-Port 10/100/1000BASE-T dan 1-Port 1000BASE-X

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC1200GP Series

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 PCS
Harga:	negotiable
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Kontak

Detil Deskripsi produk

Connector:	2 x RJ45	Optical Port:	1 x SC 1000Base-X
Input Power:	12~48VDC, 2-pin terminal block	Output Power:	48VDC
Dimensions (WxDxH):	95 x 70 x 30 mm	Berat badan:	0.25kg

Mini Industrial 1-Port 1000X ke 2-Port 10/100/1000X 30W PoE+ Media Converter

Ikhtisar

Seri LNK-IMC1200GP menyediakan konversi media antara 2-Port 10/100/1000BASE-T dan

1-Port 1000BASE-X Fiber. Port Ethernet mendukung PoE daya tinggi 30W (Power Sourcing Equipment)

yang sesuai dengan standar IEEE802.3at. Ini adalah produk yang diperkeras dengan suhu pengoperasian yang luas

mulai dari -40°C hingga 75°C, dan rumah aluminium yang diperkeras. Port Ethernet mendukung keduanya

mode half-duplex dan full-duplex. Desain perangkat keras yang kokoh memastikan bahwa peralatan Ethernet Anda

dapat menahan kondisi industri yang menantang. Seri LNK-IMC1200GP mudah dipasang pada DIN

rel atau di kotak distribusi.

Fitur

► Input Daya Blok Terminal 12~48VDC

► Mendukung instalasi DIN-Rail & Wall-mount

► Lingkungan yang diperkeras -40°C hingga 75°C (-40°F hingga 167°F) suhu pengoperasian

► Mendukung IEEE802.3af PoE (15.4W) atau IEEE802.3at PoE+(30W)

► Mendukung Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 2-Port 10/100/1000BASE-T RJ45 dengan fungsi auto MDI / MDI-X

► 1- Port 1000Base-X SC

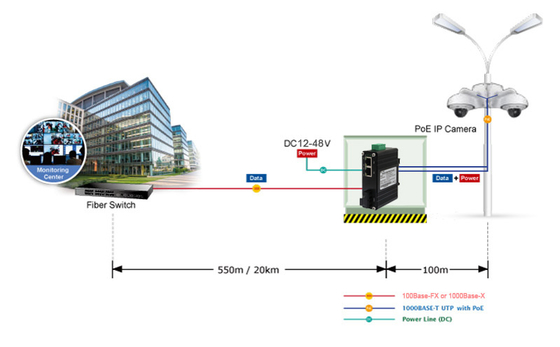

Aplikasi

Konverter Media PoE+ 30W Industri Mikro 2-Port 10/100/1000BASE-T dan 1-Port 1000BASE-X 0

Indeks Teknis

Ethernet
Standar:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Jenis Pemrosesan:	Store-and-Forward
Laju Filter Maju:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Memori Buffer Paket:	1 Mbit
Panjang Paket Maks:	9K Bytes
Ukuran Tabel Alamat	2K Alamat MAC
Antarmuka
Konektor:	2 x RJ45
Port Optik:	1 x SC 1000Base-X
Listrik dan Mekanik
Daya Masukan:	12~48VDC, blok terminal 2-pin
Daya Keluaran	48VDC
Konsumsi Daya:	65W Maks.
Indikator LED:
PWR:	Status Daya
L/A:	Status TAUTAN Data
POE:	Status PoE
100M/1000M:	Status TAUTAN Fiber
Dimensi (PxLxT):	95 x 70 x 30 mm
Berat:	0.25Kg
Casing:	Casing Aluminium
Opsi Pemasangan:	DIN-Rail / Wall-mount
Lingkungan
Suhu Pengoperasian:	-40°C hingga 75°C (-40°F hingga 167°F)
Suhu Penyimpanan:	-40°C hingga 85°C (-40°F hingga 185°F)
Kelembaban Relatif:	5% hingga 95% non-kondensasi
MTBF	> 200.000 jam
Persetujuan Peraturan
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Kelas A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Informasi Pemesanan

Model	Deskripsi
LNK-IMC1200GP	Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, Port Fiber SC, Multimode, 850nm, 550m
LNK-IMC1200GP-20	Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, Port Fiber SC, Mode Tunggal, 1310nm, 20km
LNK-IMC1200GPS-20	Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, Port Fiber SC, Mode Tunggal Serat Tunggal, 1310/1550nm, 20km
Opsi Pemasangan	► Braket DIN-Rail Default terpasang; Braket Wall Mount disertakan.
Opsi Daya	► Catu Daya 75W/1.6A 48VDC. Kabel Terbuka untuk Blok Terminal
Opsi Daya	► Catu Daya harus dibeli secara terpisah.
