Konverter Media PoE++ Mikro Industri 60W 2-Port 10/100BASE-T dan 1-Port 100BASE-FX

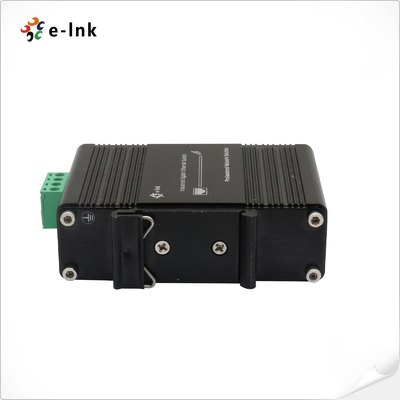

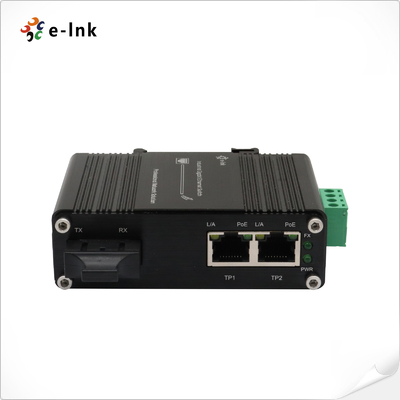

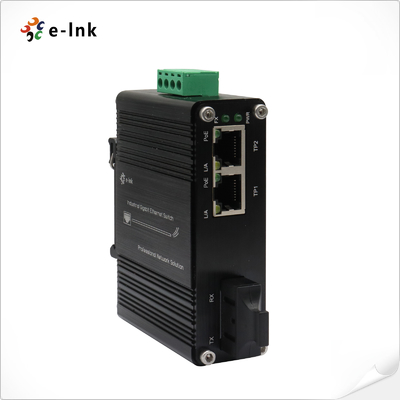

Gambar besar : Konverter Media PoE++ Mikro Industri 60W 2-Port 10/100BASE-T dan 1-Port 100BASE-FX

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC1200P60 Series

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1PCS
Harga:	negotiable
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Kontak

Detil Deskripsi produk

Connector:	2 x RJ45	Optical Port:	1 x SC 100Base-FX
Input Power:	48~57VDC, 2-pin terminal block	Output Power:	48VDC
Dimensions (WxDxH):	95 x 70 x 30 mm	Weight:	0.25Kg

Mini Industrial 1-Port 100Base-FX ke 2-Port 10/100Base-T 60W PoE++ Media Converter

Gambaran umum

Seri LNK-IMC1200P60 menyediakan konversi media antara 2-Port 10/100BASE-T dan 1-Port

Fiber 100BASE-FX. Port Ethernet mendukung PoE (Power Sourcing Equipment) bertenaga tinggi 60W

Ini adalah produk yang keras dengan suhu operasi yang luas.

port Ethernet mendukung baik half-duplex

dan mode full-duplex. desain hardware yang kokoh memastikan bahwa peralatan Ethernet Anda dapat menahan

LNK-IMC1200P60 Series mudah dipasang di rel DIN atau di

kotak distribusi.

Fitur

Pemanfaatan daya blok terminal 48 ~ 57VDC

¢ Mendukung instalasi DIN-Rail & Wall-mount

-40°C sampai 75°C (-40°F sampai 167°F)

¢ IEEE802.3af/at sesuai

️ Hingga 60W daya di atas 4 pasang

Dukungan Full/Half-duplex, Auto-negotiation

IEEE 802.3az Ethernet hemat energi (EEE)

2 port 10/100BASE-T RJ45 dengan fungsi MDI/MDI-X otomatis

1 port 100Base-FX SC

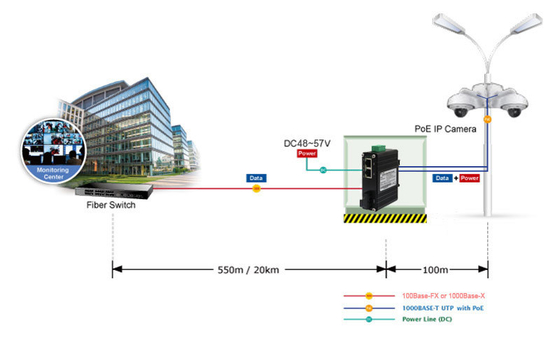

Aplikasi

Konverter Media PoE++ Mikro Industri 60W 2-Port 10/100BASE-T dan 1-Port 100BASE-FX 0

Indeks Teknis

Ethernet
Standar:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3x Full duplex dan kontrol aliran
	IEEE 802.3az Ethernet hemat energi (EEE)
	IEEE802.3af Daya melalui Ethernet
	IEEE802.3at Power over Ethernet
Jenis pengolahan:	Penyimpanan dan Pembebasan
Kecepatan Filter Ke depan:	14,880pps (10Mbps)
Kecepatan Filter Ke depan:	148,800pps (100Mbps)
Memori Buffer Paket:	128K bit
Panjang paket maksimum:	1522 Bytes
Ukuran tabel alamat	Alamat MAC 1K
Antarmuka
Konektor:	2 x RJ45
Pelabuhan optik:	1 x SC 100Base-FX
Listrik dan Mekanik
Daya Masuk:	48 ~ 57VDC, blok terminal 2-pin
Kekuatan output	48VDC
Konsumsi daya:	125W Max.
Indikator LED:
PWR:	Status Daya
L/A:	Status Data LINK
POE:	Status PoE
100M/1000M:	Fiber LINK Status
Dimensi (WxDxH):	95 x 70 x 30 mm
Berat:	0.25kg
Casing:	Kasus aluminium
Opsi pemasangan:	DIN-Rail / Wall-mount
Lingkungan
Suhu operasi:	-40°C sampai 75°C (-40°F sampai 167°F)
Suhu penyimpanan:	-40°C sampai 85°C (-40°F sampai 185°F)
Kelembaban relatif:	5% sampai 95% tidak kondensasi
MTBF	> 200.000 jam
Persetujuan Peraturan
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Kelas A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Peningkatan) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Informasi Pemesanan

Model	Deskripsi
LNK-IMC1200P60	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, Port Serat SC, Mode Tunggal, 1310nm, 20km
LNK-IMC1200P60S-20	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Opsi pemasangan	️ DIN-Rail Bracket default dipasang; Wall Mount Bracket disertakan.
Pilihan Daya	Sumber Daya 120W/2.5A 48VDC.
Pilihan Daya	Suplai listrik harus dibeli secara terpisah.
