Mini Industria 60W PoE++ Media Converter Bisa Menghadapi Kondisi Industri yang Menuntut

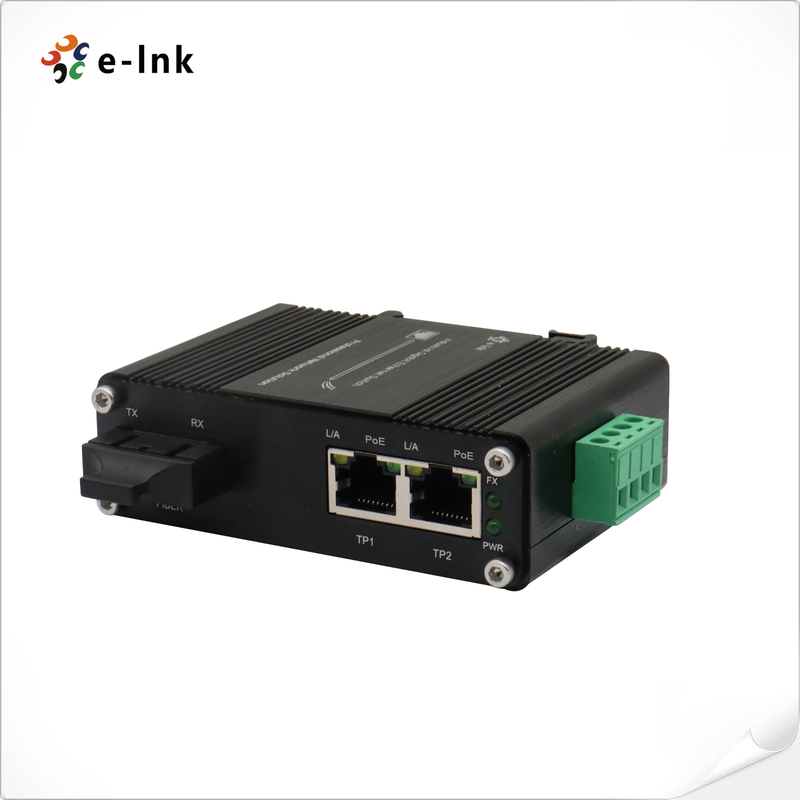

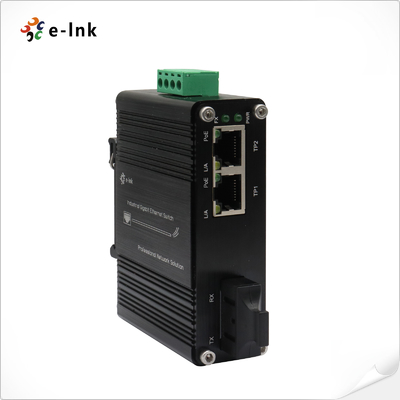

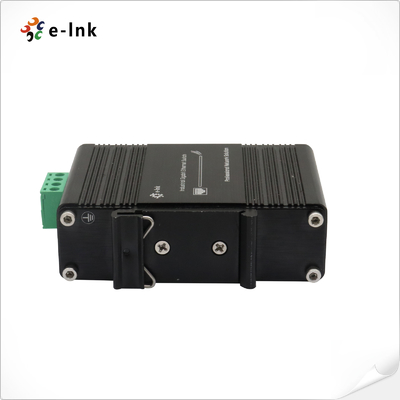

Gambar besar : Mini Industria 60W PoE++ Media Converter Bisa Menghadapi Kondisi Industri yang Menuntut

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC1200GP60 Series

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pcs
Harga:	To be negotiated
Kemasan rincian:	Paket Ekspor Standar POE Fiber Media Converter
Waktu pengiriman:	5-12hari kerja
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Menyediakan kemampuan:	1000 PCS/BULAN

Kontak

Detil Deskripsi produk

Konektor:	2xRJ45	Port optik:	1 x SC 1000Base-X
Daya masukan:	48~57VDC, blok terminal 2-pin	Kekuatan output:	48VDC
Dimensi (PxLxT):	95x70x30 mm	Berat badan:	0.25kg

Mini Industrial 1-Port 1000X ke 2-Port 10/100/1000Base-T60W PoE++ Media Converter

Gambaran umum

Seri LNK-IMC1200GP60 menyediakan konversi media antara 2-Port 10/100/1000BASE-T dan

1-port 1000BASE-X Fiber. port Ethernet mendukung 60W daya tinggi PoE (Power Sourcing

Peralatan) yang sesuai dengan standar IEEE802.3at.

kisaran suhu dari -40°C sampai 75°C, dan rumah aluminium yang keras.

desain perangkat keras yang tangguh memastikan bahwa peralatan Ethernet Anda

LNK-IMC1200GP60 Seri mudah dipasang pada DIN

Kereta api atau dalam kotak distribusi.

Fitur

Pemanfaatan daya blok terminal 48 ~ 57VDC

¢ Mendukung instalasi DIN-Rail & Wall-mount

-40°C sampai 75°C (-40°F sampai 167°F)

¢ IEEE802.3af/at sesuai

️ Hingga 60W daya di atas 4 pasang

Dukungan Full/Half-duplex, Auto-negotiation

IEEE 802.3az Ethernet hemat energi (EEE)

2 port 10/100/1000BASE-T RJ45 dengan fungsi MDI / MDI-X otomatis

1 port 1000Base-X SC

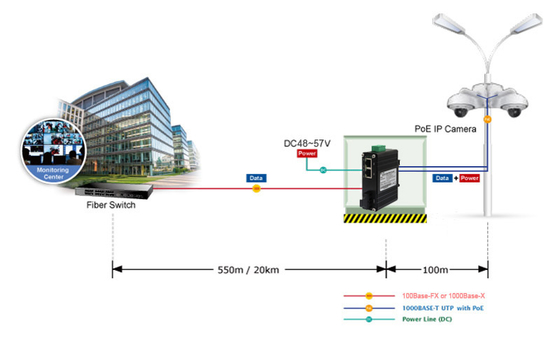

Aplikasi

Mini Industria 60W PoE++ Media Converter Bisa Menghadapi Kondisi Industri yang Menuntut 0

Indeks Teknis

Ethernet
Standar:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Ethernet hemat energi (EEE)
	IEEE802.3af Daya melalui Ethernet
	IEEE802.3at Power over Ethernet
Jenis pengolahan:	Penyimpanan dan Pembebasan
Kecepatan Filter Ke depan:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Memori Buffer Paket:	1 Mbit
Panjang paket maksimum:	9K Bytes
Ukuran tabel alamat	Alamat MAC 2K
Antarmuka
Konektor:	2 x RJ45
Pelabuhan optik:	1 x SC 1000Base-X
Listrik dan Mekanik
Daya Masuk:	48 ~ 57VDC, blok terminal 2-pin
Kekuatan output	48VDC
Konsumsi daya:	125W Max.
Indikator LED:
PWR:	Status Daya
L/A:	Status Data LINK
POE:	Status PoE
100M/1000M:	Fiber LINK Status
Dimensi (WxDxH):	95 x 70 x 30 mm
Berat:	0.25kg
Casing:	Kasus aluminium
Opsi pemasangan:	DIN-Rail / Wall-mount
Lingkungan
Suhu operasi:	-40°C sampai 75°C (-40°F sampai 167°F)
Suhu penyimpanan:	-40°C sampai 85°C (-40°F sampai 185°F)
Kelembaban relatif:	5% sampai 95% tidak kondensasi
MTBF	> 200.000 jam
Persetujuan Peraturan
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Kelas A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Peningkatan) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Informasi Pemesanan

Model	Deskripsi
LNK-IMC1200GP60	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC1200GP60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, Port Serat SC, Mode Tunggal, 1310nm, 20km
LNK-IMC1200GP60S-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Opsi pemasangan	️ DIN-Rail Bracket default dipasang; Wall Mount Bracket disertakan.
Pilihan Daya	Sumber Daya 120W/2.5A 48VDC.
Pilihan Daya	Suplai listrik harus dibeli secara terpisah.
