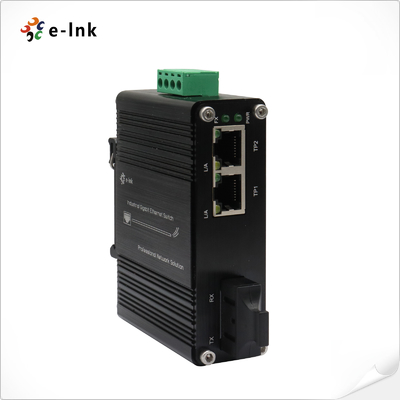

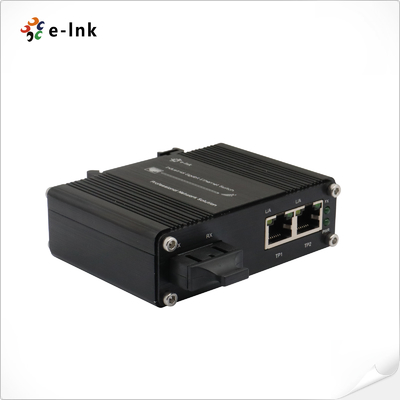

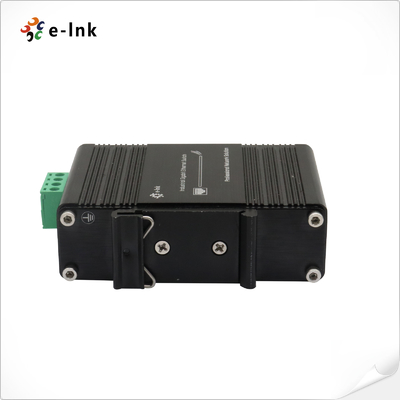

Konverter Media Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Pemasangan di Dinding

Gambar besar : Konverter Media Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Pemasangan di Dinding

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC1200G Series

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1PCS
Harga:	negotiable
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Kontak

Detil Deskripsi produk

Connector:	2 x RJ45	Optical Port:	1 x SC 1000Base-X
Input Power:	12~48VDC, 2-pin terminal block	Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg	Casing:	Aluminum Case

Konverter Media Mini Industrial 2-Port 10/100/1000Base-TX ke 1000Base-X

Ikhtisar

Seri LNK-IMC1200G menyediakan konversi media antara 2-Port 10/100/1000BASE-T dan

1-Port 1000BASE-X Fiber. Ini adalah produk yang diperkeras dengan rentang suhu pengoperasian yang luas dari -40°C

hingga 75°C, dan rumah aluminium yang kokoh. Port Ethernet mendukung mode half-duplex dan

mode full-duplex. Desain perangkat keras yang kokoh memastikan bahwa peralatan Ethernet Anda dapat bertahan

kondisi industri yang menantang, dan mudah dipasang pada rel DIN atau di kotak distribusi.

Fitur

► Input Daya Blok Terminal 12~48VDC

► Mendukung instalasi DIN-Rail & Wall-mount

► Diperkeras secara lingkungan -40°C hingga 75°C (-40°F hingga 167°F) suhu pengoperasian

► Mendukung Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Ethernet Hemat Energi (EEE)

► 2-Port 10/100/1000BASE-T RJ45 dengan fungsi auto MDI / MDI-X

► 1-Port 1000Base-X SC

Aplikasi

Konverter Media Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Pemasangan di Dinding 0

Indeks Teknis

Ethernet
Standar:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE 802.3az Ethernet Hemat Energi (EEE)
	IEEE802.3z 1000Base-X
Jenis Pemrosesan:	Store-and-Forward
Laju Filter Maju:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Memori Buffer Paket:	1 Mbit
Panjang Paket Maks:	9K Bytes
Ukuran Tabel Alamat	2K Alamat MAC
Antarmuka
Konektor:	2 x RJ45
Port Optik:	1 x SC 1000Base-X
Listrik dan Mekanik
Daya Masukan:	12~48VDC, blok terminal 2-pin
Konsumsi Daya:	5W Maks.
Indikator LED:
PWR:	Status Daya
L/A:	Status TAUTAN Data
SPD:	Status Ethernet
100M/1000M:	Status TAUTAN Fiber
Dimensi (PxLxT):	95 x 70 x 30 mm
Berat:	0.25Kg
Casing:	Casing Aluminium
Opsi Pemasangan:	DIN-Rail / Wall-mount
Lingkungan
Suhu Pengoperasian:	-40°C hingga 75°C (-40°F hingga 167°F)
Suhu Penyimpanan:	-40°C hingga 85°C (-40°F hingga 185°F)
Kelembaban Relatif:	5% hingga 95% non-kondensasi
MTBF	> 200,000 jam
Persetujuan Peraturan
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Kelas A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Informasi Pemesanan

Model	Deskripsi
LNK-IMC1200G	Konverter Media Industrial Mini, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, Port Fiber SC, Multimode, 850nm, 550m
LNK-IMC1200G-20	Konverter Media Industrial Mini, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, Port Fiber SC, Mode Tunggal, 1310nm, 20km
LNK-IMC1200G-S20	Konverter Media Industrial Mini, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, Port Fiber SC, Mode Tunggal, Serat Tunggal, 1310/1550nm, 20km
Opsi Pemasangan	► Braket DIN-Rail Default terpasang; Braket Wall Mount disertakan.
Opsi Daya	► Catu Daya 24W/1A 24VDC. Kabel Terbuka untuk Blok Terminal
Opsi Daya	► Catu Daya harus dibeli secara terpisah.
