LNK-INS301-36V Industrial Gigabit Ethernet PoE Splitter with 36VDC Output

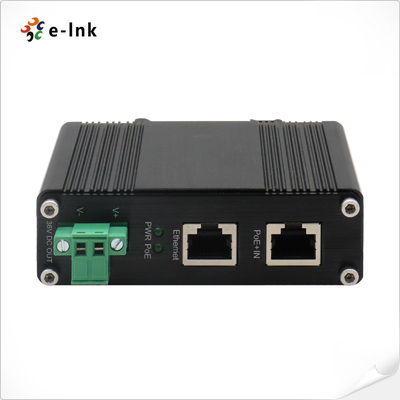

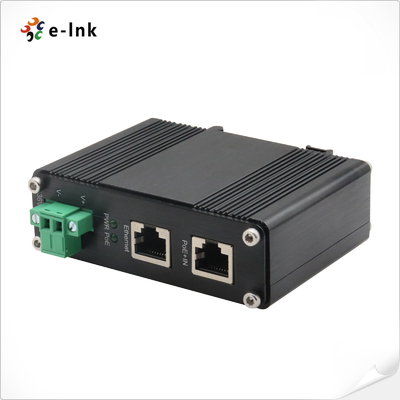

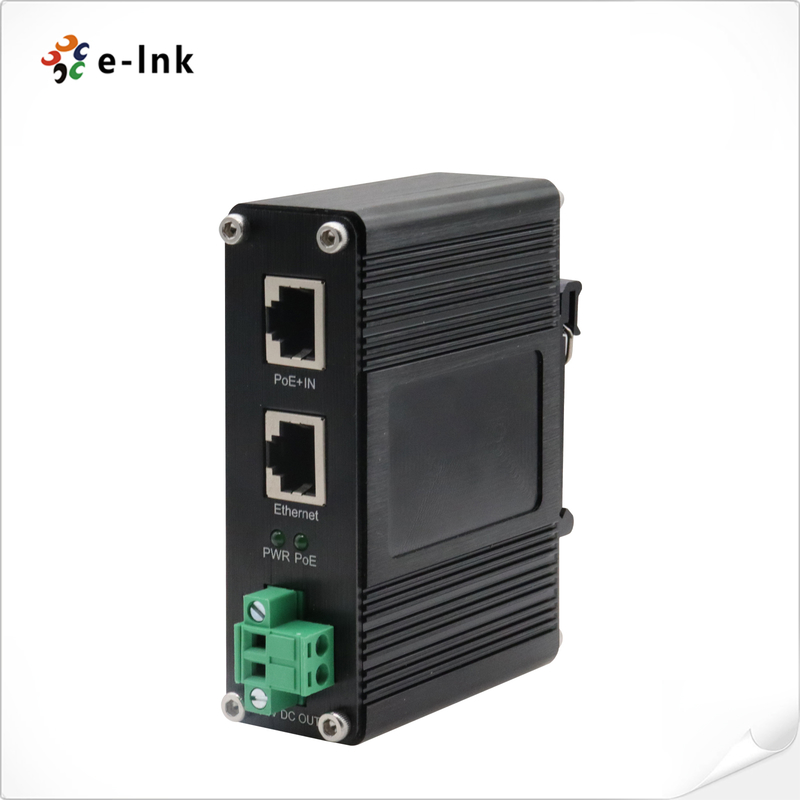

Gambar besar : LNK-INS301-36V Industrial Gigabit Ethernet PoE Splitter with 36VDC Output

Detail produk:

Tempat asal:	Cina
Nama merek:	E-link
Sertifikasi:	CE/FCC/Rohs
Nomor model:	LNK-INS301-36V

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pcs
Harga:	negotiable
Kemasan rincian:	Gigabit Ethernet Poe Splitter Paket Ekspor Standar
Waktu pengiriman:	3-10 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union, MoneyGram
Menyediakan kemampuan:	2000 per bulan

Kontak

Detil Deskripsi produk

Kekuatan output:	20W 36VDC (Blok Terminal)	Konsumsi Daya:	25W maks
Dimensi (PxLxT):	95x70x30 mm	Berat badan:	0.25kg
Selubung:	Kotak Aluminium	Pemasangan:	DIN-Rail/Dinding-pemasangan
Menyoroti:	36V Industrial PoE Splitter , Industrial Gigabit Ethernet PoE Splitter

Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 36VDC

Overview

The LNK-INS301-36V series is an industrial-grade Gigabit Ethernet PoE splitter that transmits data through an RJ-45 port and outputs 36V DC power through a terminal block to power non-PoE devices. As a powered device (PD), this device can be powered by a PoE switch or the LNK-INJ301 PoE injector compliant with the IEEE802.3af/at standard. It supports simultaneous data and power transmission at speeds up to Gigabit and a transmission distance of up to 100 meters. This plug-and-play device requires no configuration, offers flexible installation, reliable operation, and effectively reduces deployment costs, making it suitable for a variety of industrial applications.

Features

► Splits power and data from PoE Input

► One RJ-45 PoE Port (Data & Power In)

► One RJ-45 Port (Data Out)

► One 24VDC Output (2-pin Terminal Block)

► Support IEEE802.3af/at PoE

► Support 10/100/1000Base-T

► Distance up to 100 meters

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Interface:	“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
	“Data” Out Port: 2 x RJ-45 10/100/1000Base-T
	DC Out/In Plug Connector: 1 removable 5-Pin terminal block
Power over Ethernet
PoE Standard:	IEEE 802.3af/at Power over Ethernet
Number of devices that can be powered:	1 (DC36V) (Vary on device’s power requirement; cannot be over 20 watts.)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Power Output:	20W 36VDC (Terminal Block)
Power Consumption:	25W Max.
LED Indicators:
PWR:	36VDC Power OUT
POE:	PoE Power IN
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Dimension & Size

Ordering Information

Model	Description
LNK-INS301-36V	Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 36VDC, maximum output of 20W at 36VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

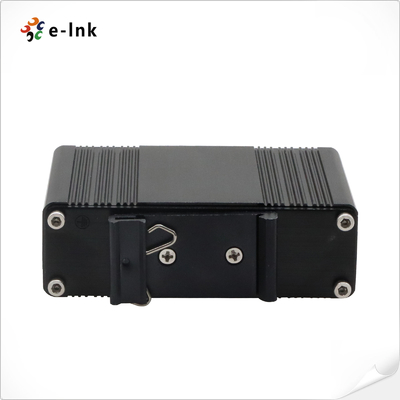

Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
