Industrial PoE++ Injector, 100W, Voltage Booster, DC 12-48V, IEEE 802.3bt Standard

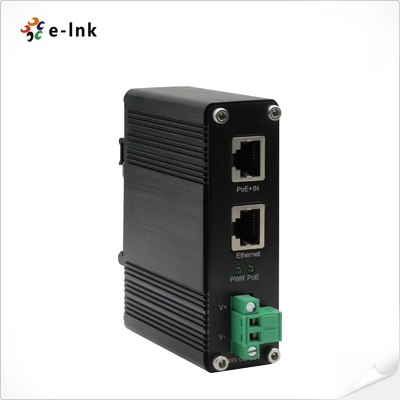

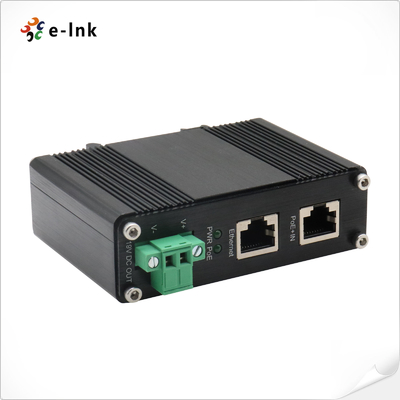

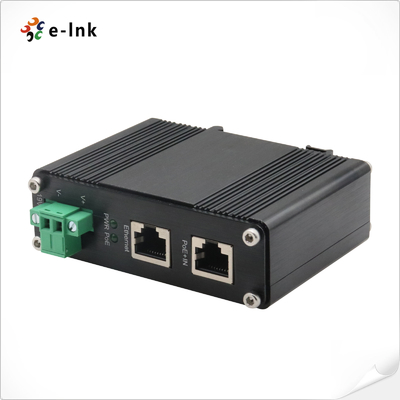

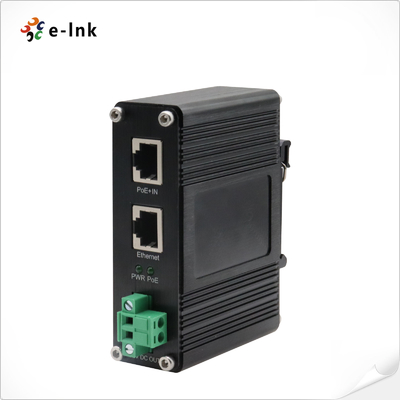

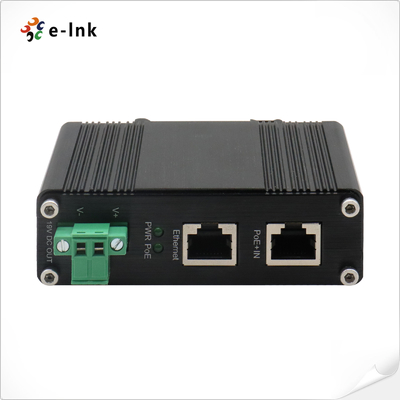

Gambar besar : Industrial PoE++ Injector, 100W, Voltage Booster, DC 12-48V, IEEE 802.3bt Standard

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ301-100

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pcs
Harga:	negotiable
Packaging Details:	Gigabit PoE Injector Standard Export Package
Delivery Time:	3~10 working days
Syarat-syarat pembayaran:	Paypal, TT, Western Union, Money Gram, Alipay
Menyediakan kemampuan:	2000 pcs/bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Injektor PoE Industri	Daya Input:	12 ~ 48V DC (Blok Terminal)
Power Consumption:	100W Max	Berat:	0,25kg
Dienmsion (WXDXH):	95 x 70 x 30 mm	Selubung:	Kotak Aluminium IP40
Menyoroti:	DC 48V PoE Injector , Voltage Booster Industrial PoE Injector , IEEE 802.3bt Industrial PoE Injector

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Industrial Gigabit PoE Injector Overview

The LNK-INJ301-100 is an industrial-grade, hardened, single-port Gigabit PoE++ injector

that supports IEEE 802.3bt and offers a maximum output power of 100W . It supports

10/100/1000Base-T auto-sensing, features a wide 12-48V DC input voltage range ,

and includes a built-in voltage boost function to ensure stable performance even when

powering devices over long distances. It connects non-PoE switches to PoE end devices,

such as network cameras and wireless access points, with a transmission distance of

up to 100 meters . Its rugged design is suitable for harsh industrial environments and

complies with IEEE 802.3ab standards.

Industrial Gigabit PoE Injector Features

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 100W PoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► 12~48V DC wide range power input with power booster function

► Up to 100-watt PoE budget (48VDC), 100-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Supports DIN-Rail and Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial Gigabit PoE Injector Technical Indexes

Ethernet
Standards:	IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Power over Ethernet:
Standard:	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
PoE Budget:	Up to 100-watt PoE budget (48VDC) Up to 100-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	IP40 Aluminum Case

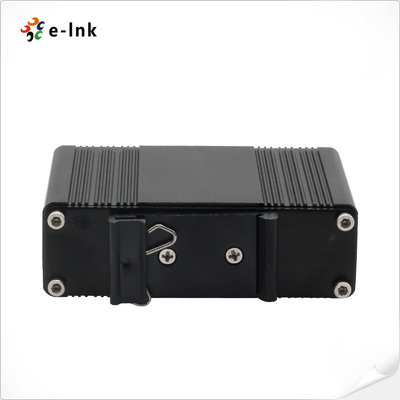

Mounting Options:	DIN-Rail / Wall-mount
Standard Accessories
Package Contents	LNK-INJ301-100
	User's manual
	Wall-mount kit
	DIN-mount kit
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Industrial Gigabit PoE InjectorOrdering Information

Model	Description
LNK-INJ301-100	Hardened Gigabit 1-port Ethernet Input + 1-port 100W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

Industrial Gigabit PoE Injector Application

Industrial PoE++ Injector, 100W, Voltage Booster, DC 12-48V, IEEE 802.3bt Standard 0
