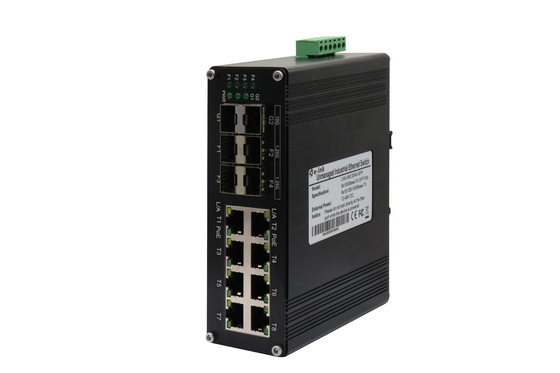

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Hardened Ethernet Switch

Gambar besar : Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Hardened Ethernet Switch

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC2X4S8GP Series

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Harga:	negotiable
Packaging Details:	SFP Ethernet Switch Standard Export Package
Waktu pengiriman:	2 ~ 7 hari kerja
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Menyediakan kemampuan:	5000pcs per bulan

Kontak

Detil Deskripsi produk

Connector:	8 x RJ45	Optical Port:	4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
Suhu operasi:	-40 ° C hingga 80 ° C (-40 ° F hingga 176 ° F)	Daya Input:	48 ~ 57VDC, daya redundan (blok terminal 6-pin)
Dimensi (WXDXH):	149x114x50 mm	Opsi pemasangan:	DIN-RAIL MOUNT
Menyoroti:	802.3at Industrial Ethernet Switch , 10/100/1000T Industrial Ethernet Switch

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch

Overview
The LNK-IMC2X4S8GP Series is a hardened industrial Ethernet switch designed for high-performance
and versatile connectivity in demanding environments. It combines 8 PoE+ ports (10/100/1000Base-T,
IEEE 802.3at) with 4 SFP ports (1000Base-X) and 2 SFP+ ports (10G Base-SR/LR) to support a mix of
copper and fiber connections. The switch offers 8 RJ45 ports for standard Ethernet devices (auto
MDI/MDI-X, Full/Half duplex) and 6 fiber ports (1000Base-X and 10G SFP+), compatible with single-mode
or multi-mode fibers (1 or 2 core). This configuration enables seamless integration of IP cameras, wireless
access points, and other network devices across remote locations, leveraging both gigabit and 10G speeds.
Its managed features and rugged design ensure reliable operation in industrial settings, making it an optimal
solution for scalable, resilient networks requiring centralized power distribution and long-distance fiber
connectivity.
Features

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

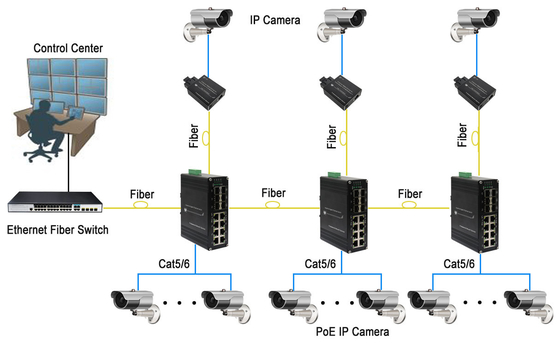

Application
Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Hardened Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3ae 10GBase-R
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
	1,488,000,000pps (10000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

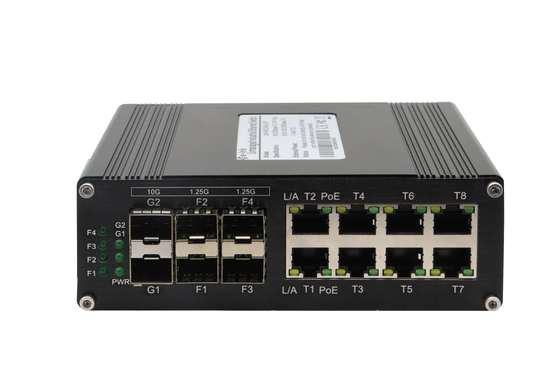

LED Indicators:
Power:	Power Status
Ethernet(Per Port):	Link/Activity
PoE (Optional)	PoE Status
Fiber:	Gigabit SFP Port: F1~F4
Fiber:	10G SFP+ Port: G1, G2
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC2X4S8GP	Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
