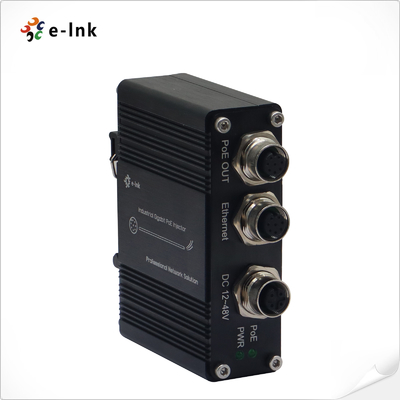

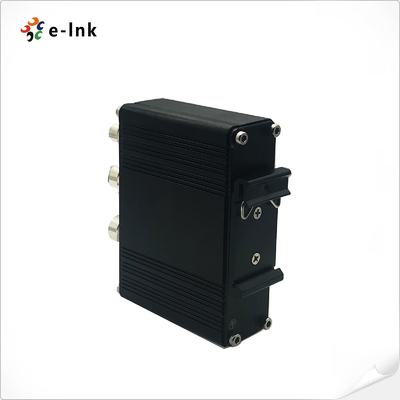

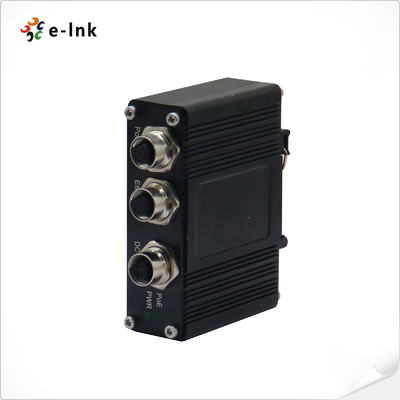

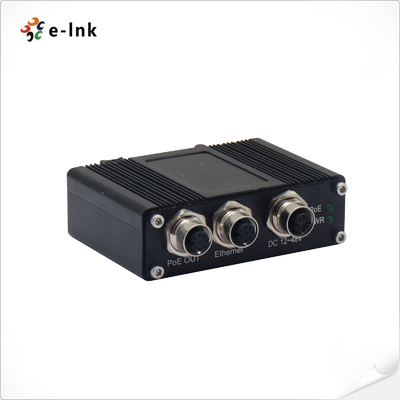

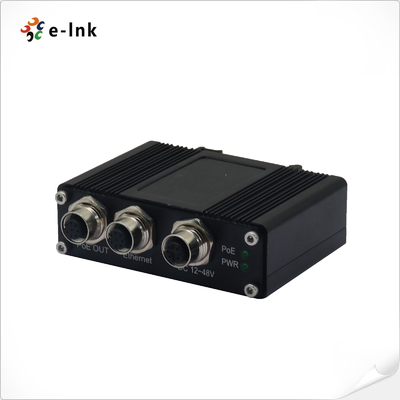

Industrial PoE Injector, EN50155 Standard, M12 Interface, Wide Voltage 12~48V DC

Gambar besar : Industrial PoE Injector, EN50155 Standard, M12 Interface, Wide Voltage 12~48V DC

Detail produk:

Tempat asal:	CINA
Nama merek:	E-link
Sertifikasi:	CE/FCC/Rohs
Model Number:	LNK-INJ301-90-M12

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pcs
Harga:	negotiable
Kemasan rincian:	Paket Ekspor Standar Injector Poe Industri
Delivery Time:	3-10 working days
Payment Terms:	T/T, Western Union, MoneyGram, PayPal
Supply Ability:	10000 per Month

Kontak

Detil Deskripsi produk

Daya masukan::	12 ~ 48V DC pada 4-pin wanita M12 A-CODING	Konsumsi daya::	95W Maks
Standard：:	IEEE802.3af/at/bt	Pelabuhan::	Konektor M12 (kode A M12 betina 8-pin)
Dimensi (wxdxh)::	95 x 70 x 30 mm	Berat::	0,25kg
Menyoroti:	M12 PoE Injector , EN50155 PoE Injector , Industrial PoE Injector

EN50155 Industrial 10/100/1000M 90W PoE Injector with M12 connector

PoE Injector Overview

The E-link LNK-INJ301-90-M12 is an industrial-grade PoE injector compliant with the EN50155 standard , designed for harsh industrial applications such as railways, rolling stock, and rail transit. Compliant with the IEEE 802.3bt standard , it provides one 10/100/1000Base-T(X) PoE output port and features intelligent detection , supplying power only when a valid PoE device is detected, preventing damage to non-PoE devices. Its M12 connector ensures vibration and anti-loosening, making it suitable for high-shock and vibration environments. It supports a wide input voltage range of 12-48V DC , making it suitable for high-availability applications. Its high reliability, stable power supply, and intelligent protection make it an ideal choice for applications such as rail transit, vehicle networks, and industrial automation.

PoE Injector Features

► 12~48V DC Power Input

► Fully compliant with IEEE802.3af/at/bt

► Support 10/100/1000Base-TX for power and data output

► Support DIN-Rail & Wall-mount installation

► Use Type-A M12 connectors to ensure tight and robust connections

► Small Size: 95 x 70 x 30mm

► Weight: 0.25KG

► Aluminum Case

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

PoE Injector Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T
Connector:	2x M12 connector (8-pin female M12 A-coding)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48V DC on 4-pin female M12 A-Coding
Power Consumption:	95W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at/bt
Port:	M12 connector (8-pin female M12 A-coding)
Max. Power per Port:	90W Max
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

PoE Injector Dimension & Size

PoE Injector Order Information

Model	Description
LNK-INJ301-90-M12	EN50155 Industrial 1-port 10/100/1000M 90W M12 PoE Injector 12~48V DC Power Input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

PoE Injector Application

Industrial PoE Injector, EN50155 Standard, M12 Interface, Wide Voltage 12~48V DC 1
