Industrial 8-Port 10/100/1000Base-T + 6-Port 1000Base-X SFP Hardened Ethernet Switch

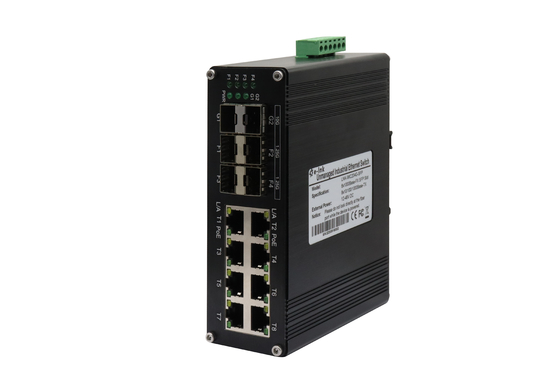

Gambar besar : Industrial 8-Port 10/100/1000Base-T + 6-Port 1000Base-X SFP Hardened Ethernet Switch

Detail produk:

Tempat asal:	CINA
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Nomor model:	LNK-IMC608GP-SFP

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Harga:	negotiable
Kemasan rincian:	SFP Ethernet Switch Paket Ekspor Standar
Delivery Time:	2~7 working days
Syarat-syarat pembayaran:	Paypal, TT, Western Union, Money Gram, Alipay
Supply Ability:	5000pcs per month

Kontak

Detil Deskripsi produk

Konektor:	8xRJ45	Optical Port:	6 x 1000Base-X SFP
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	Dimensi (WXDXH):	149x114x50 mm
Weight:	0.55Kg	Selubung:	Kasus aluminium
Menyoroti:	Industrial 6-Port Ethernet Switch , Industrial 8-Port Ethernet Switch , Industrial Hardened Ethernet Switch

Industrial 8-Port 10/100/1000T + 6-Port 1000X SFP Ethernet Switch

Overview

The LNK-IMC608G-SFP Series is a hardened industrial Ethernet switch engineered for reliable and

flexible network connectivity in challenging environments. It features 8 10/100/1000Base-T RJ45

ports for standard Ethernet devices and 6 1000Base-X SFP ports for fiber connections, enabling a

mix of copper and fiber deployments. The switch offers 8 TP (RJ45) ports with auto MDI/MDI-X and

Full/Half duplex mode, alongside 6 fiber ports (1000Base-X) capable of single-mode or multi-mode

fiber deployment (1 or 2 core). This design allows seamless integration of devices like IP cameras

and wireless access points across remote locations, leveraging gigabit speeds and long-distance fiber

links. Its hardened construction and managed capabilities ensure stable performance and easy

deployment, making it an ideal choice for industrial networks requiring scalable, secure connectivity

between distributed devices.

Features

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► 8x10/100/1000Base-T + 6x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

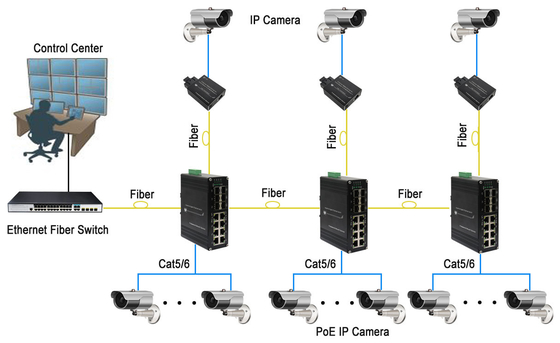

Application

Industrial 8-Port 10/100/1000Base-T + 6-Port 1000Base-X SFP Hardened Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	6 x 1000Base-X SFP
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F1~F6
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC608G-SFP	Industrial 8-Port 10/100/1000T + 6-Port 1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
