Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender
Industrial PoE Extender Overview
The LNK-IPE104-30 is an industrial-grade, 1-input, 4-output PoE extender designed for
point- to-multipoint PoE applications . It draws up to 30W of power from one 802.3at PoE+ input port
and provides a total of 25W of PoE power to four PoE output ports . This device extends
the Gigabit Ethernet data and PoE power range from the standard 100 meters to 200 meters ,
and can simultaneously power up to four powered devices (PDs) such as network cameras
and wireless access points. Requiring no external power supply, the LNK-IPE104-30 supports
plug-and-play operation, easily expanding the number of PoE ports and reducing cabling costs.
It is suitable for a variety of scenarios, including security surveillance, wireless network coverage,
and industrial automation.
Industrial PoE Extender Features
► 10/100/1000Mbps Ethernet Ports
► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
► IP40-rated aluminum case
► Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices
► Extends an additional 100m for PoE network. Daisy chain support connection up
to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)
► Support DIN-Rail & Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

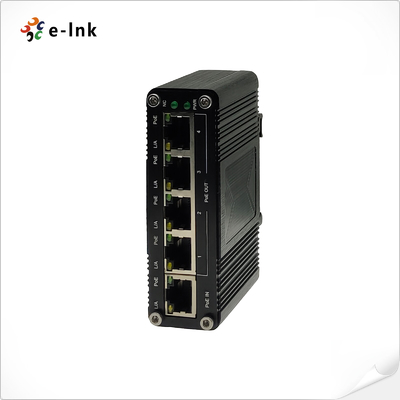

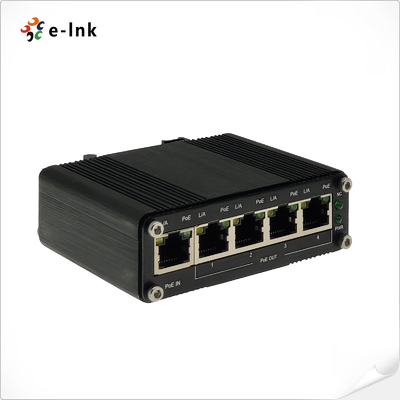

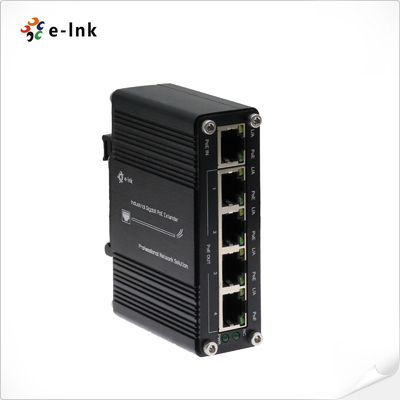

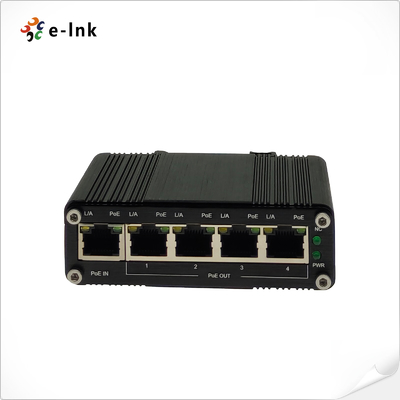

Industrial PoE Extender Panel
Industrial PoE Extender Technical Indexes
| Ethernet Port |
| PoE Input Port |
10/100/1000Base-TX RJ45,
IEEE 802.3at PoE Input
Input Power 50~57V DC, Max 30W
|
| PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output
Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m
|
| Cascade connection |
Support 3 grade |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
|
| PoE Power Supply Type |
Mid-span and End-span |
| PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
| Switch Property |
| Standards |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
|
| Forwarding Modes |
Store and Forward |
| Transmission Distance |
100m |
| MAC Table |
8K |
| Switching Capacity |
10Gbps |
| Packet Forwarding Rate |
14.88Mpps |
| Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame |
10K bytes |
| Environment |
| Surge Immunity |
6KV, Standard: IEC6000-4-5 |
| ESD Protection |
6KV 1a Contact Discharge Level 3,
8KV 1b Air Discharge Level 3,
Standard: IEC61000-4-2
|
| Protection Level |
IP 40 |
| Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Operating Humidity |
0~95% (non-condensing) |
| Physical Parameter |
| Dimensions (WxDxH) |
95 x 70 x 30 mm |
| Weight |
0.25Kg |
| Casing |
Aluminum Case |
| Mounting Options |
DIN-Rail / Wall-mount |
| Certifications |
| Certifications |
CE, FCC, RoHS |
Industrial PoE Extender Ordering Information
| Model |
Description |
| LNK-IPE104-30 |
Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |

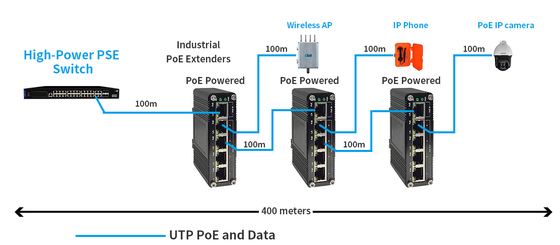

Industrial PoE Extender Application
