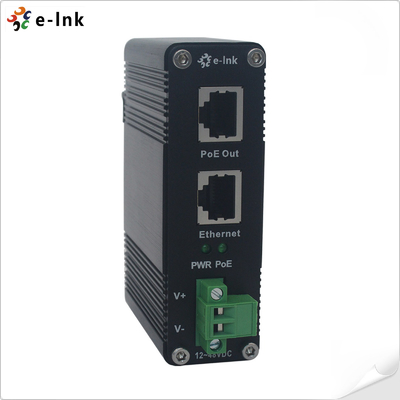

12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector

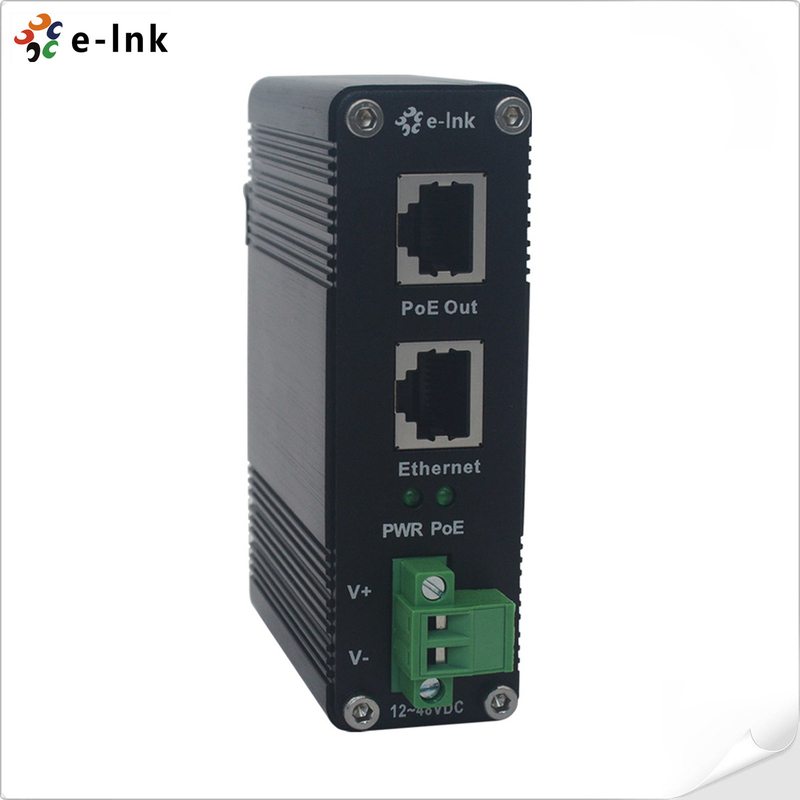

Gambar besar : 12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	E-link
Sertifikasi:	CE, ISO9001, RoHS, FCC
Nomor model:	LNK-INJ301-30
Dokumen:	E-link LNK-INJ301-30 Indust....0.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	$49-$55
Kemasan rincian:	Paket Ekspor Standar Gigabit Poe
Delivery Time:	2-7 days
Syarat-syarat pembayaran:	T/T, Western Union, Moneygram
Menyediakan kemampuan:	2000 pcs/bulan

Kontak

Detil Deskripsi produk

Input daya:	12-48V DC (Blok Terminal)	Standar Ethernet:	IEEE802.3AF/AT POWER Over Ethernet (POE)
Output daya maksimum per port:	Hingga 30W (mode B alternatif)	Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Konsumsi daya:	Maksimal 36W	Penetapan Pin PoE:	4/5 ((+) dan 7/8 ((-)
Menyoroti:	48V Industrial Gigabit PoE+ Injector , Power over Ethernet Gigabit PoE+ Injector

12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector

Overview

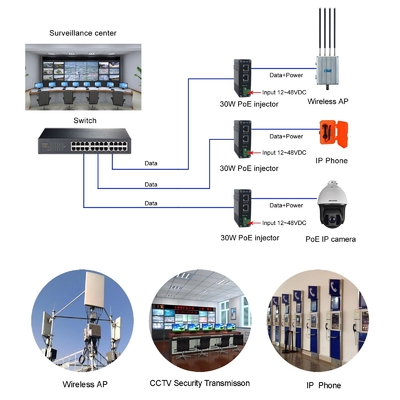

The LNK-INJ301-30 is a ruggedized Gigabit High Power PoE Injector designed to power

IEEE 802.3af/at PoE devices, such as cameras and access points, from a non-PoE LAN

switch within a 100-meter range. Both the Ethernet port (to connect to the switch) and the

PoE output port (to power PoE devices) support 10/100/1000Base-T speeds and comply

with IEEE 802.3ab and 802.3at standards. This PoE injector offers a flexible power

solution, with an input voltage range of 12-48VDC, making it ideal for high-availability

applications in harsh environments.

Features

12-48V DC power input

1 RJ45 Ethernet data input port + 1 RJ45 Power over Ethernet (PoE) output port

(Data + Power)

Compliant with IEEE802.3at PoE+ Power Sourcing Equipment

Supports 10/100/1000Base-TX Ethernet speeds

Includes a variety of LED indicators for PoE status monitoring

Rugged design with an operating temperature range of -40°C to 80°C (-40°F

to 176°F)

Compact dimensions: 95 x 70 x 30 mm

Durable aluminum alloy housing

Compatible with DIN-rail and wall-mount installation options

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ301-30	12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
