Hardened 2-Port Gigabit High Power PoE Injector for Industrial Use

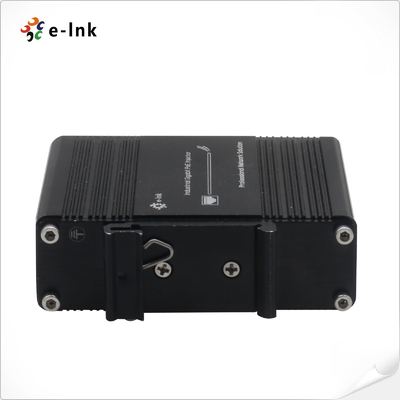

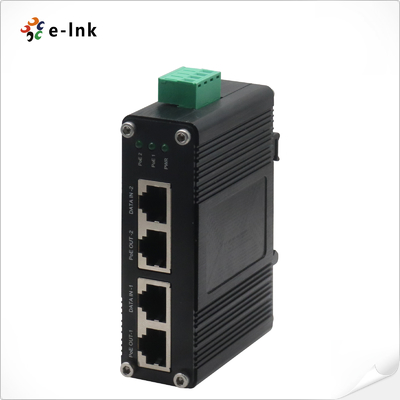

Gambar besar : Hardened 2-Port Gigabit High Power PoE Injector for Industrial Use

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC, ISO9001
Nomor model:	LNK-INJ302
Dokumen:	E-link LNK-INJ302 12-48VDC ....0.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pcs
Harga:	$59-$79
Kemasan rincian:	Paket Ekspor Standar Injector Gigabit Industrial
Waktu pengiriman:	3-7 hari
Syarat-syarat pembayaran:	T/T, Western Union, Moneygram
Menyediakan kemampuan:	2000 pcs/bulan

Kontak

Detil Deskripsi produk

Daya Input:	12-48V DC (Blok Terminal)	Konsumsi daya maksimum:	70W
Keluaran Daya PoE:	Hingga 60W per port (mode B alternatif)	Suhu operasi:	-40 ° C hingga 80 ° C (-40 ° F hingga 176 ° F)
Perlindungan lonjakan:	1KV untuk port RJ45, 500W untuk input daya	Ukuran:	95 x 70 x 30 mm, berat 0,26 kg
Menyoroti:	2-Port Gigabit PoE Injector , High Power Industrial PoE Injector , Industrial PoE Injector

Hardened 2-Port Gigabit High Power PoE Injector for Industrial Use

Overview

The LNK-INJ302 is a ruggedized 2-port Gigabit High Power PoE Injector designed to

connect IEEE 802.3af/at PoE devices, such as cameras and access points, to a non-PoE

LAN switch within a 100-meter range. Both the Ethernet port (for connecting to the switch)

and the PoE output port (for powering PoE devices) support 10/100/1000Base-T and comply

with IEEE 802.3ab and 802.3at standards. This injector provides a versatile power solution,

offering a wide input voltage range of 12-48VDC, making it ideal for high-availability industrial

applications.

Features

12~48VDC power supply input

2 RJ45 Ethernet data input ports + 2 RJ45 Power over Ethernet (PoE) output ports

(Data + Power)

Compliant with IEEE802.3at PoE+ Power Sourcing Equipment

Up to 60W PoE per port, with a total PoE output of less than 60W

Supports 10/100/1000Base-TX Ethernet speeds

Compatible with both DIN rail and wall-mount installation options

Includes multiple LED indicators for PoE status monitoring

Built for harsh environments with an operating temperature range of -40°C to 80°C (-40°F

to 176°F)

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	4x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	70W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.26Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
CE-EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ302	12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
