4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability

Gambar besar : 4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability

Detail produk:

Tempat asal:	CINA
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC, ISO9001
Nomor model:	LNK-106M
Dokumen:	E-link LNK-106M Mini 4K HDM....0.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pcs
Harga:	$129-$169
Kemasan rincian:	Kemasan Ekspres Standar Ekspres Fiber Optic
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram, Paypal
Menyediakan kemampuan:	1000pcs/bulan

Kontak

Detil Deskripsi produk

Dukungan resolusi:	Hingga 4kx2k (3840x2160)	Jarak Transmisi:	Hingga 300m (serat multimode)
Panjang gelombang:	850nm	Bandwidth:	10Gbps
Tipe serat:	Serat optik multimode dual-core	Aplikasi:	Hiburan rumah, sistem konferensi, papan nama digital, tampilan layar besar
Menyoroti:	4K UHD HDMI Optical Transceiver , Lossless Transmission HDMI Optical Transceiver , 4K UHD HDMI Optical Transceiver

4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability

Overview

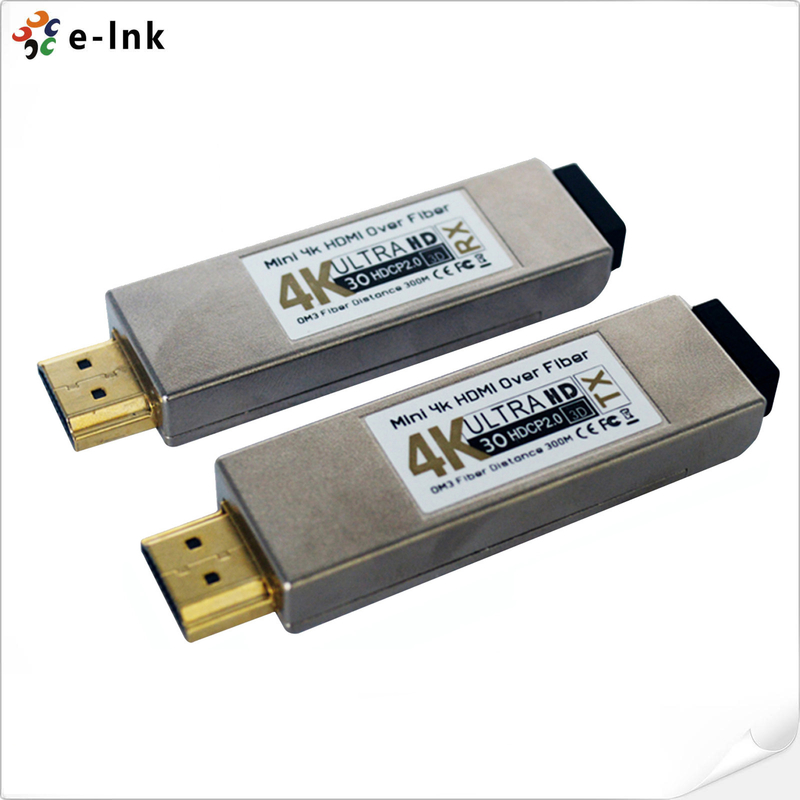

The 4K HDMI Optical Transceiver is a compact HDMI-over-fiber solution that enables

uncompressed, lossless HDMI 1.4a signal transmission over multimode optical fiber.

Supporting distances up to 300 meters at 850nm wavelength, it delivers stunning 4Kx2K

resolution. The transmitter module (Tx) converts the HDMI signal into a 10Gbps optical

stream, while the receiver module (Rx) restores it to HDMI format. Engineered for

high-performance AV distribution, the transceivers are RoHS compliant, lead-free, and ideal

for large displays, conferencing systems, and home theaters. Its robust design ensures

strong anti-interference performance and stable signal delivery.

Features

Supports HDMI 1.4a standard with uncompressed and lossless transmission

Transmits 4Kx2K resolution over multimode fiber up to 300 meters

Operates over dual optical fibers at 850nm with 10Gbps bandwidth

Strong anti-interference performance for signal stability

Plug-and-play design with no software configuration required

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Dynamic EDID	Plug & Play, no need to learn

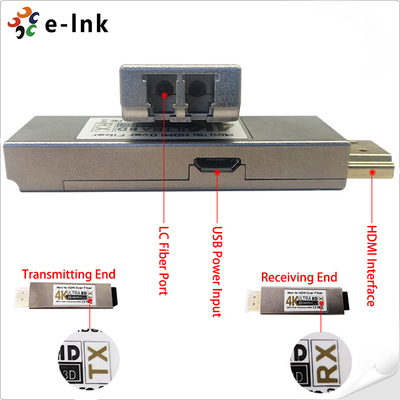

Fiber Connector	Double LC Receptacle
Transmission Distance	Multi Mode, up to 984ft (300M)
Operating Temperature	0°C to + 50°C
Storage Temperature	-20°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC
Dimension (WxDxH)	3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Power Supply	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Ordering Information

Item	Description

LNK-106M	Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
