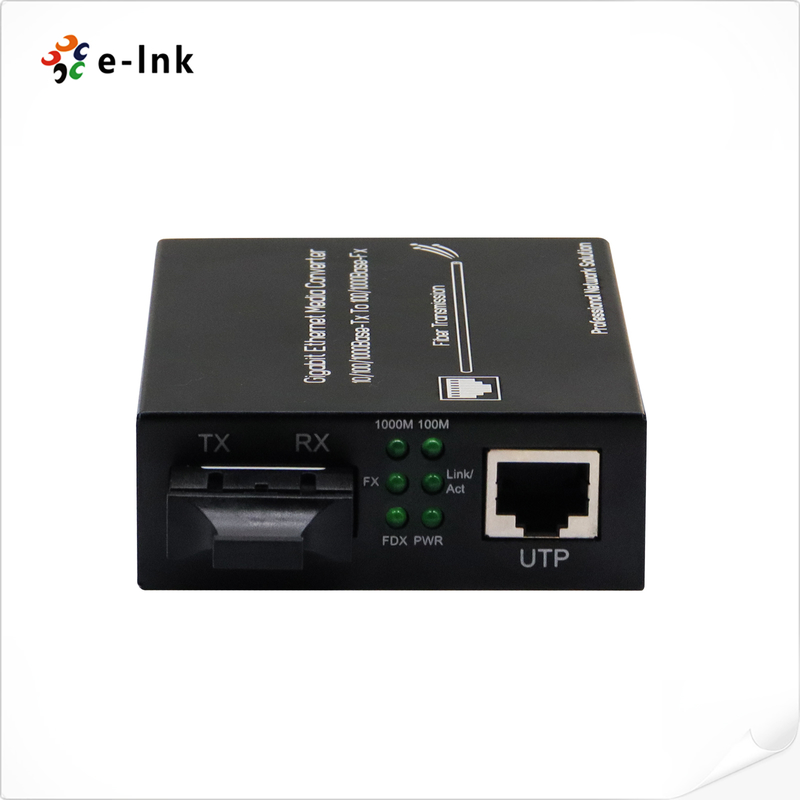

Gigabit Ethernet Media Converter with Multi-Mode and Single-Mode Fiber

Gambar besar : Gigabit Ethernet Media Converter with Multi-Mode and Single-Mode Fiber

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	E-link
Sertifikasi:	CE, FCC, RoHS, ISO9001
Nomor model:	Seri LNK-3011
Dokumen:	E-link LNK-3011 Series Medi....1.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pcs
Harga:	$20-$165
Kemasan rincian:	Paket Ekspor Standar Konverter Media Ethernet
Waktu pengiriman:	2-9 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, Moneygram
Menyediakan kemampuan:	5000pcs per bulan

Kontak

Detil Deskripsi produk

Jarak Transmisi:	Hingga 80 km (serat ganda/tunggal), 100m (CAT5)	Pilihan Panjang Gelombang:	850nm / 1310nm / 1550nm
Ports:	1x RJ45 (STP/UTP CAT5), port optik 1x (SC/FC/LC/SFP)	Konsumsi daya:	Max 5W
Suhu operasi:	-10 ° C hingga 55 ° C.	Ukuran:	71 x 94 x 26 mm
Menyoroti:	Multi-Mode Gigabit Ethernet Media Converter , Multi-Mode Single-Mode Media Converter , Single-Mode Gigabit Ethernet Media Converter

Gigabit Ethernet Media Converter with Multi-Mode and Single-Mode Fiber

Overviw

This Gigabit Ethernet media converter enables seamless conversion between

10/100/1000Base-T and 1000Base-SX/LX optical signals. Supporting both multi-mode and

single-mode fiber, it extends Ethernet transmission up to 120km. Designed for reliable,

high-speed data communication, it features auto-negotiation, full/half duplex support, and

plug-and-play installation. Ideal for telecom, enterprise, and industrial network applications.

Features

Supports 10/100/1000Mbps auto-negotiation for seamless Ethernet to fiber conversion

Compatible with IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards

Available in multi-mode and single-mode, dual-fiber and single-fiber options

Transmission distance up to 120km over optical fiber

Auto MDI/MDI-X and full/half duplex support for easy deployment

Compact metal housing with low power consumption and high stability

Plug-and-play design, no configuration required

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm) Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm) Single mode Single fiber: SC/FC/LC(SFP) (9/125μm)
Conversion means	Media conversion
BER	<10^-9
MTBF	100,000 hours
Power supply	DC 5V / 1A
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	71 x 94 x 26 mm

Ordering Information

Item	Description
Item	Description
LNK-3011	10/100/1000Base-T to 1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor
LNK-3011S-20	10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-S3011-20	10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
