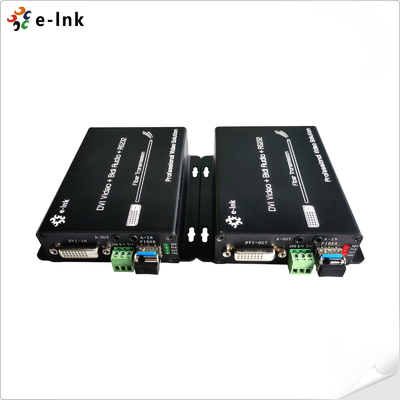

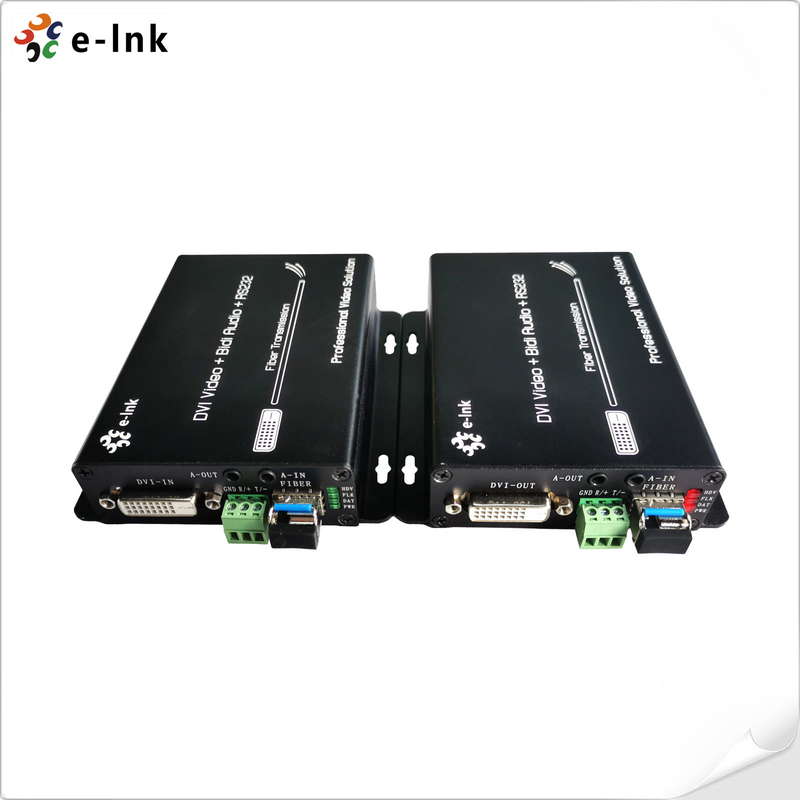

DVI Bidirectional Audio RS232 Fiber Extender Up to 80km Transmission

Gambar besar : DVI Bidirectional Audio RS232 Fiber Extender Up to 80km Transmission

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC, ISO9001
Nomor model:	LNK-KVM-DVI-1D1BA1GO
Dokumen:	1E-link Communication & Net...og.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pasang
Harga:	$79-$106
Kemasan rincian:	DVI Video ke Paket Ekspor Standar Konverter Serat
Waktu pengiriman:	5-12 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram, PayPal, kartu kredit
Menyediakan kemampuan:	1000pcs/bulan

Kontak

Detil Deskripsi produk

Resolusi video:	Hingga 1920 × 1200@60Hz	Antarmuka Audio:	Audio stereo dua arah 3.5mm
Kecepatan Baud RS232:	≤115200bps	Konektor serat:	LC, modul SFP
Jarak Transmisi Maks:	80km (mode tunggal)	Ukuran:	120 × 83 × 28 mm
Menyoroti:	80km Transmission Fiber Extender , DVI Fiber Extender , Bidirectional Audio RS232 Fiber Extender

DVI Bidirectional Audio RS232 Fiber Extender Up to 80km Transmission

Overview

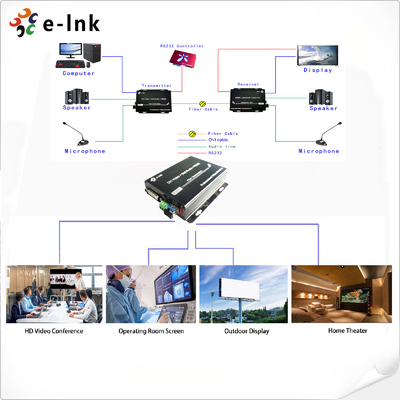

This fiber optic extender transmits DVI video, bidirectional stereo audio, and RS232 signals

over a single fiber cable up to 80km. It supports resolutions up to 1920×1200@60Hz and

ensures high-quality, stable transmission with auto-adjustment and ESD protection. Ideal

for industrial control, multimedia systems, and long-distance AV integration.

Features

Transmits DVI video, bidirectional stereo audio, and RS232 over one fiber cable

Supports high resolutions up to 1920×1200@60Hz, compatible with 1080P Full HD

Long-distance transmission up to 80km via single-mode fiber

Compliant with DVI 1.0 and HDCP 1.2 standards

Auto-adjustment for clear, smooth, and stable image quality

Built-in ESD protection for enhanced system reliability

Plug and play, no software installation required

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0 and HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Compliant	1080P@50/59.95/60Hz( Max 19201200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 16001200 @60HZ
	Connector	Female DVI-D
	Impedance	100Ω
	DVI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Output
	Receiver	1Ch Input + 1Ch Output
RS232	Interface	3-Pin Terminal Block
	Baud Rate	≤115200
	Data Bits	8 bits
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps
	Transmission distance	Multi-mode fiber: <500M Single-mode fiber: 0~80km
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	120 x 83 x 28 (mm)
