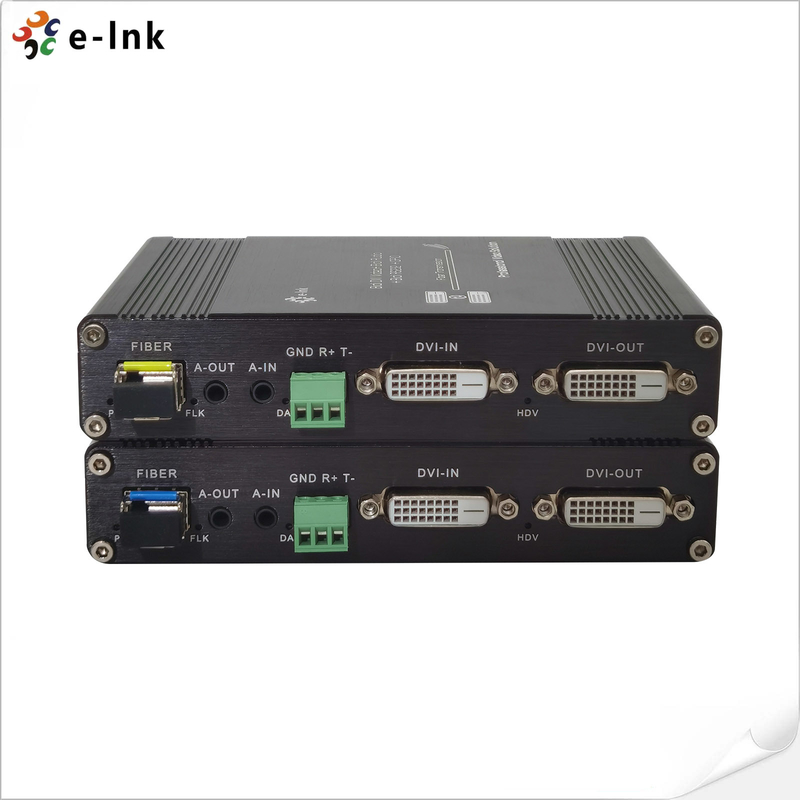

Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km

Gambar besar : Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km

Detail produk:

Tempat asal:	CINA
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC
Nomor model:	LNK-B-DVI-1DA1GO
Dokumen:	1E-link Communication & Net...og.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pasang
Harga:	$259-$285
Kemasan rincian:	DVI Video ke Paket Ekspor Standar Konverter Serat
Waktu pengiriman:	5-12 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram, PayPal, kartu kredit
Menyediakan kemampuan:	1000pcs/bulan

Kontak

Detil Deskripsi produk

Resolusi video:	Hingga 1920 × 1200@60Hz	Antarmuka video:	Dvi-d
Antarmuka Audio:	Jack stereo 3.5mm	Tipe serat:	Single-mode, serat tunggal
Jarak Transmisi:	Standar 10km, maks 20 km	Suhu operasi:	-5 ℃ hingga +70 ℃
Ukuran:	148 × 115 × 28mm	Tipe konektor:	LC untuk serat, terminal industri untuk GPIO/RS232
Menyoroti:	Bi-Directional DVI Fiber Optic Extender , Audio DVI Fiber Optic Extender , RS232 DVI Fiber Optic Extender

Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km

Overview

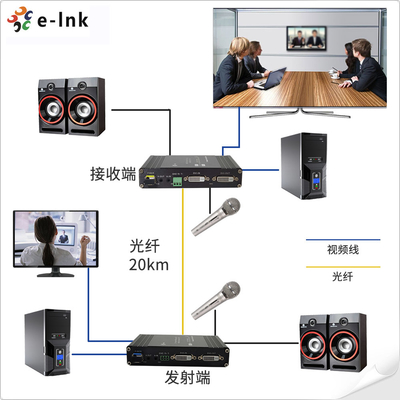

This fiber optic extender delivers long-distance, bi-directional transmission of DVI video,

stereo audio, and RS232 signals over a single optical fiber. Supporting resolutions up to

1920×1200@60Hz and transmission distances up to 20km, it ensures stable, high-quality

performance. Designed for plug-and-play deployment, it’s ideal for broadcasting, control

rooms, medical imaging, and other professional AV applications requiring secure and

interference-free connectivity.

Features

Supports bi-directional DVI video transmission up to 1920×1200@60Hz

Transmits stereo audio and RS232 signals over one single-mode fiber

Transmission distance up to 20km via LC connector

Built-in auto-adjustment and ESD protection for stable performance

Supports GPIO signal transmission via industrial terminal

Self-adaptive RS232 baud rate up to 115200bps

Plug and play, no driver required

Compact metal design with wide operating temperature range (-5℃ to +70℃)

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Bi-directional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty
