Industrial 4-port 10/100/1000T 802.3bt PoE + 4-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Managed Ethernet Switch

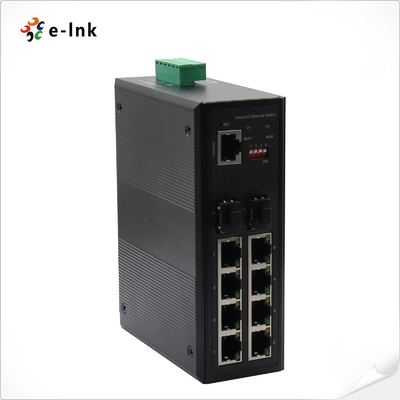

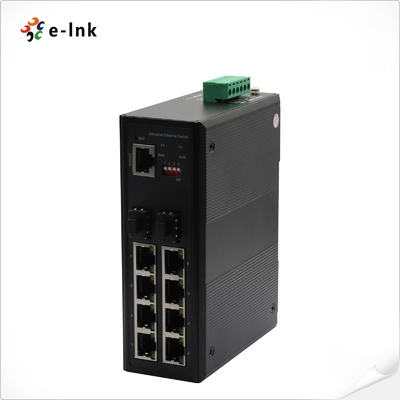

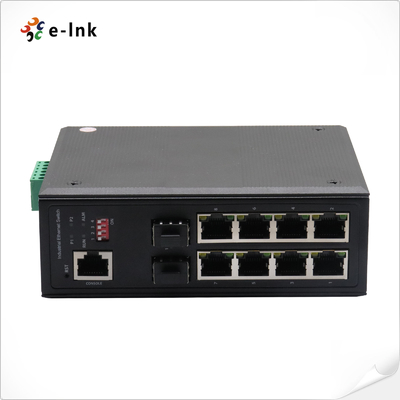

LNK-GYM7208GHP-SFP Industrial Managed Ethernet Switch Overview
The LNK-GYM7208GHP-SFP Series is a next-generation industrial managed PoE switch featuring
4 x 802.3bt (90W) PoE++ ports, 4 x 802.3at (30W) PoE+ ports and 2 x Gigabit SFP fibre slots
for high-speed, long-distance connectivity. This product has been designed to withstand the rigours
of industrial environments, ensuring consistent and dependable Ethernet transmission.
It features dual power inputs (12-48V DC) for redundancy, operates fanless, and boasts
a wide temperature range (-40°C to 80°C). Its compact, rugged IP40 metal housing supports DIN-rail
or wall mounting, making it ideal for industrial automation, ITS (Intelligent Transportation Systems),
military and utility networks. This switch is equipped with advanced Quality of Service (QoS), VLAN,
and network management features, ensuring high-bandwidth, low-latency, and secure data transmission
for mission-critical applications.
LNK-GYM7208GHP-SFP Industrial Managed Ethernet Switch Features
LNK-IMC2008G presents the following characteristics:
► Flexible Fiber Connectivity: Two 100/1000BASE-X mini-GBIC/SFP slots with auto-detection for various SFP modules.
► High-Power PoE Support : 4×10/100/1000T 802.3bt PoE ports and 4×10/100/1000T 802.3at PoE ports,
delivering up to 480W total PoE power budget .
► Large Frame Capability: Supports 16K-byte giant frames, compatible with multiple extension protocols.
► Efficient Networking : IEEE 802.3az Energy-Efficient Ethernet with 8K MAC address table for optimized performance.
► Advanced Protocol Support :Full IPv6 compatibility with 4KV electric surge protection for reliable operation.
► Comprehensive Status Indicators : Clear LED indicators for real-time device status and network activity.
► Power Input Protection : Polarity protection design prevents damage from incorrect power connections.
► Rugged Fanless Design : Durable metal housing with fanless cooling for silent, maintenance-free operation.

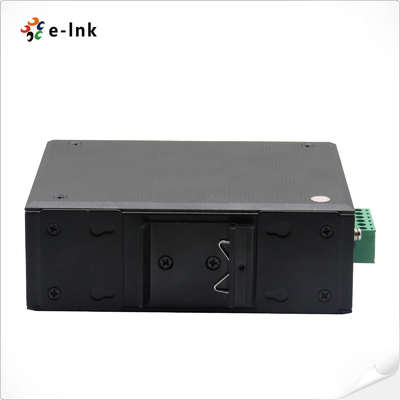

► Flexible Installation : Supports both DIN-rail and wall-mount configurations for versatile deployment.
LNK-GYM7208GHP-SFP Industrial Managed Ethernet Switch Technical Indexes
|
Physical Port
|
|
RJ45 port and speed
|
4x10/100/1000Base-T 802.3bt PoE++
4x10/100/1000Base-T 802.3at PoE+
|
|
Fiber port and speed
|
2x100/1000Base-FX SFP (Dual Mode, Auto Detection)
|
|
Parameters
|
|
Ethernet standards
|
IEEE 802.1x authentication
IEEE 802.1q-Tagging
IEEE 802.1p-Qeueing Layer 2 QoS/CoS with min. 4 Queues per Port IEEE 802.1w RSTP rapid spanning tree
IEEE 802.3ad Trunking
IEEE 802.3x flow control
IEEE 802.1D Spanning Tree
IEEE802.1ab LLDP
|
|
Packet buffer
|
4Mbits
|
|
Maximum packet length
|
Up to 1532Bytes
|
|
MAC address table
|
16K
|
|
Transmission mode
|
Store and Forward (full/half duplex mode)
|
|
Exchange property
|
Delay time: < 7μs
Backplane bandwidth: 20Gbps
Packet forwarding rate: 14.88Mpps
|
|
PoE
|
|
PoE Standard
|
4 x IEEE 802.3af/at/bt PoE
4 x IEEE 802.3af/at PoE
|
|
Power budget
|
Max. PoE output power budget 90W for single PoE port
Total PoE Power Budget up to 480 watts maximum
|
|
Lightning protection
|
The Industrial Switch provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
|
|
DIP Switch
|
|
DIP
|
State
|
Description
|
|
#1
|
ON
|
RSTP Disabled
|
|
OFF
|
RSTP Enable
|
|
#2
|
ON
|
Port VLAN Enable
|
|
OFF
|
Port VLAN Disable
|
|
#3
|
ON
|
SFP Port is 100M
|
|
OFF
|
SFP Port 100M/1000M
|
|
#4
|
N/A
|
Function Reserve
|
|
LED Indicator
|
|
Power
|
Connect-always
|
|
RJ45
|
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
|
|
Fiber
|
Link/Act: connect-always; data exchange-twinkle
|
|
Power Information
|
|
Power access mode
|
Phoenix terminal
|
|
Redundant power input
|
DC 48-56V
|
|
Overload protection
|
Yes
|
|
Power reverse
|
Support
|
|
Power consumption
|
Full-load<15W (Not use PoE)
|
|
Physical Property
|
|
Protection grade
|
IP40 aluminum case
|
|
Cooling mode
|
Natural cooling, no fan design
|
|
Dimensions
|
138mm x 106mm x 41mm (L x W x H)
|
|
Installation mode
|
DIN trail/wall-mountable
|
|
Weight
|
600g
|
|
Working Environment
|
|
Operating Temperature
|
-40℃~80℃
|
|
Operating Humidity
|
5%~90% non-condensing
|
|
Storage Temperature
|
-40℃~80℃
|
|
Warranty
|
|
MTBF
|
100,000 hours
|
|
Defects Liability Period
|
5-year warranty, lifetime technical support
|
|
Certification Standard
|
|
EMI
|
FCC Part15 Subpart B Class A,
EN 55022 Class A
|
|
EMS
|
EN61000-4-2(ESD),
EN61000-4-3(RS),
EN61000-4-4(EFT),
EN61000-4-5(Surge),
EN61000-4-6(CS),
EN61000-4-8, EN61000-4-11
|
|
Collision
|
IEC60068-2-27
|
|
Drop
|
IEC60068-2-32
|
|
Vibration
|
IEC60068-2-6
|
|
Safety grade
|
EN60950-1
|
|
Software
|
|
Software Features
|
Redundant network: STP/RSTP
|
|
Multicast: IGMP Snooping V1/V2
|
|
VLAN: IEEE 802.1Q 4K VLAN, QINQ
|
|
Link Aggregation: manual
|
|
Management Function: CLI/WEB/SNMP
|
|
Diagnostic Maintenance: Port mirroring, Ping
|
|
Alarm management: 1 way relay alarm output, RMON, SNMP Trap
|
|
Security: DHCP Snooping, User hierarchical management
|
|
Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control.
Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression
|
LNK-GYM7208GHP-SFP Industrial Managed Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-GYM7208GHP-SFP
|
Industrial 4-port 10/100/1000T 802.3bt PoE + 4-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Managed Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
►480W 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
LNK-GYM7208GHP-SFP Industrial Managed Ethernet Switch Application
LNK-GYM7208GHP-SFP Industrial Managed Ethernet Switch Dimension
