Industrial Managed 8-Port Gigabit PoE Switch 2 SFP 240W Power Wide Temp DIN-Rail

Gambar besar : Industrial Managed 8-Port Gigabit PoE Switch 2 SFP 240W Power Wide Temp DIN-Rail

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC, ISO9001
Nomor model:	LNK-IMC208SGP-SFP
Dokumen:	1E-link Communication & Net...og.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pasang
Harga:	$85-$105
Kemasan rincian:	Paket Ekspor Standar Poe Sakelar Industri yang Dikelola
Waktu pengiriman:	2-10 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram, PayPal, kartu kredit
Menyediakan kemampuan:	1000pcs/bulan

Kontak

Detil Deskripsi produk

Ports:	8 × Gigabit RJ45 POE+, 2 × Gigabit SFP	standar PO:	IEEE 802.3af/at, hingga total 240W
Bandwidth bidang belakang:	20Gbps	Suhu operasi:	-40 ° C hingga 80 ° C.
Input daya:	48–57VDC, berlebihan	Pemasangan:	DIN-RAIL, KASUS ALUMINIUM
Menyoroti:	240W 8-Port PoE Switch , 240W Industrial Managed PoE Switch

Industrial Managed 8-Port Gigabit PoE Switch 2 SFP 240W Power Wide Temp DIN-Rail

Overview

This industrial managed switch features 8 Gigabit PoE ports and 2 Gigabit SFP slots,

delivering both data and power to connected devices with up to 240W total PoE budget.

Designed for demanding environments, it supports a wide operating temperature range of

-40°C to 80°C and offers reliable performance with redundant power inputs. The compact

aluminum casing with DIN-rail mounting makes it ideal for applications such as IP

surveillance, wireless access points, and remote networking in industrial, transportation,

and outdoor settings.

Features

8×10/100/1000Base-T PoE+ ports (30W per port) + 2×100/1000Base-X SFP slots

Up to 240W total PoE power budget for IP cameras, APs, and other devices

Wide operating temperature range: -40°C to 80°C for harsh environments

Redundant 48–57VDC power inputs for uninterrupted operation

Compact aluminum housing with DIN-rail mounting for industrial use

Supports VLAN, QoS, IGMP Snooping, STP/RSTP, and WEB management

IEEE 802.3az Energy Efficient Ethernet for reduced power consumption

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Backplane bandwidth	20Gbps
Packet Buffer Memory:	9216 bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100/1000Base-X SFP
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
PoE:	PoE Status
Fiber:	Gigabit SFP Port: F9~F10
Dimensions (WxDxH):	95 x 63 x 46 mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP
Multicast Support	Support IGMP Snooping V1/V2/V3
VLAN	Support IEEE 802.1Q 4K VLAN
QOS	Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	WEB
Security	Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208SGP-SFP	Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

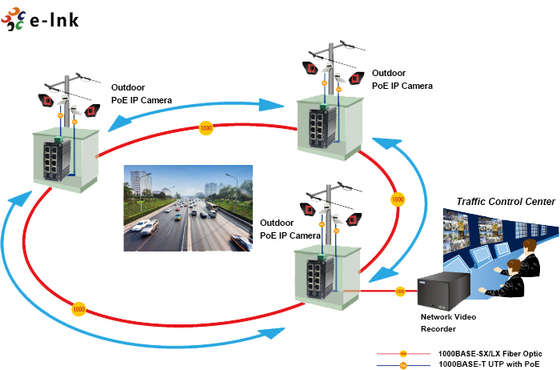

Application
