Ultra-Compact 4K HDMI 1.4a Fiber Extender Up to 80km Uncompressed Video

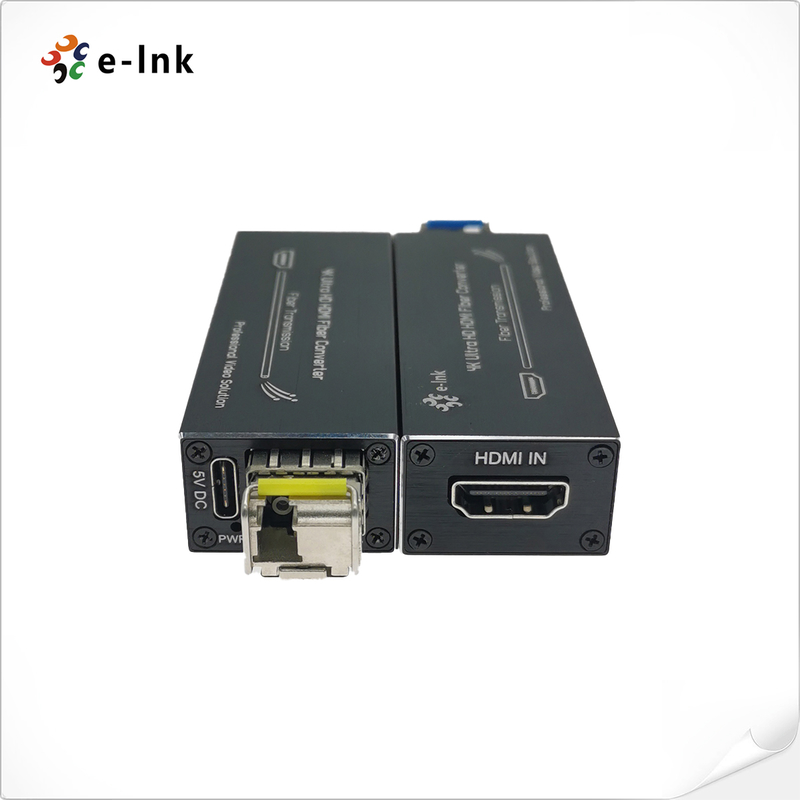

Gambar besar : Ultra-Compact 4K HDMI 1.4a Fiber Extender Up to 80km Uncompressed Video

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	E-link
Sertifikasi:	RoHS, CE, FCC, ISO9001
Nomor model:	Seri LNK-MH4K
Dokumen:	1E-link Communication & Net...og.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pasang
Harga:	$175-$775
Kemasan rincian:	Paket Ekspor Standar HDMI Over Fiber Optic Extender
Waktu pengiriman:	2-9 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, Moneygram
Menyediakan kemampuan:	2000 pcs/bulan

Kontak

Detil Deskripsi produk

Resolusi video:	Hingga 4K × 2K@30Hz, 1920 × 1200 / 1080p@60Hz	Bandwidth:	10.3Gbps transmisi data berkecepatan tinggi
Jarak Transmisi:	300m (OM3 Multimode), hingga 80 km (mode tunggal)	Dukungan Audio:	Dolby TrueHD, Dolby Digital Plus, DTS-HD, PCM-2CH
Catu daya:	5V DC melalui USB-C, <5W Konsumsi Daya	Suhu operasi:	-10°C hingga +60°C
Menyoroti:	80km Fiber Extender , Ultra-Compact HDMI Fiber Extender , 4K HDMI Fiber Extender

Ultra-Compact 4K HDMI 1.4a Fiber Extender Up to 80km Uncompressed Video

Overview
The LNK-MH4K Series Micro Mini 4K HDMI Fiber Extender delivers uncompressed, lossless

HDMI 1.4a video and audio over optical fiber up to 80km. Featuring a compact, lightweight

design with USB-C power input, it supports resolutions up to 4K×2K@30Hz, wide audio

formats, and EDID plug-and-play. Ideal for large-screen displays, conference systems, and

home entertainment, it ensures stable, interference-resistant transmission with CE, FCC,

and RoHS compliance.

Features

Supports uncompressed HDMI 1.4a video up to 4K×2K@30Hz

Long-distance transmission up to 80km over optical fiber

Compact micro mini design, lightweight and easy to install

Wide audio format support including Dolby TrueHD and DTS-HD

Plug-and-play with dynamic EDID and USB-C power input

EMI/RFI resistant for stable, interference-free performance

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Connector	Female HDMI type A
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Color space 420, 400
Dynamic EDID	Plug & Play, no need to learn
Fiber Connector	SFP/LC
Bandwidth	10.3Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 60°C
Storage Temperature	-20 to + 85°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	3.07 x 1.06 x 0.69in (78x27x17mm)
Weight	50g / 0.11 lb
Power Supply	5V DC (USB-C)
Power dissipation	<5W
Safety Approvals	CE, FCC, RoHS

Ordering Information

Model	Description
Model	Description
LNK-MH4K-MM	Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input
LNK-MH4K-S20	Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input
LNK-MH4K-S40	Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input
LNK-MH4K-80	Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
LNK-MH4K-S80	Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
