Mini HDMI Extender over CAT5/6 with IR 1080P@60Hz 165ft (50m) Range

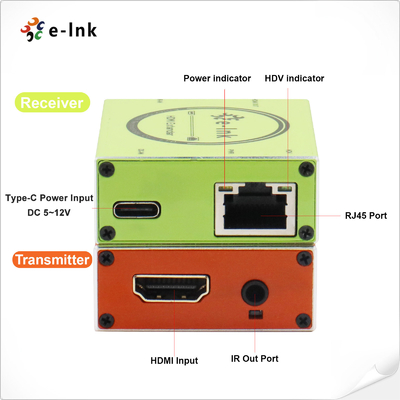

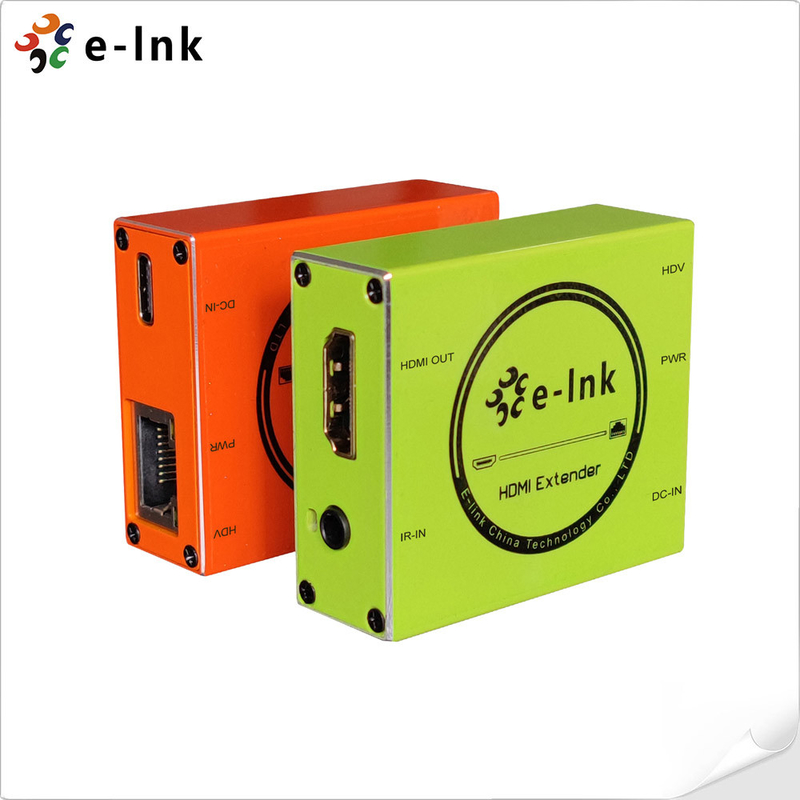

Gambar besar : Mini HDMI Extender over CAT5/6 with IR 1080P@60Hz 165ft (50m) Range

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	E-link
Sertifikasi:	CE, FCC, RoHs, ISO9001
Nomor model:	LNK-MHDE-P50
Dokumen:	1E-link Communication & Net...og.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pasang
Harga:	$34-$42
Kemasan rincian:	Paket Ekspor Standar HDMI Extender
Waktu pengiriman:	2-7 Hari Kerja
Syarat-syarat pembayaran:	Western Union, L/C, T/T, Moneygram
Menyediakan kemampuan:	2000 pasang/bulan

Kontak

Detil Deskripsi produk

Standar Video:	HDMI 1.4, HDCP 1.3	Resolusi Max:	1920×1080 @ 60Hz
Kecepatan Data Maks:	6,75Gbps	Jarak Transmisi:	Hingga 50m (1080p) / 80m (720p) di atas Cat6
Catu daya:	DC 5 ~ 12V, MAX 3W	Bahan perumahan:	aluminium
Menyoroti:	50M Mini HDMI Extender , 50m Mini HDMI Extender , IR Mini HDMI Extender

Mini HDMI Extender over CAT5/6 with IR 1080P@60Hz 165ft (50m) Range

Overview

This Mini HDMI Extender over CAT5/6 with IR allows seamless transmission of

uncompressed 1080P@60Hz HDMI signals up to 165ft (50m) using a single CAT6 cable.

Featuring compact aluminum housing, zero latency, EDID pass-through, and IR control,

it ensures stable, high-quality video and audio for conference systems, digital signage,

education, and home entertainment setups. Easy to install and cost-effective, it’s ideal for

long-distance HDMI signal extension with reliable performance.

Features

Transmits uncompressed 1080P@60Hz HDMI signal up to 165ft (50m) over single CAT6

cable

Supports EDID pass-through for improved device compatibility

Built-in IR transmission for remote control signal extension

Ultra-compact aluminum housing for durability and strong anti-interference

Zero latency and automatic cable length adjustment for stable performance

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4; HDCP 1.3
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz
	Connector	HDMI-A
	Impedance	100Ω
IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	38kHz
Ethernet	Interface	RJ45(568B)
	Transmission distance	720P, UTP CAT6---80m
	Transmission distance	1080P, UTP CAT6---50m
Other	Power supply	DC 5~12V
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +50℃
	Humidity	Operating: 5% ~ 90%
	Dimension	51x45x18mm
	Housing Material	Aluminum
	The warranty	1 year warranty

Ordering Information

Model	Description of product
LNK-MHDE-P50	HDMI Over CAT5/CAT6 Extender with IR - 165 ft (50m), including 1 Transmitter & 1 Receiver, used by pairs
