Konverter Media PoE++ 60W Industrial 1-Port 1000Base-X ke 2-Port 10/100/1000Base-T -40~75°C

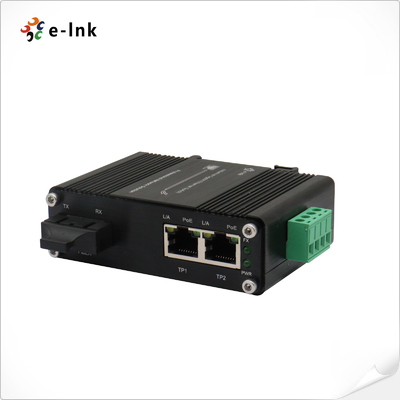

Gambar besar : Konverter Media PoE++ 60W Industrial 1-Port 1000Base-X ke 2-Port 10/100/1000Base-T -40~75°C

Detail produk:

Place of Origin:	Guangdong, China
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC1200GP60
Dokumen:	1E-link Communication & Net...og.pdf

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pcs
Harga:	$85-$105
Packaging Details:	PoE Fiber Media Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Kontak

Detil Deskripsi produk

Ethernet Ports:	2× 10/100/1000BASE-T RJ45, Auto MDI/MDI-X	Fiber Port:	1× SC 1000BASE-X
PoE Output:	Up to 60W over 4-pairs, IEEE802.3af/at compliant	Power Input:	48~57VDC, 2-pin terminal block
Enclosure:	Aluminum, 95×70×30 mm, 0.25 kg	Operating Temperature:	-40°C to 75°C

Industrial 1-Port 1000Base-X ke 2-Port 10/100/1000Base-T 60W PoE++ Media Converter -40 ~ 75°C

Gambaran umum

Seri LNK-IMC1200GP60 adalah konverter media industri yang kokoh yang menjembatani

Serat 1000Base-X ke 2-Port 10/100/1000Base-T Ethernet dengan dukungan 60W PoE ++.

perangkat yang sangat diminati seperti kamera IP, titik akses nirkabel, dan peralatan industri

Direkayasa untuk lingkungan yang keras,

Konverter bekerja dengan andal dari -40°C sampai 75°C dan dilengkapi dengan casing aluminium yang kuat.

Pilihan DIN-rail atau wall-mount, ia memberikan penyebaran fleksibel untuk industri dan

aplikasi jaringan luar ruangan.

Fitur

High-Power PoE ++

Dual Gigabit Ethernet Ports 2× 10/100/1000BASE-T RJ45 untuk kecepatan tinggi yang fleksibel

konektivitas.

Gigabit Fiber Port 1 × 1000Base-X SC port memungkinkan jarak jauh, serat berkecepatan tinggi

integrasi.

Ketahanan Industri ️ Bekerja dari -40°C sampai +75°C; casing aluminium yang kokoh memastikan

kinerja yang andal.

Efisiensi energi ️ sesuai dengan IEEE 802.3az untuk mengurangi konsumsi energi.

Instalasi Fleksibel

Indeks Teknis

Ethernet
Standar:	IEEE802.3 10Base-T
	IEEE802.3Anda 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z1000Base-X
	IEEE 802.3az Ethernet hemat energi (EEE)
	IEEE802.3af Daya melalui Ethernet
	IEEE802.3at Daya melalui Ethernet
Jenis pengolahan:	Menyimpan-dan-Ke depan
Kecepatan Filter Ke depan:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Memori Buffer Paket:	1 Mbit
Maksimal Panjang Paket:	9K Bytes
Ukuran tabel alamat	Alamat MAC 2K
Antarmuka
Konektor:	2x RJ45
Pelabuhan optik:	1 x SC 1000Base-X
Listrik dan Mekanik
Daya Masuk:	48~57VDC, blok terminal 2 pin
Kekuatan output	48VDC
Konsumsi daya:	125W Max.
Indikator LED:
PWR:	Status Daya
L/A:	Status Data LINK
POE:	Status PoE
100M/1000M:	Serat LINK Status
Dimensi (WxDxH):	95 x70 x30 mm
Berat:	0.25kg
Casing:	Aluminium Kasus
Opsi pemasangan:	DIN-Rail / Wall-mount
Lingkungan
Suhu operasi:	-40°C sampai75°C (-40°F sampai 167°F)
Suhu penyimpanan:	-40°C sampai 85°C (-40°F sampai 185°F)
Kelembaban relatif:	5% sampai 95% tidak kondensasi
MTBF	> 200.000 jam
Persetujuan Peraturan
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Kelas A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Peningkatan) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Informasi Pemesanan

Model	Deskripsi
LNK-IMC1200GP60	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port,Multimode, 850nm,550m
LNK-IMC1200GP60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port,Mode tunggal, 1310nm,20km
LNK-IMC1200GP60S-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port,Single Mode Single Fiber, 1310/1550nm,20km
Opsi pemasangan	️ DIN-Rail Bracket default dipasang; Wall Mount Bracket disertakan.
Pilihan Daya	️120W/2.5Sumber Daya 48VDC. Open Wire untuk Terminal Block
Pilihan Daya	Suplai listrik harus dibeli secara terpisah.

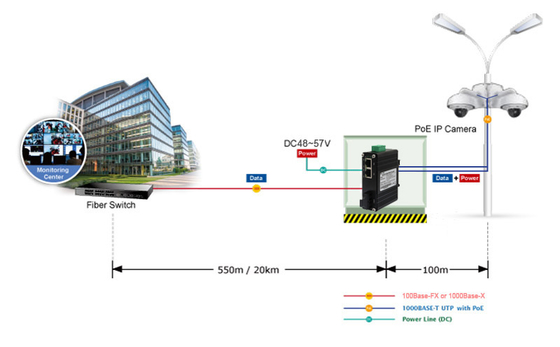

Aplikasi
