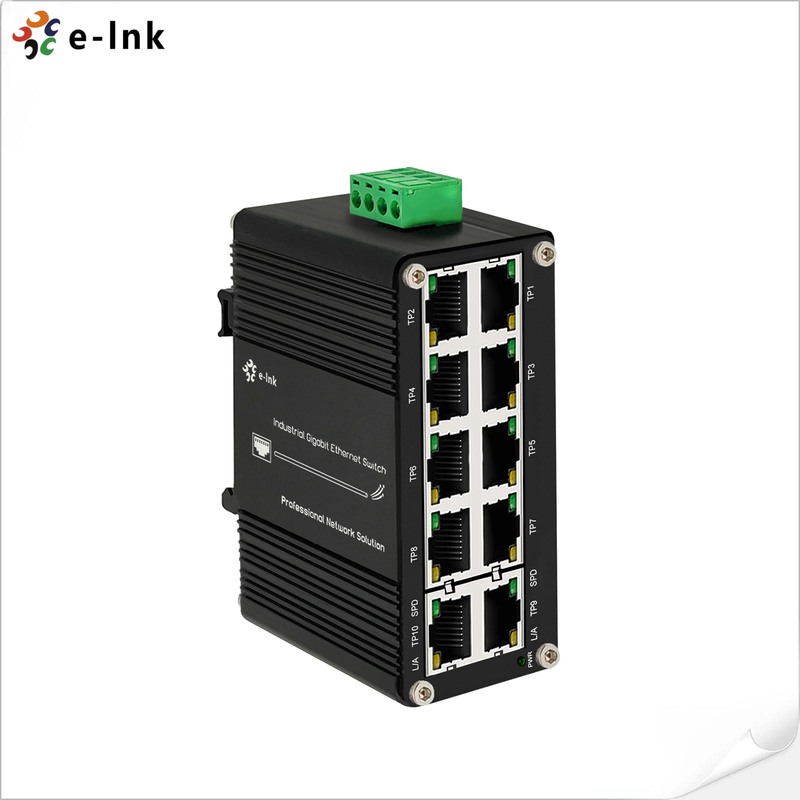

Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C

Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C
Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C

Gambar besar :  Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: E-link
Sertifikasi: CE, RoHS, FCC, ISO9001
Nomor model: LNK-IMC010G
Dokumen: 2E-link Video Transmission ...og.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: $39.9-$59.9
Kemasan rincian: Paket Ekspor Standar Sakelar Serat Optik
Waktu pengiriman: 5-12 hari kerja
Syarat-syarat pembayaran: D/P, T/T, Western Union, MoneyGram, PayPal, kartu kredit
Menyediakan kemampuan: 1000pcs/bulan
Detil Deskripsi produk
Ports: 10 × 10/100/1000Base-T RJ45 Input daya: 12–48VDC, berlebihan dengan perlindungan polaritas terbalik
Konsumsi daya: <10w Mtbf: > 200.000 jam
Perumahan: Aluminium kompak, tahan debu IP40, 95 × 88 × 46mm Pemasangan: DIN-RAIL / WALL-MOUNT
Menyoroti:

Mini industrial Gigabit Ethernet switch

,

10-port rugged Ethernet switch

,

Compact Gigabit switch for extreme temperatures

Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C

Overview

The LNK-IMC010G Series is a compact 10-port Gigabit industrial Ethernet switch designed

for demanding environments. With wide voltage input, IP40-rated metal housing, and reliable

operation in extreme temperatures, it ensures stable performance in industrial automation,

transportation, and surveillance networks.

Features

10 Gigabit RJ45 Ports with auto-MDI/MDI-X for flexible connectivity

Wide 12~48VDC power input with redundant protection design

Industrial-grade rugged case with IP40 dustproof protection

Reliable in harsh environments: -40°C to 80°C operating range

High-performance switching with 20Gbps non-blocking fabric

Energy-efficient IEEE 802.3az compliant design

Easy installation via DIN-Rail or wall-mount options

Technical Indexes

Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

2Mbits

Packet Length:

9216bytes

MAC Address Table:

4K entries

Switch Fabric:

20Gbps/non-blocking

Switch Throughput (packet per second)

14.88Mpps@64bytes

Connector:

10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC

Redundant power with polarity reverses protection function

Power Consumption:

<10W

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Dimensions (WxDxH):

95 x 88 x 46mm

Weight:

300g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

LED Indicators:

PWR

Power

L/A

Link/Activity

SPD

Data Rate

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC010G

Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately

Application

Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C 0

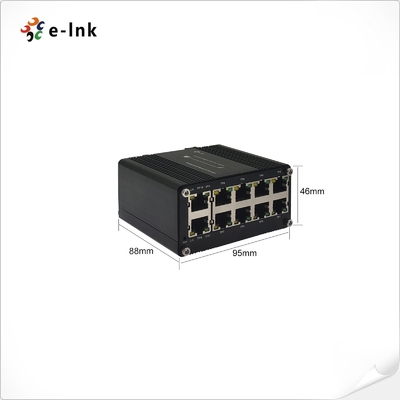

Dimension & Size

Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C 1
