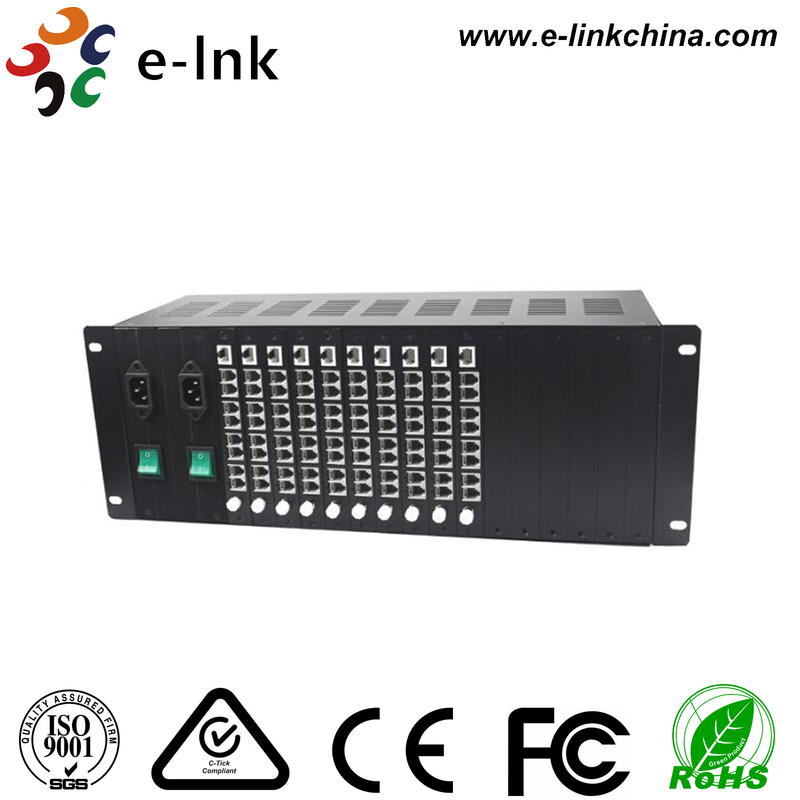

4U Telephone Fiber Mux Rack
4U Telephone Fiber Mux Rack Overview
The LNK-PR-4U is a high-capacity, professional 4U chassis designed for robust and flexible telecommunications
deployment. Supporting a hybrid combination of up to 16 card-type modules (4-channel or 8-channel telephone
fibre multiplexers), it allows for a scalable system configuration of up to 128 channels. Engineered for
maximum reliability, it features a robust switch mode power supply (SMPS) that accepts 110/220 V AC input.
Its advanced electrical design prevents single-module failures from affecting others, ensuring unmatched
system stability. Built-in cooling fans enhance the chassis's longevity, and front-accessible, hot-swappable
modules and clear LED status indicators offer effortless maintenance, eliminating the need for system
downtime during upgrades or replacements.
4U Telephone Fiber Mux Rack Features
► Active/standby dual power supply design ensures uninterrupted system operation
► Equipped with two power supply options for reliable performance in diverse operating environments
► Supports simultaneous operation of 4-Channel or 8-Channel card-type Telephone Fiber Mux,
greatly enhancing system adaptability
► Hot-swappable modules allow easy maintenance and upgrades without service interruption
4U Telephone Fiber Mux Rack Technical Indexes
|
Parameter
|
Specifications
|
|
Number of slots
|
16
|
|
Structure
|
19” 4U rack
|
|
Card-type converter support
|
4Ch or 8Ch Card-type Telephone Fiber Mux
|
|
Power input
|
AC Voltage: AC 100~260V; frequency: 50/60 Hz
|
|
Power output
|
DC5V 16A
|
|
MTBF
|
> 100,000 hours
|
|
Power configuration
|
Single power supply; or
Dual power supply for warm backup mode
|
|
Dimension (mm)
|
485x280x176 (LxWxH)
|
|
Weight
|
7.4KG
|
|
LED indication
|
POWER (power supply)
|
|
Construction
|
Metal
|
|
Operating temperature
|
-30°C to +55°C
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Relative humidity
|
5%~90% (non condensing)
|
4U Telephone Fiber Mux Rack Ordering Information
|
Model
|
Description
|
|
LNK-PR16-2A
|
19" 4U Rack-Mount Chassis, 16-Slot, 16pcs 4CH or 8CH Card-type telephone fiber mux can be put in the Chassis, Dual Power Supply
|
