Mini Industrial Managed PoE Switch 8 Gigabit RJ45 2 SFP 240W PoE

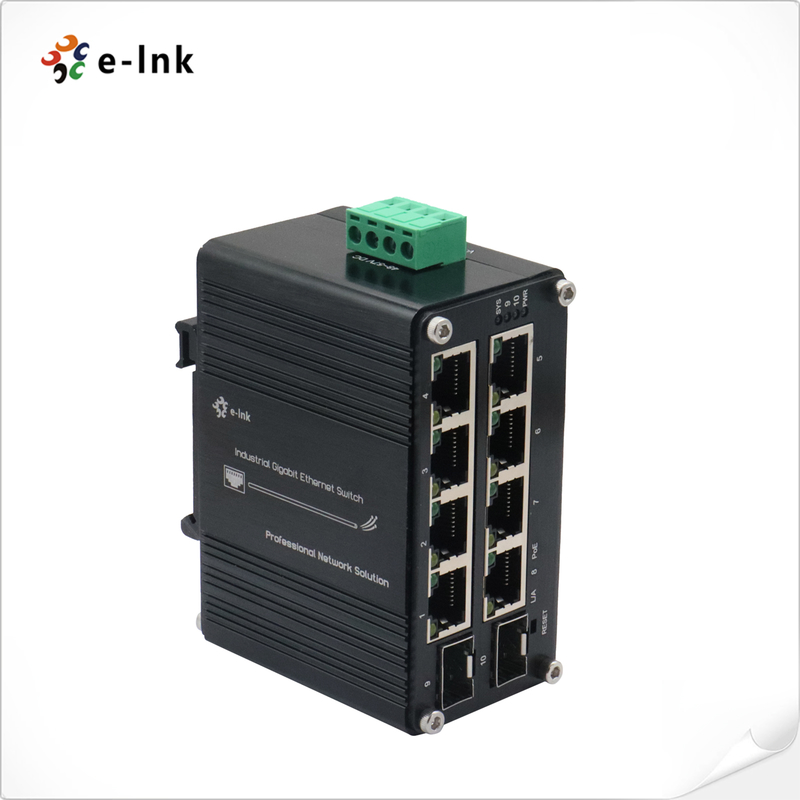

Gambar besar : Mini Industrial Managed PoE Switch 8 Gigabit RJ45 2 SFP 240W PoE

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	E-link
Sertifikasi:	CE, RoHS, FCC, ISO9001
Nomor model:	LNK-IMC208SGP-SFP
Dokumen:	1E-link Communication & Net...og.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pcs
Harga:	$79-$105
Kemasan rincian:	Paket Ekspor Standar Industri
Waktu pengiriman:	5-12 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram, PayPal, kartu kredit
Menyediakan kemampuan:	1000pcs/bulan

Kontak

Detil Deskripsi produk

Ports:	8x 10/100/1000 RJ45 + 2X 100/1000 SFP	Pengelolaan:	Berbasis web, VLAN (4K), QoS, IGMP Snooping
Redundansi:	Input daya ganda, protokol STP/RSTP	Suhu operasi:	-40 ° C hingga 80 ° C, desain tanpa kipas
Output POE:	IEEE 802.3af/AT, Total 240W, 30W per port	Pemasangan:	DIN-RAIL, Perumahan Aluminium yang Kompak
Menyoroti:	Mini industrial PoE switch 8 port , Managed PoE switch with SFP slots , 240W industrial Ethernet switch Gigabit

Mini Industrial Managed PoE Switch 8 Gigabit RJ45 2 SFP 240W PoE

Overview

The LNK-IMC208SGP-SFP is a rugged industrial-grade managed PoE switch with 8 Gigabit

RJ45 ports and 2 dual-speed SFP uplinks. Designed for harsh environments, it provides

reliable power and data delivery for IP cameras, wireless APs, and IoT devices. With

advanced VLAN, QoS, and redundancy features, it ensures secure and stable network

performance across critical applications.

Features

8x Gigabit PoE+ Ports + 2x 100/1000 SFP for flexible uplink and edge connectivity

240W Total PoE Budget – up to 30W per port for high-power devices

Industrial-Grade Reliability with -40°C to 80°C operating temperature

Managed Functions: VLAN, QoS, IGMP Snooping, Port Mirroring, Syslog

High Network Protection – STP/RSTP, Storm Control, MAC filtering

Redundant 48–57VDC Power Inputs for uninterrupted operation

Compact Aluminum DIN-Rail Mounting – lightweight, easy installation

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Backplane bandwidth	20Gbps
Packet Buffer Memory:	9216 bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100/1000Base-X SFP
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
PoE:	PoE Status
Fiber:	Gigabit SFP Port: F9~F10
Dimensions (WxDxH):	95 x 63 x 46 mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP
Multicast Support	Support IGMP Snooping V1/V2/V3
VLAN	Support IEEE 802.1Q 4K VLAN
QOS	Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	WEB
Security	Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208SGP-SFP	Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

Application
