24 SFP Port Network Switch with Gigabit Uplink Wide Temperature Range

24 SFP Port Network Switch with Gigabit Uplink Wide Temperature Range
24 SFP Port Network Switch with Gigabit Uplink Wide Temperature Range

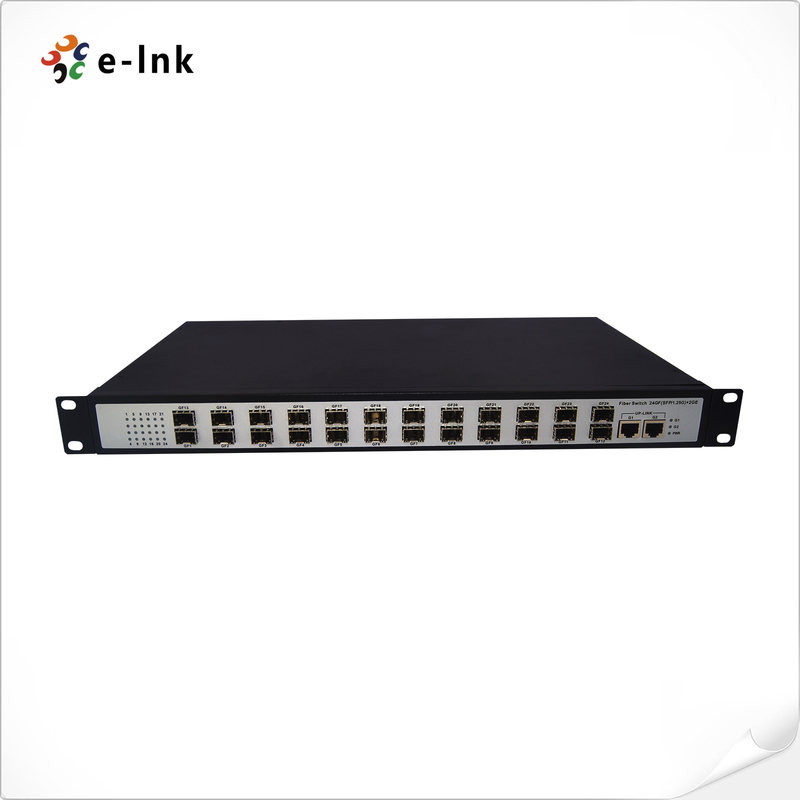

Gambar besar :  24 SFP Port Network Switch with Gigabit Uplink Wide Temperature Range

Detail produk:
Tempat asal: Cina
Nama merek: E-link
Sertifikasi: ISO9001, CE, RoHS, FCC
Nomor model: LNK-FS242
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: USD $369-399
Kemasan rincian: E-Link LNK-FS242 Paket Ekspor Standar Sakelar Sakelar yang Tidak Dikelola
Waktu pengiriman: 2 ~ 7 hari kerja
Syarat-syarat pembayaran: PayPal, TT, Western Union, MoneyGram, Alipay, L/C, D/A, D/P, T/T.
Menyediakan kemampuan: 2000pcs per bulan
Detil Deskripsi produk
Port optik: 24*100Base-X SFP Konsumsi daya: 25w maks. (Off-load)/40W maks. (Beban penuh)
Daya Input: 110~220VAC Dimensi (WXDXH): 485 x 235 x 45 mm
Selubung: Case Metal, Perlindungan IP40 Suhu operasi: -10 ° C hingga 60 ° C.
Menyoroti:

24 port SFP network switch

,

Gigabit uplink POE switch

,

Wide temperature Ethernet switch

Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch


Unmanaged  24-Port Fiber Switch Overview


The 24+2 Port Managed Fiber Switch is a high-density, enterprise-grade networking solution designed

to build robust, future-proof fibre optic infrastructures. Boasting 24 100Base-FX SFP slots, it provides

unparalleled flexibility for fibre connectivity through hot-swappable SFP modules, supporting various

distances and fibre types. It also has 2x 10/100/1000Base-TX copper ports for high-speed Gigabit

uplinks or connecting to critical network devices. Designed for maximum reliability in challenging

environments, it features a broad operating temperature range of -10°C to 60°C, a robust

1U rack-mount aluminium chassis and integrated lightning protection. Advanced features

such as an 8K MAC address table, 1 Mbit frame buffer memory and auto-negotiation/MDI-MDIX

ensure smooth, efficient and stable data transmission. With a wide 110–240 V AC power input

and a solid three-year warranty, this switch delivers exceptional performance and peace of mind

for your network.


Unmanaged  24-Port Fiber Switch Features


24 × 100Base-FX SFP ports + 2 × 10/100/1000Base-TX ports
► Supports 10/100/1000Mbps full/half-duplex, auto-negotiation, and Auto MDI/MDI-X on TX ports
Hot-swappable 100BASE SFP modules for flexible deployment
► Supports up to 8K MAC addresses
1Mbit frame buffer memory for efficient data forwarding
Standard 19-inch 1U rack-mount design
► Wide operating temperature range: -10°C to 60°C
110~240VAC universal power input
► Rugged aluminum housing with lightning protection design
► Backed by a 3-year warranty



 Unmanaged  24-Port Fiber Switch Technical Indexes


Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE802.3u 100BASE-FX

IEEE802.3ab 1000BASE-T

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Processing Type:

Store-and-Forward

Max Packet Length:

1522 Bytes

Address Table Size:

8K MAC Addresses

RJ45 Port

2*10/100/1000Base-T(X)

Optical Port:

24*100Base-X SFP

Environmental

Operating Temperature:

-10°C to 60°C

Storage Temperature:

-40°C to 85°C

Relative Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

110~220VAC

Power Consumption:

25W Max. ( Off-load)

40W Max. (Full load)

Dimensions (WxDxH):

485 x 235 x 45 mm

Weight:

2560g

Casing:

Metal Case, IP40 protection

Regulatory Approvals

ISO9001

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV


Unmanaged  24-Port Fiber Switch Ordering Information


Item

Description

LNK-FS242

Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch


After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service, providing product consultation,

remote technical supportmaintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
