Injektor PoE Industrial EN50155 10G 90W dengan Konektor M12 yang Kokoh 12–48V

EN50155 10G 90W Industrial PoE Injector with Rugged M12 Connectors 12–48V
EN50155 10G 90W Industrial PoE Injector with Rugged M12 Connectors 12–48V EN50155 10G 90W Industrial PoE Injector with Rugged M12 Connectors 12–48V

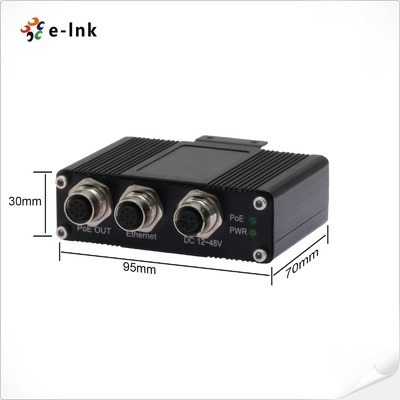

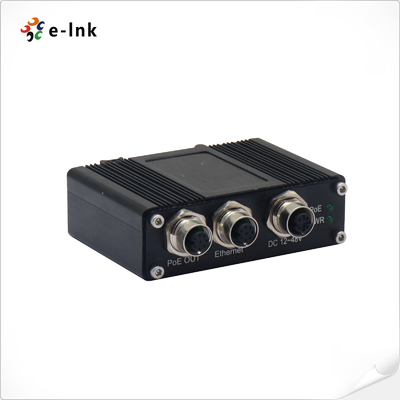

Gambar besar :  Injektor PoE Industrial EN50155 10G 90W dengan Konektor M12 yang Kokoh 12–48V

Detail produk:
Tempat asal: Shenzhen, Cina
Nama merek: E-link
Sertifikasi: ISO9001, CE, RoHS, FCC
Nomor model: LNK-INJ601-90-M12
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: $209-$231
Kemasan rincian: Paket Ekspor Standar PoE Injector
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, Moneygram, Paypal
Menyediakan kemampuan: 1000pcs/bulan
Detil Deskripsi produk
Kekuatan Poe: Hingga 90W per port (IEEE802.3AF/AT/BT) Laju data: 10/100/1000m/2.5g/5g/10g base-t (x)
Tegangan input: 12–48V DC, berbagai macam untuk sistem tenaga industri Antarmuka: Konektor 2 × M12 (Default A-Coding 8-pin, Opsional X-Coding)
Daya tahan: Perumahan Aluminium, EN50155 Getaran & Tahan Guncangan Perlindungan: Surge (RJ45: 1KV, Daya: 500V), ESD 4KV/8KV

EN50155 10G 90W Industrial PoE Injector dengan konektor M12 yang kokoh 12 48V

Gambaran umum

PeraturanLNK-INJ601-90-M12adalahInjektor PoE bertenaga tinggi 90Wdisesuaikan untuk transportasi dan keras

jaringan industri.10 Gigabit Ethernet, itu memastikan transmisi daya dan data yang mulus

melalui kabel tunggal.Standar EN50155 untuk kereta api, injektor tahan getaran, kejut,

dan iklim ekstrim.Konektor M12dan jangkauan luas 12 48V DC input, itu dirancang

untuk aplikasi yang menuntut seperti rolling stock, kendaraan, dan sistem outdoor.

Fitur

Hingga 90W output PoE(IEEE802.3af/at/bt sesuai)

Mendukung 10/100/1000M/2.5G/5G/10GTransmisi kecepatan tinggi

Konektor M12 yang kokoh(A- atau X-Coding) untuk tautan yang aman dan tahan getaran

Kepatuhan EN50155 tingkat kereta apiuntuk jaringan transportasi

-40°C sampai +80°C, dirancang untuk lingkungan yang keras

Kompak & ringan(95 × 70 × 30 mm, 0,25 kg) aluminium

Pemasangan fleksibel: DIN-Rel atau instalasi dinding

Deteksi perangkat cerdasmencegah kerusakan pada peralatan non-PoE

Indeks Teknis

Ethernet
Standar: IEEE802.3af Daya melalui Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3bt Daya melalui Ethernet
Jenis pengolahan: Ke depan
Half-duplex, Full-duplex
Kecepatan Filter Ke depan: 1,488,0000pps (10Gbps)
Kabel: 10/100/1000/2.5G/5G/10G Base-T
Konektor: 2x konektor M12 (default 8-pin perempuan M12 A-coding, X-coding opsional)
Lingkungan
Suhu operasi: -40°C sampai 80°C (-40°F sampai 176°F)
Suhu penyimpanan: -40°C sampai 85°C (-40°F sampai 185°F)
Kelembaban relatif: 5% sampai 95% tidak kondensasi
MTBF: >200.000 jam
Listrik dan Mekanik
Daya Masuk: 12 ~ 48V DC
Port Daya 4-pin perempuan M12 A-Coding
Konsumsi daya: 95W Max.
PoE (Power over Ethernet)
Standar: IEEE802.3af/at/bt
Pelabuhan: Konektor M12 (default 8-pin perempuan M12 A-coding, X-coding opsional)
Maks. daya per port: 90W Max
Indikator LED:
Daya: Status Daya
PoE: Status PoE
Dimensi (WxDxH): 95 x 70 x 30 mm
Berat: 0.25kg
Casing: Kasus aluminium
Opsi pemasangan: DIN-Rail / Wall-mount
Persetujuan Peraturan
ISO9001
FCC bagian 15, Kelas A, EN50155
EN55022:2006+A1: 2007 Kelas A
Perlindungan terhadap tegangan:
RJ45: 1KV
Daya: 500V
ESD: 4KV/8KV

Informasi Pemesanan

Model Deskripsi
LNK-INJ601-90-M12 EN50155 Industri 1-port 10/100/1000M/2.5G/5G/10G 90W M12 PoE Injector 12 ~ 48V DC Power Input
Opsi pemasangan ️ DIN-Rail Bracket default dipasang; Wall Mount Bracket disertakan.
Pilihan Daya Suplai listrik harus dibeli secara terpisah

Aplikasi

Injektor PoE Industrial EN50155 10G 90W dengan Konektor M12 yang Kokoh 12–48V 0
