E-link 10 / 100M Web- Managed 1FX + 4TX Fast Ethernet Fiber Optic Switch

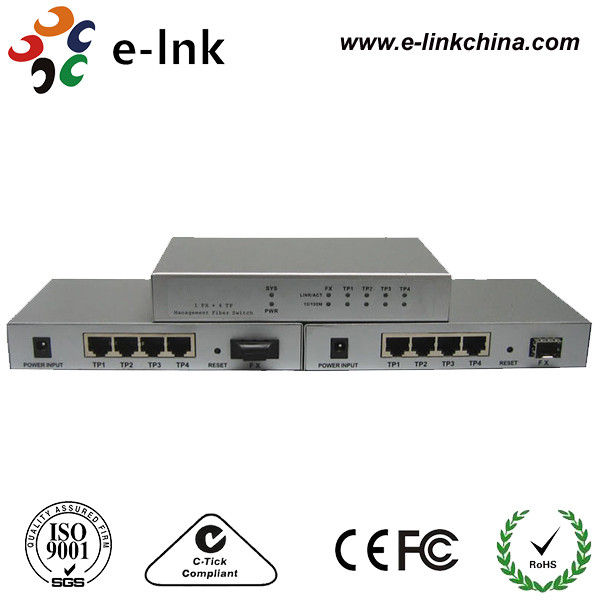

Gambar besar : E-link 10 / 100M Web- Managed 1FX + 4TX Fast Ethernet Fiber Optic Switch

Detail produk:

Place of Origin:	Shenzhen, China
Nama merek:	E-link
Sertifikasi:	RoHS,CE, FCC
Model Number:	LNK-M1400 Series

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pcs
Harga:	negotiable
Packaging Details:	Standard Export Package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability:	100000 pcs/ Month

Kontak

Detil Deskripsi produk

Wavelength:	850nm/1310nm/1550nm	Distance:	MM: 2km; SM: 20/40/60/80/ 100km;
MAC:	2K	Input Voltage Range:	9-15V/DC
Consumption:	Max.6W	Operating Temperature:	0 ℃ ~ 45 ℃
Dimensions:	232mm * 142mm * 45mm	CPU:	150Mhz or above
Memory:	16MB or abov
Menyoroti:	fiber optic ethernet switch , fiber switch jaringan optik

Product: 10 / 100M Web-Managed 1FX + 4TX Fiber Switch

Model: LNK-M1400 Series

Overview

This managed Fast Ethernet Optical Fiber Switch has one 100M FX port and four 10/100M UTP ports. Customer can choose different FX specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc.

The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.

Features

· Support 4 port 10/ 100M auto-detect Half/Full duplex RJ45 ports and 1 fiber port.

· Support WEB-based network management.

· Support port VLAN and Tag VLAN. (8 Groups)

· Support data packet length up to 1552 bytes.

· Support MAC address auto-learning.

· Support IGMP Snooping.

· Support IEEE 802.1p priority tags.

· Support DSCP.

· Automatic MDI/MDI-X configuration.

· Support bandwidth control.

· Support for hardware Load Default button to restore the default value.

· Choice of fiber-connector from SC,FC,ST, LC, WDM, multi-mode / single-mode fiber /100Base-SX/ LX SFP.

Technical Indexes

Standards and Protocols Supported	IEEE802.3 , IEEE802.3u , IEEE802.3x, IEEE802.1Q
Wavelength	850nm/1310nm/1550nm
Distance	Dual Fiber MM: 2km Dual Fiber SM: 20/40/60/80/ 100km Single Fiber SM : 20/40/60/ 80km
MAC	2K
CPU	150Mhz or above
Memory	16MB or above
Input Voltage Range	9-15V/DC
Consumption	Max.6W
Operating Temperature	0 ℃ ~ 45 ℃
Storage Temperature	-40 ℃ ~ 70 ℃
Operating Humidity	10%~90% RH no condensing
Storage Humidity	5%~90% RH no condensing
Dimensions:	232mm * 142mm * 45mm
Standards and Protocols Supported	IEEE802.3 , IEEE802.3u , IEEE802.3x, IEEE802.1Q
Distance	Dual Fiber MM : 2km Dual Fiber SM : 20/40/60/80/ 100km Single Fiber SM : 20/40/60/ 80km
