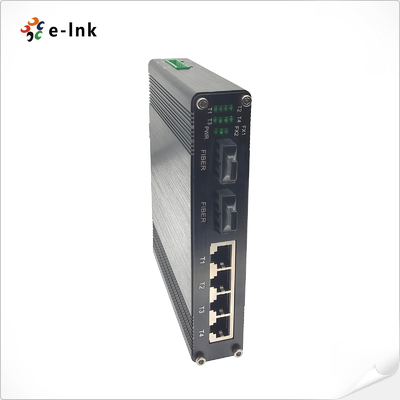

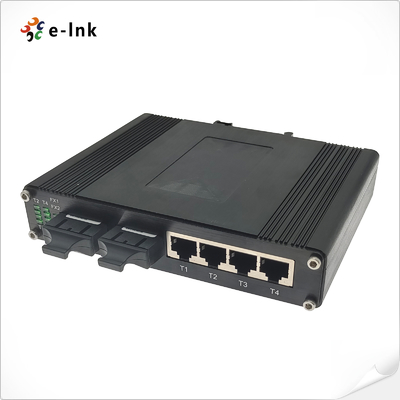

Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail

Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail
Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail

Gambar besar :  Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: E-link
Sertifikasi: CE, RoHS, FCC, ISO9001
Nomor model: LNK-IMC204GP
Dokumen: E-link LNK-IMC204GP Series ....1.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: $90-$129
Kemasan rincian: Paket Ekspor Standar Sakelar Serat Optik
Waktu pengiriman: 5-12 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram, PayPal, kartu kredit
Menyediakan kemampuan: 1000pcs/bulan
Detil Deskripsi produk
Ports: 4 × RJ45 (10/100/1000Base-T POE+), 2 × 100/1000Base-X (SFP/SC/FC/ST) Poe: IEEE802.3AF/AT, 30W maks per port, total 132W maks
Input daya: 48 ~ 57VDC, blok terminal 6-pin yang berlebihan Suhu operasi: -40 ° C ~ 80 ° C.
Dimensi / berat: 150 × 115 × 30 mm / 0,5 kg Selubung: Aluminium, tanpa fan
Menyoroti:

Industrial Gigabit PoE+ switch with SFP

,

DIN-Rail fiber optic switch

,

4-port PoE+ switch for harsh environments

Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail

Overview

The LNK-IMC204GP Series is a ruggedized 6-port industrial PoE switch designed for

mission-critical applications. Featuring 4 Gigabit PoE+ RJ45 ports and 2 dual-speed fiber

uplinks (100/1000Base-X), it ensures reliable high-bandwidth connectivity for IP cameras,

wireless APs, and remote devices. With redundant power inputs, wide temperature tolerance

(-40°C~80°C), and hardened aluminum housing, this switch is ideal for harsh industrial,

surveillance, and outdoor networking environments.

Features

4× PoE+ Gigabit Ports delivering up to 30W per port (IEEE802.3at)

2× 100/1000Base-X fiber uplinks with SFP/SC/FC/ST options

High reliability with redundant 48~57VDC power input & overload protection

Rugged design: -40°C to 80°C operating range, fanless aluminum housing

Supports jumbo frames (9K Bytes) and 1M buffer for smooth data forwarding

DIN-Rail & Wall-mount options for flexible industrial deployment

MTBF >200,000 hours, ensuring long-term stable operation

Compliant with EMC/EMI industrial standards (EN, IEC certifications)

Technical Indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1M bits

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes

Address Table Size:

2048 MAC Addresses

Interface

Connector:

4 x RJ45

Optical Port:

2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

132W Max. (PoE in use)

5W Max. (PoE not in use)

Standard:

IEEE802.3af/at

PoE:

Port:

RJ45 Port 1 ~ Port 4

Max. Power per Port:

30W Max per port

Power Pin Assignment

1/2(+), 3/6(-) or 4/5(+), 7/8(-)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

PoE:

Per Port Status

Ethernet (Per Port):

Link/Activity

SFP:

FX1, FX2

Dimensions (WxDxH):

150 x 115 x 30 mm

Weight:

0.5Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC204GP

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+)  + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m

LNK-IMC204GP-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+)  + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC204GPS-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+)  + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC204GPF-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC204GP-SFP

Industrial 4-port 10/100/1000BASE-T (4-port PoE+) + 2-port 100/1000BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.

Application
