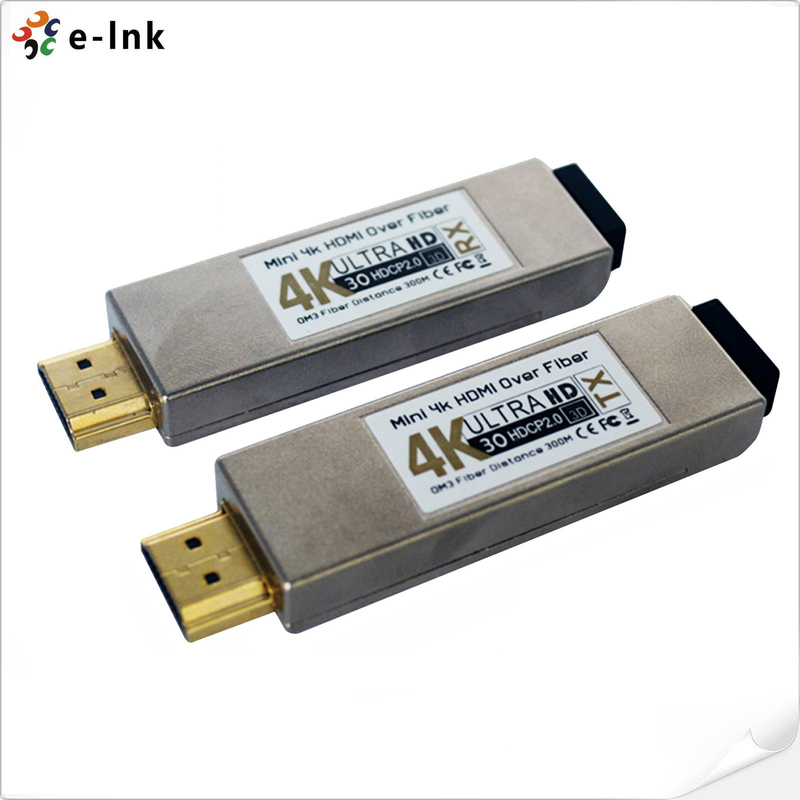

Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input

Gambar besar : Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-106M

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1PCS
Harga:	negotiable
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Kontak

Detil Deskripsi produk

Input Signals:	HDMI	Dynamic EDID:	Plug & Play, no need to learn
Fiber Connector:	Double LC Receptacle	Safety Approvals:	CE, RoHS, FCC
Dimension (WxDxH):	3.15 x 0.79 x 0.35 in (80x20x9mm)	Weight:	0.1 kg / 0.22 lb
Menyoroti:	Double Power Supply HDMI Optical Transceiver , Micro HDMI Optical Transceiver , 4K HDMI Optical Transceiver

Mini 4K HDMI Optical Transceiver

Overview

Our high-performance HDMI optical transceiver system delivers uncompressed 4Kx2K (HDMI 1.4a)

signals over multimode fiber with zero quality loss. The solution consists of matched transmitter (Tx)

and receiver (Rx) units that convert HDMI to optical signals at 850nm wavelength, supporting

transmission distances up to 300 meters.

Key Features:
- True 4K UHD transmission @ 3840x2160 resolution
- 10Gb/s high-speed serial data conversion
- Dual-fiber multimode transmission (850nm)
- RoHS compliant (meets EU/China standards)
- Superior EMI/RFI immunity

Technical Advantages:
• Lossless, uncompressed signal quality
• Plug-and-play operation
• Compact, durable enclosure

Ideal Applications:
✓ Digital signage & video walls
✓ Professional AV systems
✓ Conference room installations
✓ Home theater extensions

This reliable fiber optic solution eliminates signal degradation over long distances while maintaining

perfect 4K image quality, making it perfect for demanding professional and residential AV installations.

Features

HDMI 1.4a and HCCP1.2 Support

Supports All Modes up to 4K*2K@30Hz Resolution

Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)

Video over (2) multimode fibers

Hot-Pluggable, EMI/RFI Resistant

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Fiber Connector	Double LC Receptacle
Transmission Distance	Multi Mode, up to 984ft (300M)
Operating Temperature	0°C to + 50°C
Storage Temperature	-20°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC

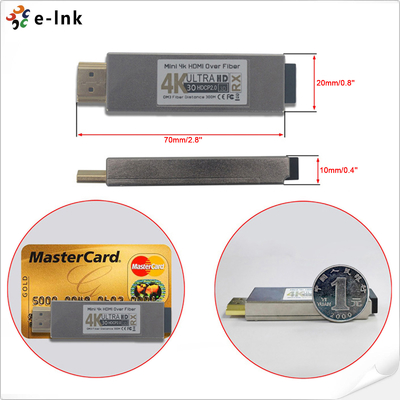

Dimension (WxDxH)	3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Power Supply	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

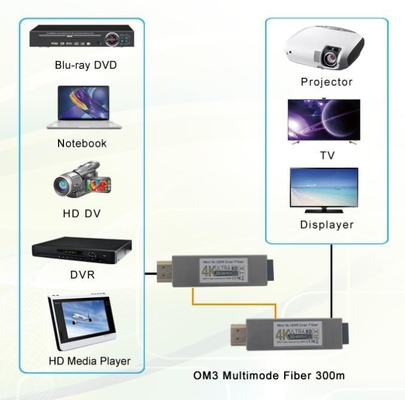

Application

Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input 0

Ordering Information

Item	Description

LNK-106M	Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
