1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender

Gambar besar : 1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender

Detail produk:

Place of Origin:	China
Nama merek:	E-link
Sertifikasi:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-SDI-8V

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Pair
Harga:	negotiable
Packaging Details:	SDI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Kontak

Detil Deskripsi produk

Product Name:	SDI To Fiber Optic Converter	Power adaptor:	AC 110~220V
Power consumption:	<15W	Dimension:	483 x 270 x 45mm (19inch 1U)
Wavelength:	1310nm/1550nm	Operating Temperature:	-20℃～+70℃

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender

Overview

LNK-SDI-8V Series is a high-performance 8-channel SD/HD/3G-SDI fiber optic transmission system,

capable of transmitting broadcast-quality video and CD-level audio over a single fiber cable. Each

unit includes a transmitter and receiver, supporting 1080P 3G-SDI signals with a local loop output

for real-time monitoring.

Key features include:
- 8-channel SD/HD/3G-SDI video transmission
- 1-channel reverse RS-485 data communication
- Single-fiber solution for efficient cabling
- High-quality video (up to 3G-SDI) and CD-grade audio

Ideal for broadcast, live production, and professional AV systems, this converter ensures reliable,

long-distance signal transmission with minimal latency.

Features

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Long transmission capability at least 10 km (6.2miles), up to 120 km

► super optic dynamic range and free of adjustment prior to use

► Real-time status LED indicators for troubleshooting and monitoring

► Directly compatible with 3G-SDI camera systems and support Reverse RS-485 data protocols

► Industry level ultra-broad temperature range, adaptable to various environments

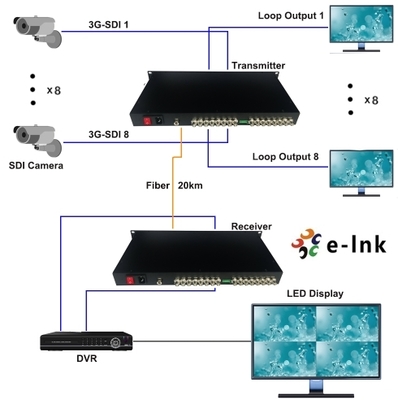

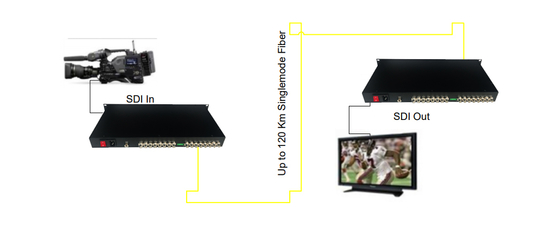

Application

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender 0

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
	1080P 23.98/24/30/50/60
Video SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Data
Physical interface	Industrial standard screw terminal
Data type	Reverse RS485
Frequency/Rate support	Max. 57600bps for RS485
BER	<10ˉ⁹
Electrical
Power adaptor	AC 110~220V
Power consumption	<15W
LED Indicator
SDI A/B/C/D/E/F/G/H	SDI video
PWR	Power Supply
Mechanical
Dimensions (LxWxH)	19inch 1U (483 x 220 x 44.45mm )
Weight	7KG/pair
Casing	Aluminum Case
Mounting Options	Rackmount
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Ordering Information

Model	Description
LNK-SDI-8V	19" 1U 8-Ch HD-SDI Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-SDI-8V1R	19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-SDI-8V1A	19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-8V	19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-8V1R	19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-8V1A	19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
