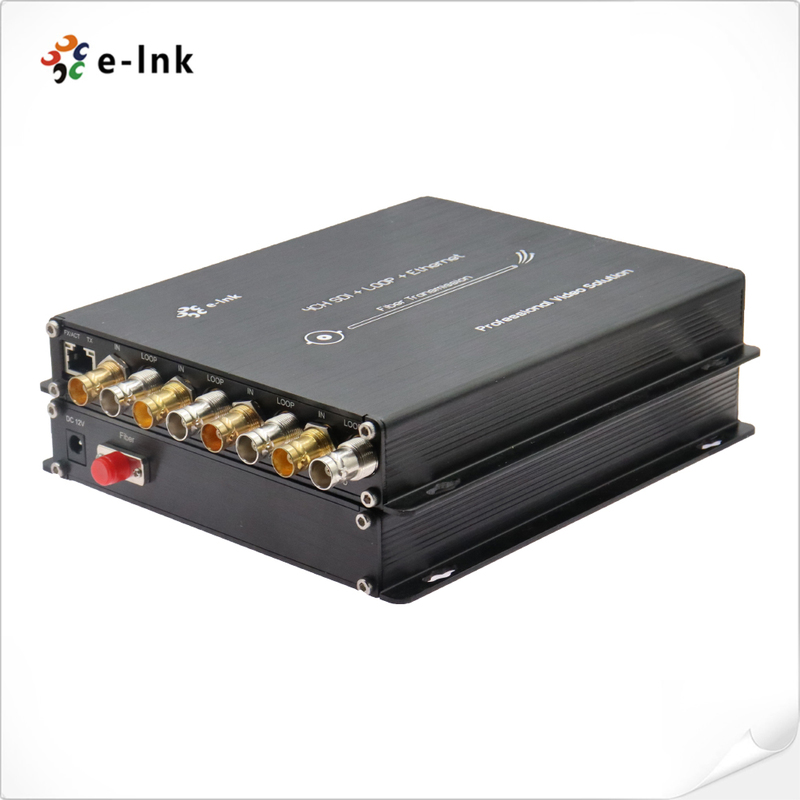

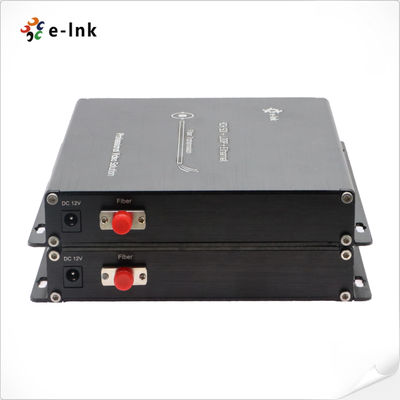

4-Ch 3G-SDI Fiber Optic Extender with Loop-Out Gigabit Ethernet

4-Ch 3G-SDI Fiber Optic Extender with Loop-Out Gigabit Ethernet
4-Ch 3G-SDI Fiber Optic Extender with Loop-Out Gigabit Ethernet 4-Ch 3G-SDI Fiber Optic Extender with Loop-Out Gigabit Ethernet

Gambar besar :  4-Ch 3G-SDI Fiber Optic Extender with Loop-Out Gigabit Ethernet

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: E-link
Sertifikasi: ISO9001, CE, RoHS, FCC
Nomor model: LNK-3GSDI-4V1N
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pasang
Harga: $549-$800
Kemasan rincian: SDI Over Fiber Optic Extender Standard Export Paket
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, Moneygram, PayPal, Kartu Kredit
Menyediakan kemampuan: 1000pcs/bulan
Detil Deskripsi produk
Input video: 4x 3G/HD/SD-SDI, SMPTE 424M/292M/259M Output video: Loop-out SDI 4x, nominal 800mv
Laju data: 270Mbps-3Gbps, DVB-ASI/SSI Antarmuka optik: 1x Mode Tunggal, FC/UPC (LC/SC/ST Opsional)
Jarak transmisi: Standar 20km (40/60/80km Opsional) Ethernet: 10/100/1000Mbps, RJ45

4-Ch 3G-SDI Fiber Optic Extender with Loop-Out Gigabit Ethernet

Overview

The LNK-3GSDI-4V1N series delivers 4-channel 3G/HD-SDI video with loop-out and Gigabit Ethernet

over a single optical fiber. Designed for professional broadcasting, surveillance, and industrial monitoring,

it ensures uncompressed broadcast-quality video transmission up to 20km. With automatic reclocking,

robust fiber optics, and a wide working temperature range, it guarantees reliable, real-time performance

in demanding environments.

Features

Transmits 4x 3G/HD-SDI signals over one single-mode fiber

Integrated 1000M Ethernet for video and data applications

Supports SMPTE 424M, 292M, 259M and DVB-ASI formats

Automatic reclocking & cable equalization for stable signals

4-channel SDI loop-out for local monitoring flexibility

Uncompressed, full-digital broadcast-grade video quality

Transmission distance up to 20km (longer options available)

Rugged design, -10℃ to +55℃ operation, FCC & EU EMC compliant

Technical Indexes



SDI Input SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom
270Mbit/s - 1.48Gbit/s – 3Gbit/s
Input number: 4
Reflection loss: >15DB
Equilibrium: 0-150m @3Gb/s
Connector: BNC
Optics Channel: 1
Type: single-mode
Transmission distance: 20km (Other distance Optional)
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/UPC (SC, LC, ST optional)
SDI Output Output number:4
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
Ethernet 10/100/1000Mbps
Power and environmental indication Operating temperature: -10℃~+55℃
Power Input: 1A@12VDC
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours
SDI video format supports

625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94;

1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

















































Ordering Information



LNK-HDSDI-4V1N 4-Ch HD-SDI Video with Loop output + 1 1000M Ethernet, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-4V1N 4-Ch 3G-SDI Video with Loop output + 1 1000M Ethernet , SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs









Application
